FAW 10m3 to 12m3 160hp Vacuum Sewage Fecal Suction Truck

Vacuum sewage truck (also called septic suction truck ,sewage vacuum tank truck,sewer cleaning truck ,sewage tanker ,sewer truck,cesspit emptier,gully emptier,vacuum truck,gully emptier,waste vacuum tanker,vacuum tanker sewage truck ) is used to collect ,transport and discharge liquid such as dirty water,sludge ,septic,crude oil,and solid stuff such as stones,bricks as well.It is suitable for cleaning the sewer,cesspit,cesspool,gully,etc.It is widely used in environment and sanitation filed.

Description FEEDBACK

FAW 10m3 to 12m3 160hp Vacuum Sewage Fecal Suction Truck



Vacuum sewage truck (also called septic suction truck ,sewage vacuum tank truck,sewer cleaning truck ,sewage tanker ,sewer truck,cesspit emptier,gully emptier,vacuum truck,gully emptier,waste vacuum tanker,vacuum tanker sewage truck ) is used to collect ,transport and discharge liquid such as dirty water,sludge ,septic,crude oil,and solid stuff such as stones,bricks as well.It is suitable for cleaning the sewer,cesspit,cesspool,gully,etc.It is widely used in environment and sanitation filed.

 FAW 10m3 to 12m3 160hp Vacuum Sewage Fecal Suction Truck Technical date:

Cab

FAW single row cab, with power steering. Electronic flameout,without a/c

Driving Type

4*2

Max Speed (km/h)

99

Overall dimension(mm)

7010*2480*3100

GVW( kg)

8695

Wheelbase(mm)

4500

Tire

8.50R16 (6+1)

Engine

Fuel Type

Diesel fuel

Type

Water-cooled four-stroke,, direct injection, turbocharged

Exhaust(ml)

 5900ml

Horse power

 120hp

Volume of tank

 6000L

Color

Painted in the corporation‘s colours with logo on both front doors as specified by the client

Material of tanker

6mm Carbon stell

Special function

Suction height

≥5 (m)

Suction time

250(S)

Maximum Inclination Angle

≥45°

maximum vacuum

≥11 MPa

Lifting time

≤45 S

the Cover opening Angle

≥75°

The cover opening time

≤25 S

Suction pipe

3m length and 100 mm in diameter



We also could supply more models with different tanker volume. And the truck chassis could be used DONGFENG, SINOTRUK and SHACMAN. The driving type have 4x2, 4x4 and 6x2, 6x4.

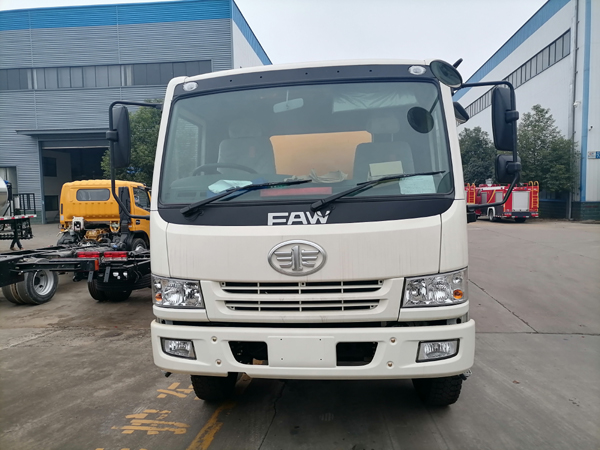

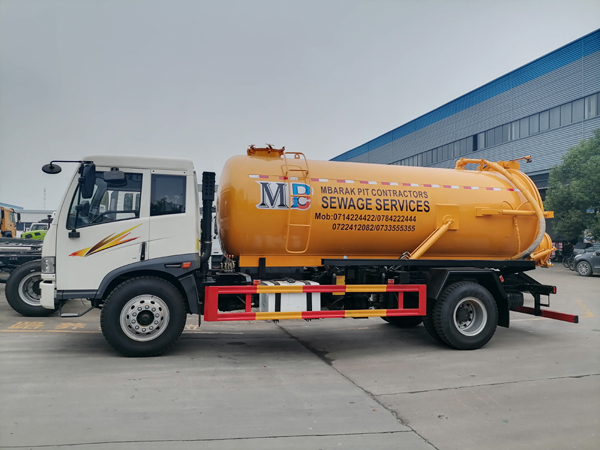

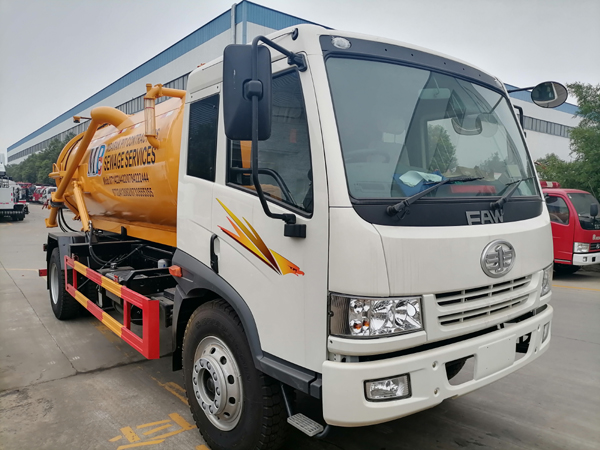

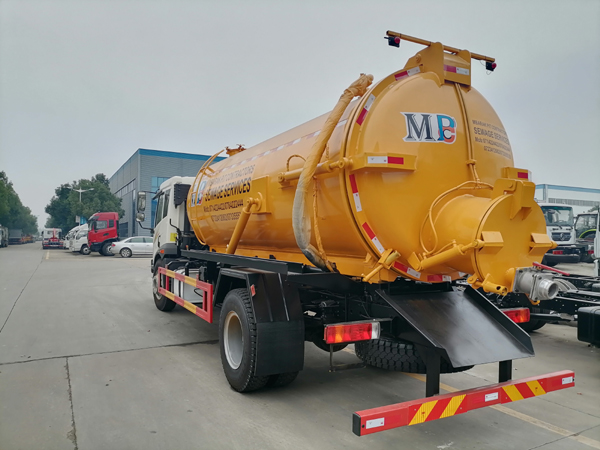

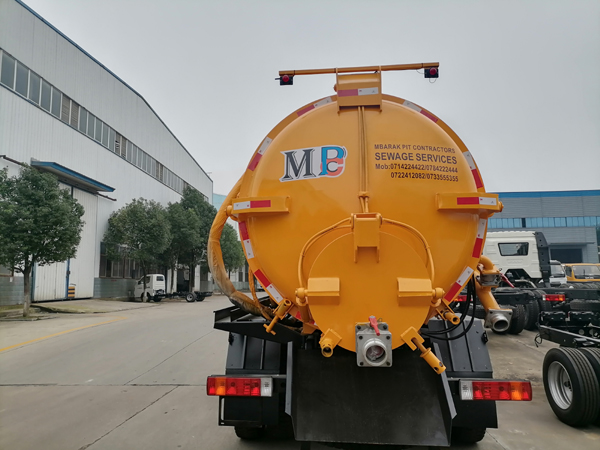

FAW 10m3 to 12m3 160hp Vacuum Sewage Fecal Suction Truck Technical picture:
