Hot Sales Dongfeng 5000liters to 7000liters Fecal Suction Truck
Suction Truck also called China fecal suction truck, Dongfeng fecal suction truck, fecal suction truck, Septic tank truck, Septic Tanker, Sewage water suction truck, vacuum suction truck, wastewater suction truck is used to collect, transport and discharge dirty water , sludge , septic , etc . such liquid stuff , It is suitable for cleaning the septic tank , cesspit , cesspool , gully , etc . It is widely used in environment and sanitation field .
Description
Get quotation

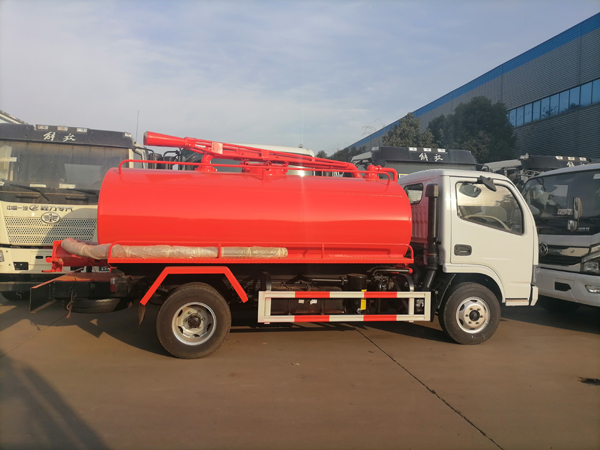

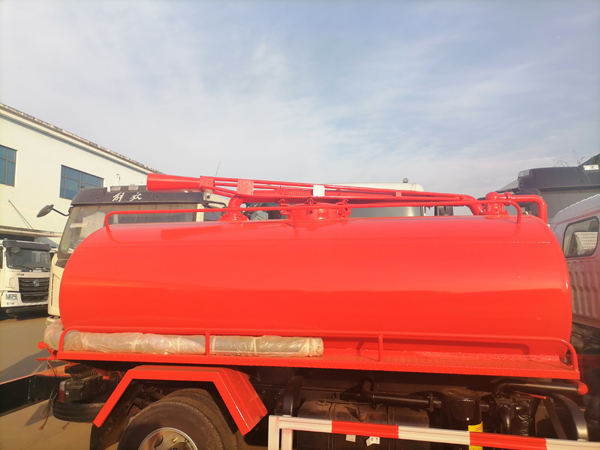

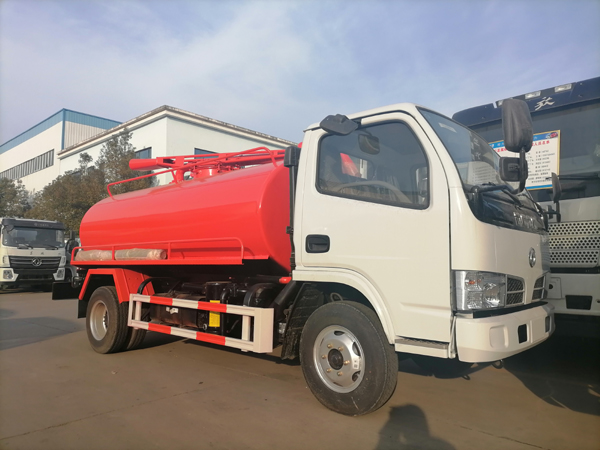

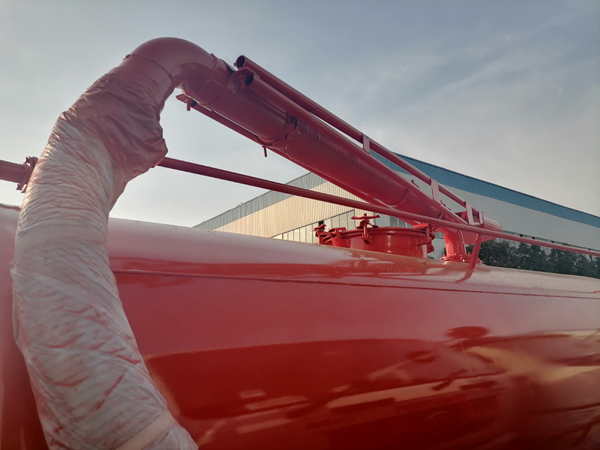

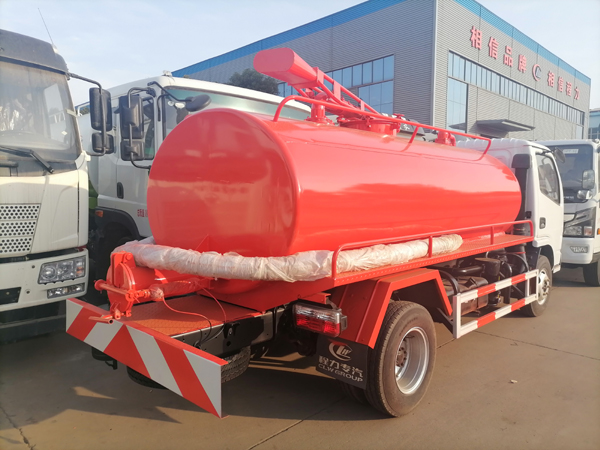

Hot Sales Dongfeng 5000Liters to 7000Liters Fecal Suction Truck
Suction Truck also called China fecal suction truck, Dongfeng fecal suction truck, fecal suction truck, Septic tank truck, Septic Tanker, Sewage water suction truck, vacuum suction truck, wastewater suction truck is used to collect, transport and discharge dirty water , sludge , septic , etc . such liquid stuff , It is suitable for cleaning the septic tank , cesspit , cesspool , gully , etc . It is widely used in environment and sanitation field .
Truck Datesheet:
| Item | unit | parameter | |
| Vehicle model | CLW5081GXW Fecal Suction Truck | ||
| Chassis model | EQ1081TJA | ||
| Overall dimensions | mm | 5970×2140×2550 | |
| Fact cubage | L | 4000-5000 | |
| GVW | kg | Appro×7800 | |
| Rated loading capacity | Appro×2980 | ||
| Mass in working order | Appro×4625 | ||
| Body internal dimensions | mm | 3080×1700×1050 | |
| Wheel base | 3100 | ||
| F/R track base | 1750/1586 | ||
| Approach/departure angle | ° | 18/14 | |
| Exhaust/hp | ml/kw | 3856/88 | |
| Max speed | km/h | 90 | |
| Tire specification | 7.00-16,7.50-16 | Engine type | CY4102BZLQ |
| Traction system | 4×2 | transmission | 5-speed with over drive |
| Number of axles | 2 | Electric system | 24v |
| Operation control system | Electrically hydraulic control | Allowable passengers in cab | 3 |
| Equipment | Equipped with vacuum pump(rating rotate speed=1400r/m,min rotate speed>800r/m, max suction lift>6m, vacuum>500mmHg, clockwise) | ||
| Equipped with power take off, transmission shaft,fecal tank, pipe network, fecal pipe for observing and cleanout equipment | |||
| Time for full sucktion<5min | |||
| Engine | ChaoYang,diesel engine | ||
| Production cycle | 45 days |
||
