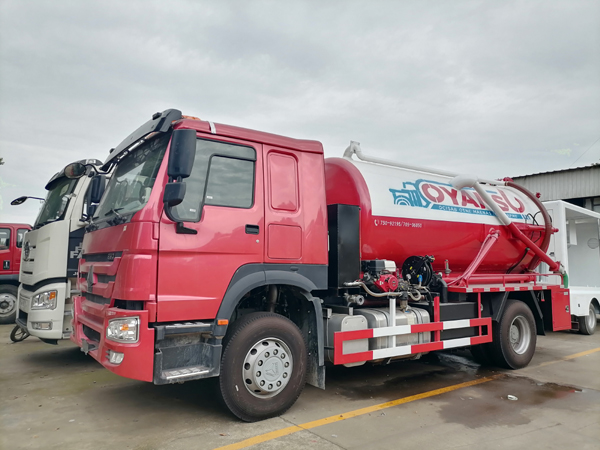

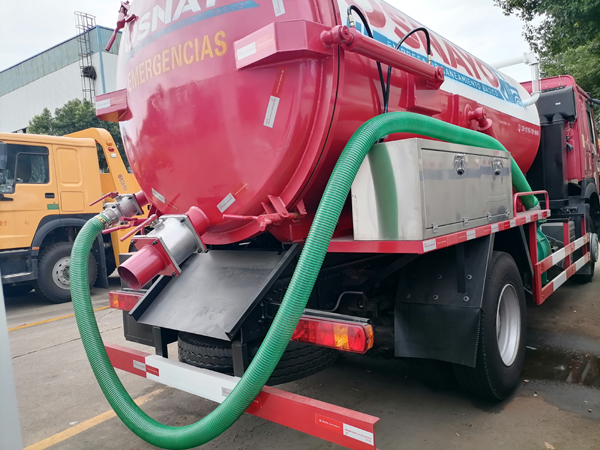

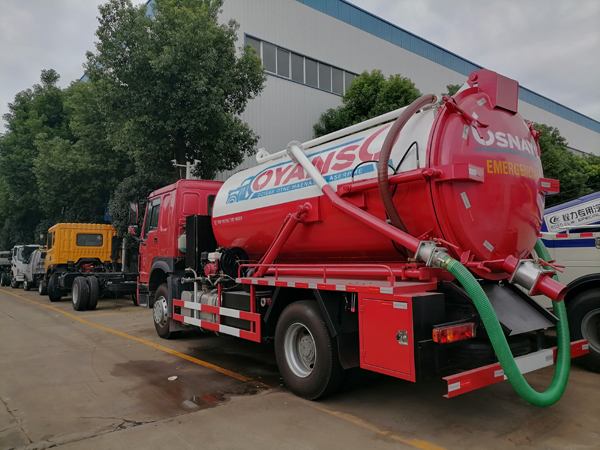

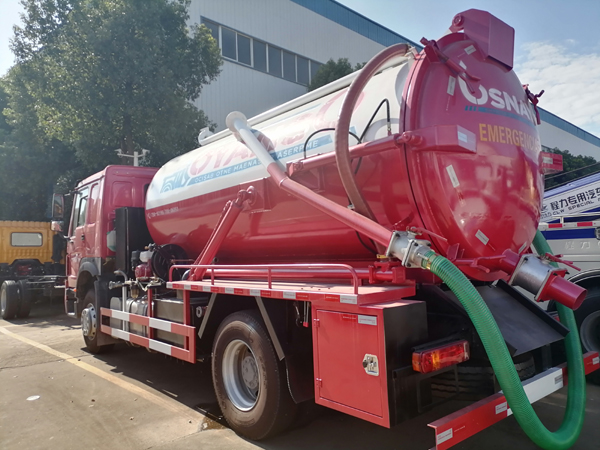

Sinotruck HOWO 2020 New Model 6 Tyre 10000 Liters Vacuum Sewage Suction Septic Tanker Truck With Self Dumping System

A sewage suction truck is a tank truck with a heavy duty vacuum designed to pneumatically load fecal, solids, liquids, sludge, crude oil or slurry through suction lines in diameter with 3" being the norm. We provide various sizes of sewage suction trucks with capacities ranging from 2cbm to 18cbm.

Description FEEDBACK

Sinotruck HOWO 2020 New Model 6 Tyre 10000 Liters Vacuum Sewage Suction Septic Tanker Truck With Self Dumping System

 A sewage suction truck is a tank truck with a heavy duty vacuum designed to pneumatically load fecal, solids, liquids, sludge, crude oil or slurry through suction lines in diameter with 3" being the norm. We provide various sizes of sewage suction trucks with capacities ranging from 2cbm to 18cbm.

The sewage suction tank truck is also called sewage truck,vacuum pump sewage truck

sewer vacuum trucksewer tanker truck,vacuum sewage suction trucksewage suction tanker truck, etc. It mainly used for for suction,transportation and discharge of sewage from septic tank and sludge from drains.Widely used by municipal environment and

sanitation department and residential management.As a professional sewage truck manufacturer in China, the sewage tanker truck capacity is from 3000 liter to 16000 liters.The septic tanker truck is with self-suction and self-unloding function. The tank can be lifted by hydraulic cylinder to 45° and the rear door of the tank can also be open by hydraulic.
So the sewage can be discharged from the tank completely. This is also convenient for you to maintenance and clean the tank.
Overfill system with music horn is equipped to prevent the vacuum pump damage from sewage water into vacuum pump when
the tank is full.

Super power of vacuum pump, seamless die casted sheel cover, designing for container  with high ability of pressure-resistance,double hydraulic jack system, more strength then cesspit emptier.


The suction depth of our vacuum tanker is more than 7 meter and sewage truck capacity is from 10000L to 16000 liters sewage truck is with double famous Weilong pump.It is high efficiency and manpower saved.


Sewage truck Basic Equipment

 Imported vacuum pump, power-take-off, hydraulic cylinders, control valves , pressure gauge,

 water gas separator , oil water separator, level inspection window, suction hose,pipeline system,etc.



Chengli sewage suction truck advantages

 1.Tank can be lifted hydraulically to 40 to 45 degree.Rear door can be opened&closed

 hydraulically. With full opening design, discharge can be very quick&complete.

 2.Overfill system with music horn is equipped to prevent the vacuum pump damage from sewage water into vacuum pump when the tank is full.

 3.Super power of vacuum pump, seamless die casted sheel cover, designing for container  with high ability of pressure-resistance,double hydraulic jack system, morestrength then cesspit emptier.

Items

Descriptions

Specifications and Types

General

Truck Name

Vacuum Sewer truck

Drive Type

4*4

Gross Vehicle Weight(kg)

16000

Loading Capacity (kg)

10000

Overall Dimensions L*W*H(mm)

8480×2500×3250

Engine

Engine Model

WD615.97

Engine Brand

SINOTRUK

Fuel Type

Diesel

Power

290HP

Emission Standard

Euro II

Displacement(ml)

9726

Engine Type

6 cylinders,turbo-charged diesel engine,inter-cooling,high common rail

Chassis

Chassis Brand

HOWO

Front/Rear Axle

STR/ST16

Tire No.

6

Tire Specification

12.00R20 Steel tire

Wheelbase (mm) ;

4600

Axle No.

2

Gear Box

HW15710,10 speed forward with 2 reverse

Brake

Air brake

Steering Wheel

Left hand drive with power-assisted

Air conditional

Suitable for tropical climate

Tank and Pump

Sewage Tank Volume(L)

8000

Tank Material

5mm carbon steel

Tank Shape

Cylindrical

Suction Depth

≥6m

Vacuum pump

Double Weilong pump
