Product |

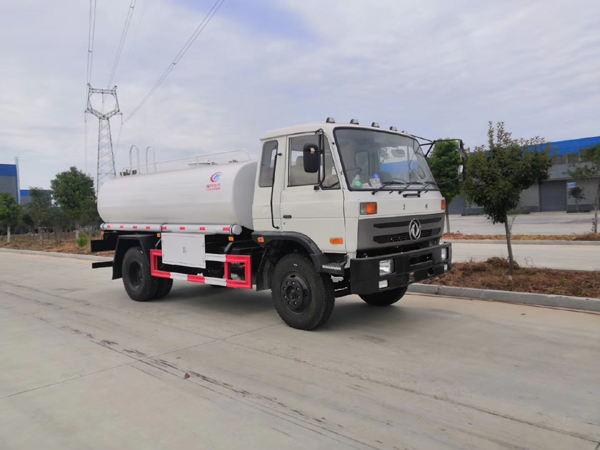

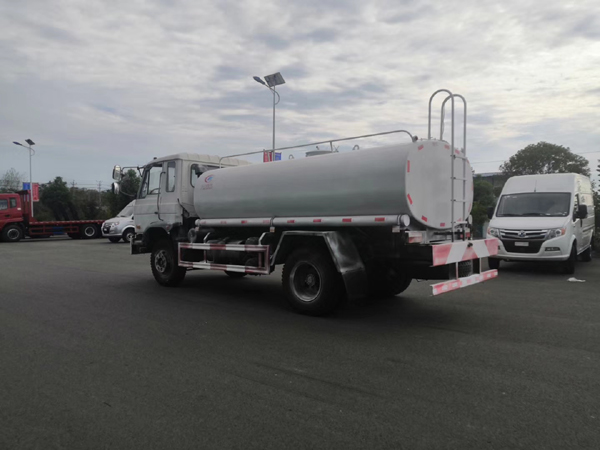

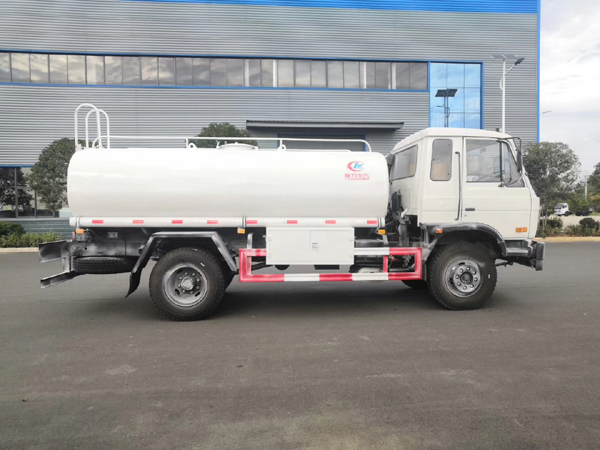

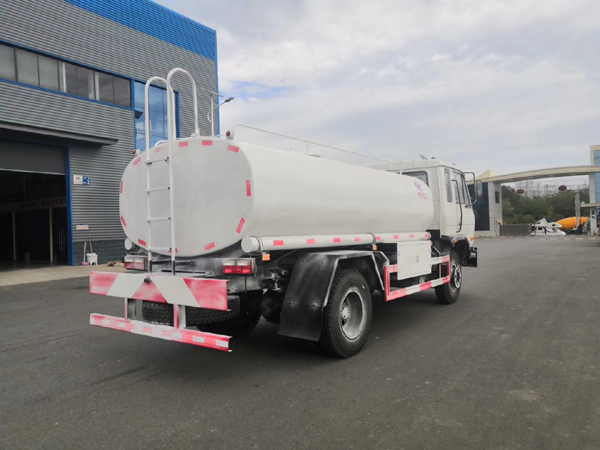

Dongfeng 10Tons Drinking Water Trucks for Fresh Drinking Water |
|
Chassis type |
EQ1141KJ |
|
Cubage |
12-15. |
|
Parameters |
Overall dimension (mm) |
8020×2470×3050 |
GVW(kg) |
16000 |
|
Kerb Mass(kg) |
7005 |
|
Fuel Type |
diesel |
|
Fuel Consumption/100 km |
|
|
Tanker material |
Stainless steel 304-2B Food grade steel |
|
Engine |
Type |
B190 33 |
Displacement/Power(kw) |
5900cc/140kw(190hp) |
|
Manufacturer |
Dongfeng Cummins Engine Co.,Ltd |
|
Chassis |
Drive Type |
4×2 |
Wheelbase(mm) |
4500 |
|
Front axle |
5 Ton |
|
Rear axle |
10 Ton |
|
Tire Type |
10.00-20 |
|
Air-condition |
Choose to fix |
|

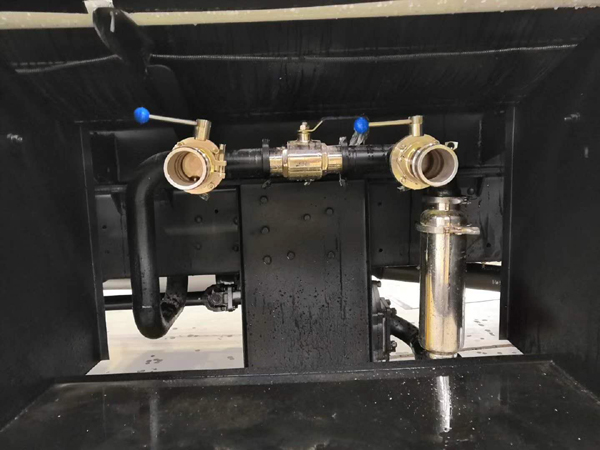

Watering system |
pump |
Self-priming centrifugal pump |
Special performance parameters |
Watering width |
≥15 |
Watering gun range |
≥28 |
|
Vertical suction range |
≥7 |
|
Watering pressure |
250-450KPa |
|
Watering |
0.2-2l/ |
|
Pump lift |
90m |
|
Suction time |
<5min |
|
Flow rate |
60 m3/h |
