2ton JMC Water Fire Fighting Truck Euro3, vehicle engine must be running state, must not blindly flameout, delay aircraft. When fire engines begin to spray water, should gradually increase the water pressure, avoid sudden booster for nozzle reaction and the water hammer caused combat casualties or hose blasting, cause fire fighting and rescue work carried out not smoothly.
2ton Jmc Water Fire Fighting Truck
2ton JMC Water Fire Fighting Truck Euro3, vehicle engine must be running state, must not blindly flameout, delay aircraft. When fire engines begin to spray water, should gradually increase the water pressure, avoid sudden booster for nozzle reaction and the water hammer caused combat casualties or hose blasting, cause fire fighting and rescue work carried out not smoothly.
|
Item |
Specifications |
Item |
Specifications |
|
Truck |
|||
|
Name |
2ton JMC Water Fire Fighting Truck |
||
|
Model |
CLW5060GXFSG20J |
Gross Weight |
3500kg |
|
Overall dimensions |
6140×1885×2660mm |
Curb Weight |
2035kg |
|
Wheelbase |
3815mm |
Approach/departure angle |
27° |
|
Front Track |
1385mm |
Departure Angle |
13° |
|
Rear Track |
1425mm |
Front Overhang |
1015mm |
|
Number of axles |
2 |
Rear Overhang |
1765mm |
|
Max speed |
95 km/h |
Number of Tyres |
6 |
|
Traction system |
4×2 |
Tyre |
7.00-16LT |
|
Transmission |
JMC, manual |
Allowable Cab Passengers |
2+3 |
|
Chassis |
|||
|
Model |
JX1060TSG23 |
Leaf Spring |
7/5+5 |
|
Engine (Motor) |
|||
|
Brand |
JMC |
Type |
Diesel |
|
Model |
JX493ZLQ3 |
Displacement |
2.7L |
|
Horse power |
85 |
Emission standard |
Euro 3 |
|
Equipment |
|||
|
Water Tanker |
2ton |
Tank Material |
stainless steel |
|
Flow |
20L/S |
Low Pressure Pump |
CB10/20 |
|
Pressure |
1.0MPa |
Fire distance (water) |
≥60m |
|
Remarks |
|||
|
Production cycle |
20-35 working days |
||
|
Warranty |
12 months |
||

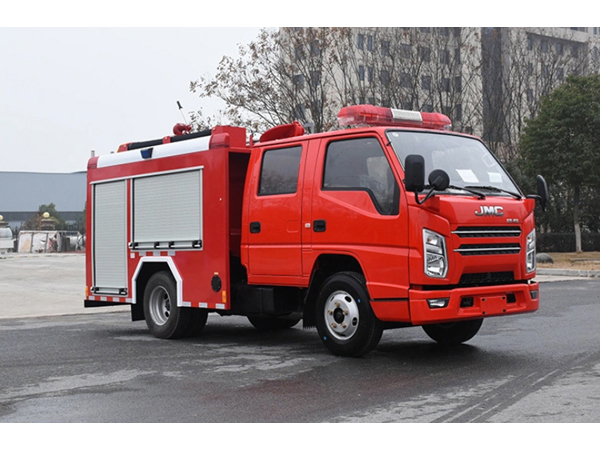

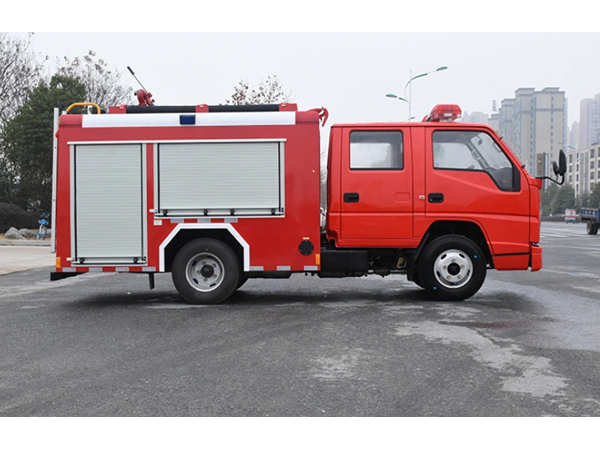

2ton Jmc Water Fire Fighting Truck Truck picture:
.jpg)
2ton Jmc Water Fire Fighting Truck technical date:
(1).jpg)
Working Video
