ISUZU GIGA 12CBM water foam fire truck export to Philippines, ISUZU new model GIGA Left Hand Drive model 6x4 chassis, ZF 16-shift manual gearbox, ISUZU

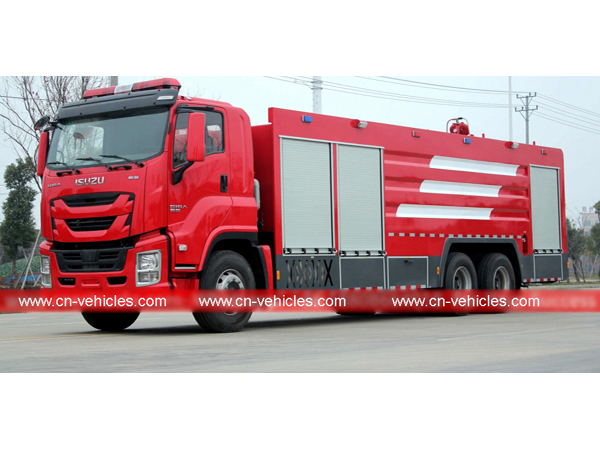

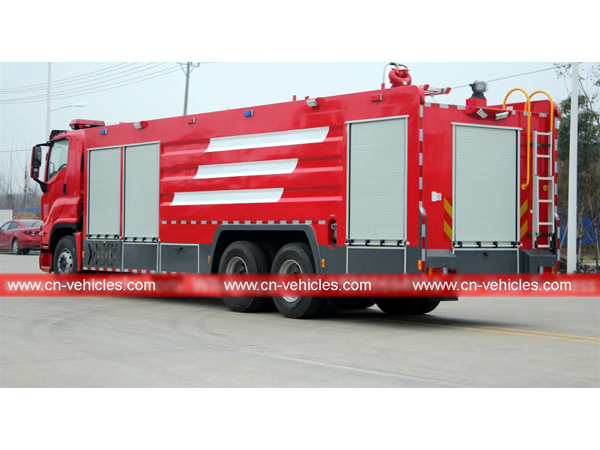

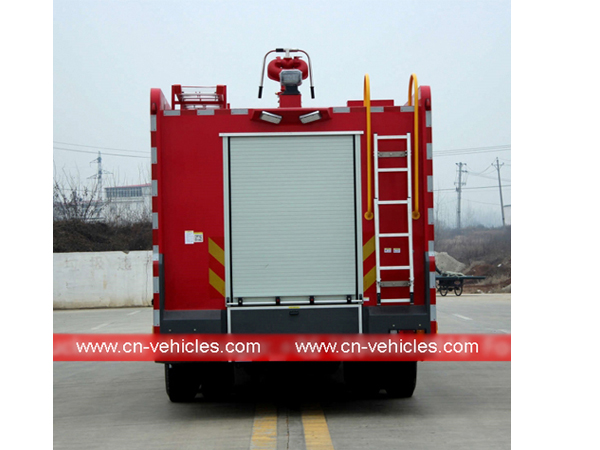

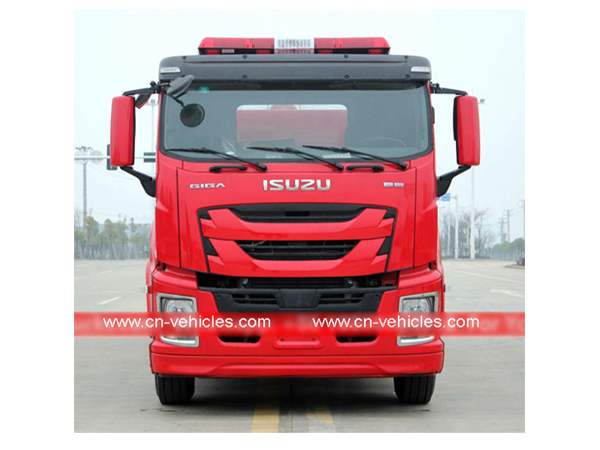

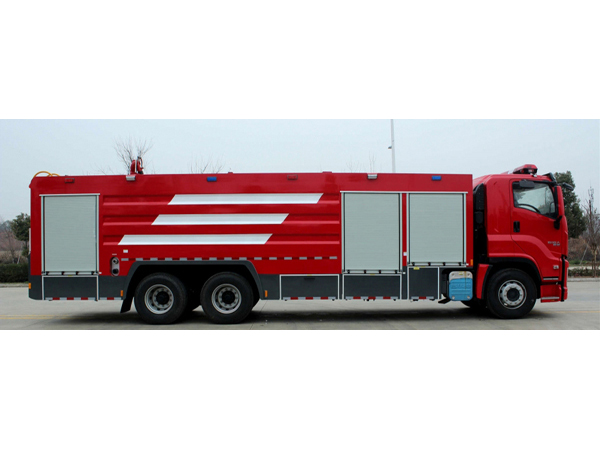

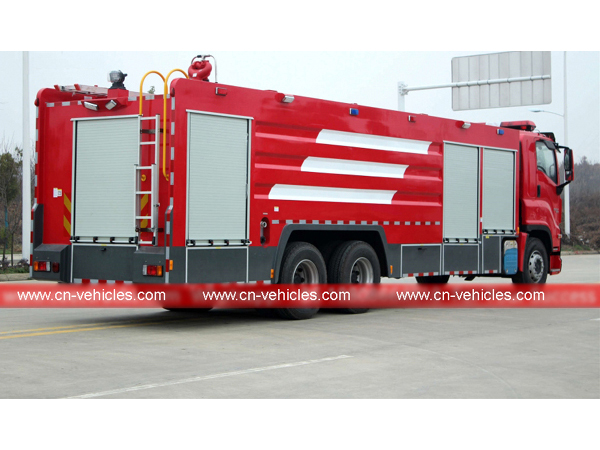

ISUZU GIGA Fire Truck
ISUZU GIGA Fire Truck Specifications:
|
Isuzu GIGA Fire fighting Truck (12,000L) |
||
|
General |
Vehicle Brand |
Chengli TRUCKS |
|
Chassis Brand |
ISUZU GIGA |
|
|
Overall Dimension |
11300 * 2500 * 3400 mm |
|
|
GVW / Kerb Weight |
25,000kg / 12,200kg |
|
|
Cab |
Cab Capacity |
5 persons allowed |
|
Air Conditioner |
Heating/cooling air conditioner |
|
|
Engine |
Fuel Type |
Diesel |
|
Engine Brand |
ISUZU |
|
|
Power |
380 HP (280 KW) |
|
|
Displacement |
9839 ml |
|
|
Emission Standard |
Euro 4 / 5 |
|
|
Chassis |
Drive Type |
6X4, (left hand drive) |
|
Transmission |
ZF Manual 16-shift speed levers with 1 reverse |
|
|
Wheelbase/No. of axle |
4565+1370 mm / 3 |
|
|
Tire Specification |
11.00-20 |
|
|
Tire Number |
10 tires and 1 spare tire |
|
|
Max Speed |
90 km/h |
|
|
Paint |
Metallic paint |
|
|
Superstructure |
Tank Capacity |
8,000L water+4,000L foam |
|
Tanker Material |
Carbon Steel |
|
|
Fire pump |
CB10/60, 60L/S |
|
|
Fire pump location |
Center or rear |
|
|
Fire monitor |
Water jet distance: ≥45m Foam jet distance: ≥40m |
|
|
Electronic alarm |
1.2 m long |
|
|
Control panel |
English or Your language |
|
|
All standard accessories: Fire hose, filter, coupling, wrench, water nozzle, basic tool kit, English manual…… |
||
|
Optional |
** Back alarm and Camera can be equipped. ** Standard carbon steel, stainless steel optional. ** USA or Germany fire pump can be optional |
|
