3 Axles 45ton 50cbm Mobile Fuel Oil Tank Trailer
Axle:Famous Brand Axle Support, Trailer Durable and High Truck Attendance Rate; Tire: Good Quality Tire support Trailer Running Safety&Smoothly; King Pin: JOST Detachable Type support Durable and Easy Replace.
Description FEEDBACK

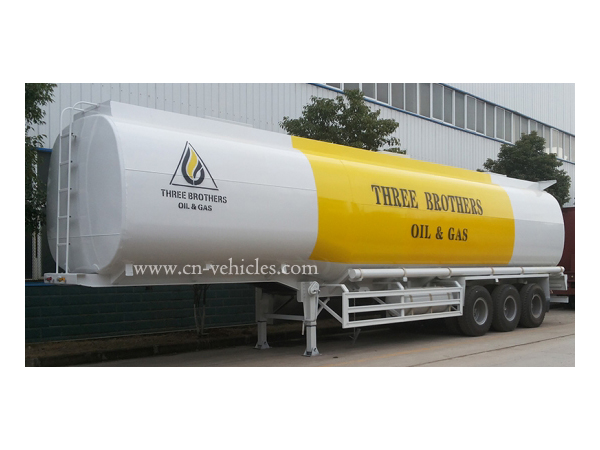

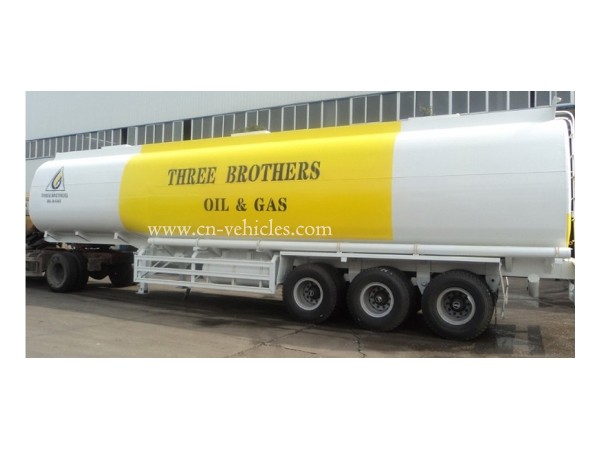

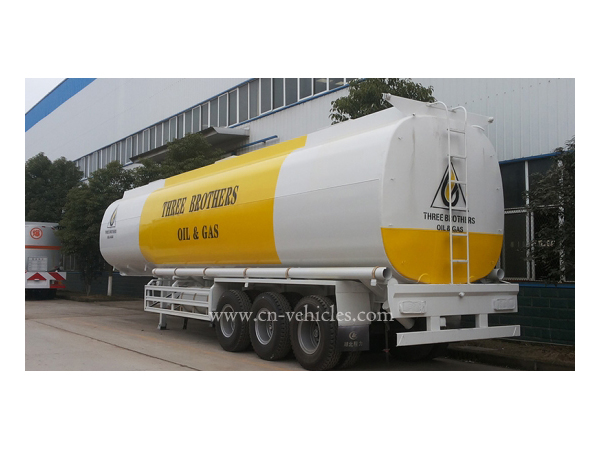

3 Axles 45ton 50cbm Mobile Fuel Oil Tank Trailer
Axle:Famous Brand Axle Support, Trailer Durable and High Truck Attendance Rate; Tire: Good Quality Tire support Trailer Running Safety&Smoothly; King Pin: JOST Detachable Type support Durable and Easy Replace.

Oil Tank Semi Trailer is a tanker with a trailing head connected to the trailing section. Compared with the conventional single tanker tanker tanker tanker, oil transport can effectively improve the transportation efficiency. In the same tonnage situation, reduce transportation costs, saving fuel consumption.

Applications

Oil tanker semi trailer is suitable for transporting liquid oil such as gasoline, kerosene, diesel oil, vegetable oil, edible oil, heavy oil, coal tar and non-petroleum products. The tank is equipped with multi-channel anti-wave bulkheads, which makes the tank body strong, stable and the vehicle carried safely and steadily.

Tare Weight About6.9T
Dimension
(The exact size depends on final design)
Length:13000 mm(outside dimension)
Width: 2500 mm(outside dimension)
Height: 3800mm(outside dimension)
Loading Capacity 50,000L
Tank Assembly Front/Rear end plate Material Carbon steel
Thickness 7mm
Tank Body Material Carbon steel
Thickness 6mm
Compartment Three compartment
Thickness 5mm
Insulating layer Thickness 50mm
Material Polyurethane foam
Outer layer Carbon Steel
Thickness 1.2mm
Effect ±5ºCin 24 hours
Discharging Valve Diameter 3 inch
Number 3 PCS
Discharging Pipe Diameter 3 inch
Type Rubber hose, 2pcs
Cat Walk with, Standard type
Running mechanism Main beam Material Q235 carbon steel
Plate upper plate is 14mm, middle plate is 8mm,
Down plate is16mm
Height 500mm
Side  beam Material Q235 carbon steel
Thickness 16mm or 18mm channelsteel
Axle Brand FUWA
Type 13T
Number 3 PCS
Rim Type 9.0-22.5
Number 13 PCS
Tire Brand Triangle brand
Type 12.00R22.5
Number 13 PCS
Suspension Mechanical suspension for3 axle
Spring leaf Leaf width 90mm
Leaf thickness 13mm
Layer/set 10 Layer
King pin Brand JOST brand
Type Bolts type
Diameter 2.0 inch
Brake system Air tank 45L air tanks
Brake chamber 6 double Spring brake chamber
ABS Without
Landing gear Brand JOST brand
Type JOST C200T
Accessories Spare tire carrier 1 SET
Light LED light
Voltage 24V
Receptacle 7 ways (7 wire harness) and quick change type
Tool box One piece, 1m×0.5m×0.5m (equipped with 1 unit Tire spanner,1 unit gudgeon sleeve and 1 unit cranking bar)
Painting Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint
