Fuel Tank TruckYou are here：HOME >> Products >> Fuel Tank Truck

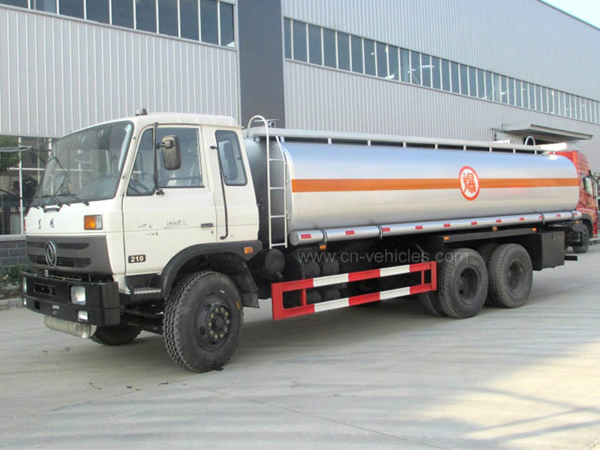

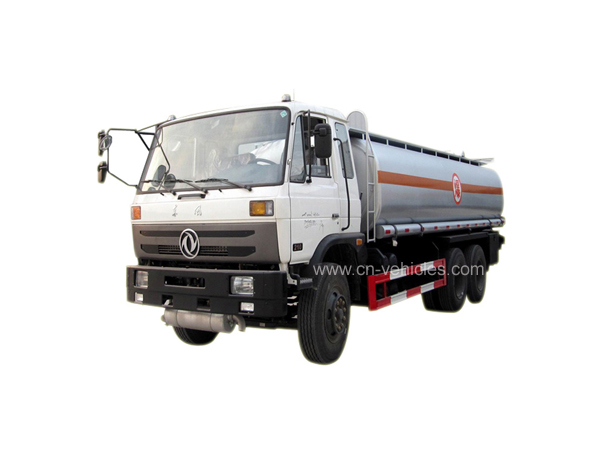

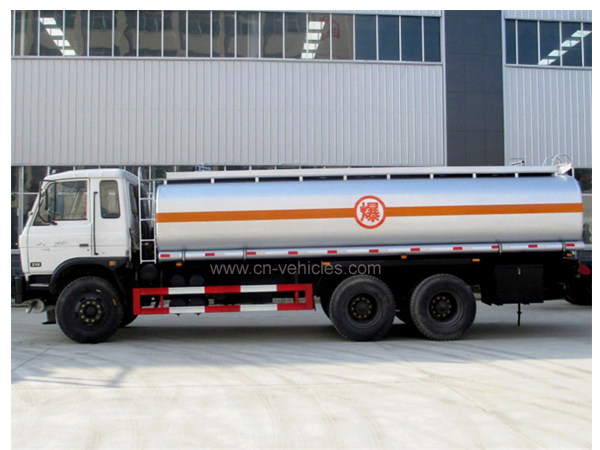

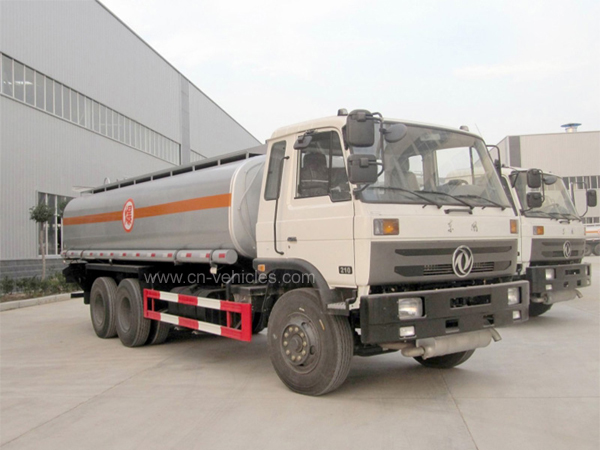

DongFeng 20cbm Acid Chemical Liquid Tank Truck

This chemical vehicle transporter belongs to heavy truck special vehicles and is used to transport chemical special liquids. The Dongfeng 6X4 chassis has comprehensively improved the performance of the entire vehicle system, especially in terms of technology, safety, economy, reliability, and comfort.

Description Get quotation

6x4 DongFeng 20cbm Acid Chemical Liquid Tank Truck

Tank material can be used: carbon steel lined or stainless steel plate. It is corrosion resistant and reduces the corrosive effects of chemical liquids on cans. The shape of the tank body is elliptical, square, round and can be chosen according to your needs. And, the tank can be divided into warehouses to meet your transportation diversification. In the interior of the bin, there are also multiple plastic anti-wave separators installed inside. Through the high-pressure air tightness test, the tank body has high strength, stable center of gravity, and safe and stable vehicle performance. We have adopted a special chemical pump to ensure the efficient operation of chemical vehicles.

1. The cab is strong and elegant.

2. The strong dynamics of the model and the fluidity of the streamlines

3. The three-dimensional east wind emblem of the two swords combined to show special style and give the rider a sense of success.

4. All-steel double-layer bumper fully demonstrates Dongfeng‘s love for customers and its appearance is even more beautiful

5. A pair of crystal headlights like the crowning touch

6. Dongfeng‘s new-generation 13-ton single and double-heavy axles absorb international technology and have the qualities of "anti-hit, high load, high torque and long life".

Traction system	6x4
Vehicle Main Dimensions	Overall dimension (L x W x H)mm	10780x2500x3400
	Cargo body dimension (L x W x H)mm	8000x2100x1300
	Wheel base (mm)	5350+1300
	F/R track base (mm)	1986/1860
	Approach/Departure angle(°)	18/13
Weight	GVW (kg)	25000
	Curb Weight	10805
	Load Capacity	14000
Max. speed (km/h)		80
Number of axles		3
Axle load (kg)		7000/18000
F/R over hang		1460/2620
Allowable passengers		3,2
Engine	Brand	Dongfeng
	Model	B210 33
	Max output power (kw)	210
	Emission standard	Euro Ⅲ
	Fuel consumption/100km (L)	32.75
Tire	Tire No.	10
Tire	Tire specification	10.00-20 18PR,10.00R20 18PR
Air condition	Yes	CD player, Radio, MP3
Tank body
Loading media	Fuel and Chemical Liquid Tank Truck
Tank Volume	17 CBM
Warranty	12 month, from the date of supply
Special configuration	1. Chemical liquid tanker truck material can choose stainless steel,line with PE, rotational molding, fiberglass, plastic containers (polyethylene, polypropylene), aluminum, carbon steel and other materials. 2. Chemical liquid truck can choose vacuum priming pump, gear pumps, chemical pumps, stainless steel pumps, flow meter (return to zero), the single count, double count. 3. Chemical liquid truck can be divided into few compartments, aliquot different mediums.

6x4 DongFeng 20cbm Acid Chemical Liquid Tank Truck
