10CBM to 20CBM Garbage Collection Compactor Station for Solid Garbage Collecting & Transportation
1. Mobile Garbage Compactor Station has the characteristics of small construction area, flexible maneuverability and novel appearance. It can be 2. Equipped with various types of loading devices, suitable for bag collection, standard garbage collection, rickshaw collection, small motor vehicle collection, etc.
3. For collection and transshipment of solid waste domestic garbage in urban sanitation collection stations, residential quarters, communities, hospitals, large venues, etc. It can be especially suitable for new land transfer stations and old stations under difficult conditions in urban areas. Renovation of the garbage building.

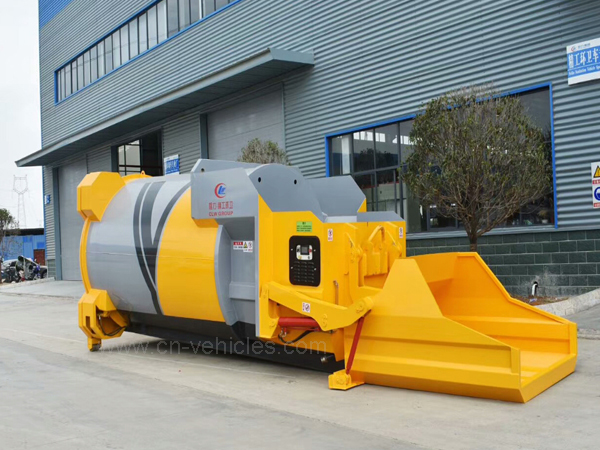

4. The main components of the mobile compression equipment:
Compressor side (electro-hydraulic control power system)
Reverse hopper
Container
Unloading rear door
Box-oriented positioning steel plate
Overall size |
Size |
10m3 |
12m3 |
15m3 |
18m3 |
20m3 |
||
Length transport condition |
5650 |
5700 |
6250 |
6800 |
7150 |
|||
Length working condition |
7700 |
8050 |
8600 |
9150 |
9500 |
|||
Width |
2500 |
|||||||
Height |
2550 |
|||||||
Suit chassis option |
4x2 |
6x4 |
6x4 |
6x4 |
8x4 |
|||
Suit wheelbase option |
4500 |
4350+1300 |
4350+1300 |
4550+1350 |
1800+3800+1300 |
|||
4700 |
||||||||
OVO mobile compression garbage station parameter |
||||||||
Item |
Name |
Unit |
Paramter |
|||||
1 |
Hook height |
mm |
1575 |
|||||
2 |
Outside width of guide rail |
mm |
1060 |
|||||
3 |
Through height |
mm |
180 |
|||||
4 |
Opening width |
mm |
500 |
|||||
5 |
Body weight |
t |
5-6.5 |
|||||
6 |
Compression cycle time |
s |
<=45 |
|||||
7 |
Turnover time of turnover mechanism |
s |
25 |
|||||
8 |
Lifting weight of turnover mechanism |
kg |
1000 |
|||||
9 |
Turnover hopper volume |
M3 |
3.5 |
|||||
10 |
Hydraulic tank volume |
L |
60 |
|||||
11 |
Compaction density |
T/m3 |
0.75-0.8 |
|||||
12 |
Compression force |
t |
35 |
|||||
13 |
Hydraulic system pressure |
Mpa |
20 |
|||||
14 |
Section size of compression head |
mm |
1950x500 |
|||||
15 |
Compression head stroke |
mm |
450 |
|||||
16 |
Size of feed port |
mm |
2000x1420 |
|||||
17 |
Height of feed outlet |
mm |
1700 |
|||||
18 |
Power Supply |
v |
380 |
|||||
19 |
Electromechanical power |
kw |
7.5 |
|||||
|
control mode |

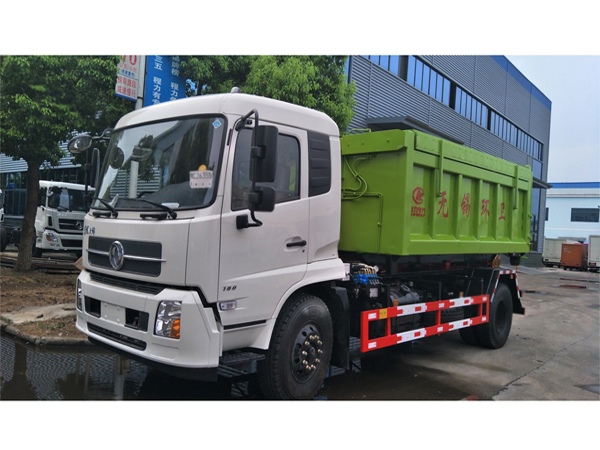

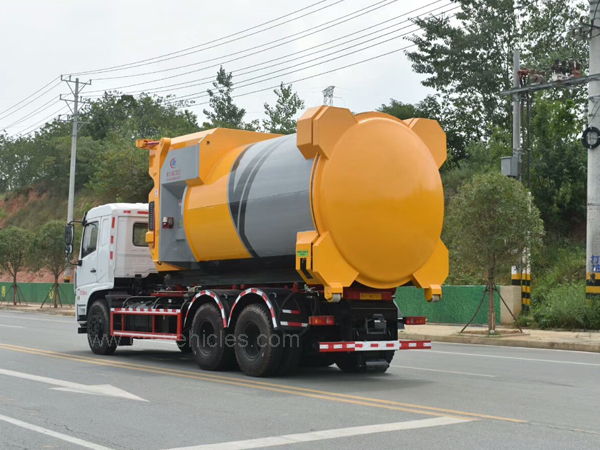

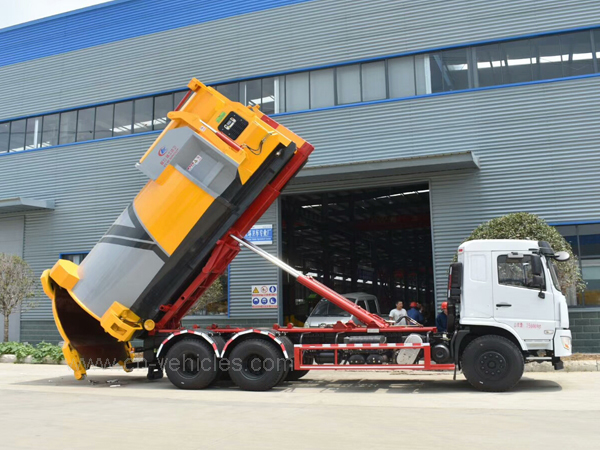

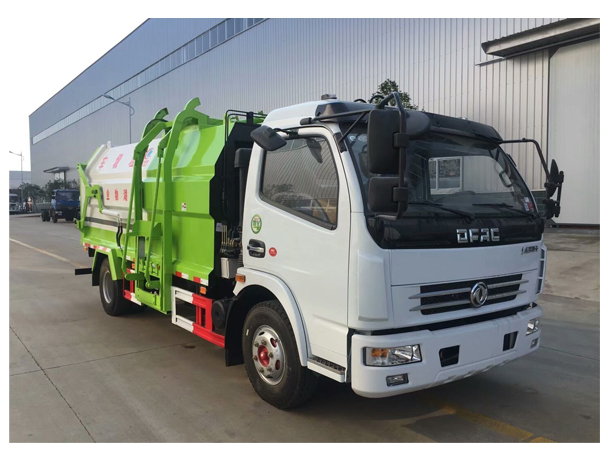

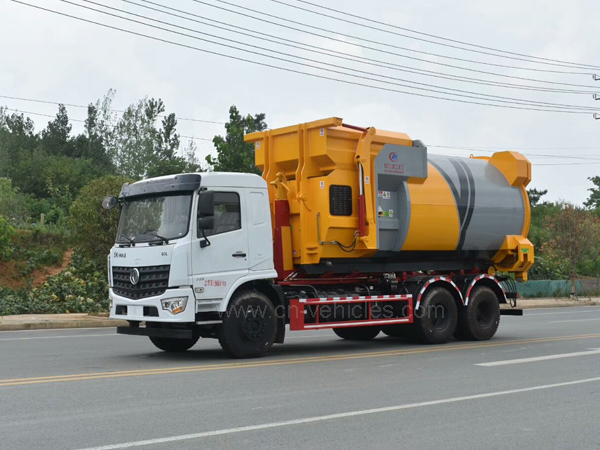

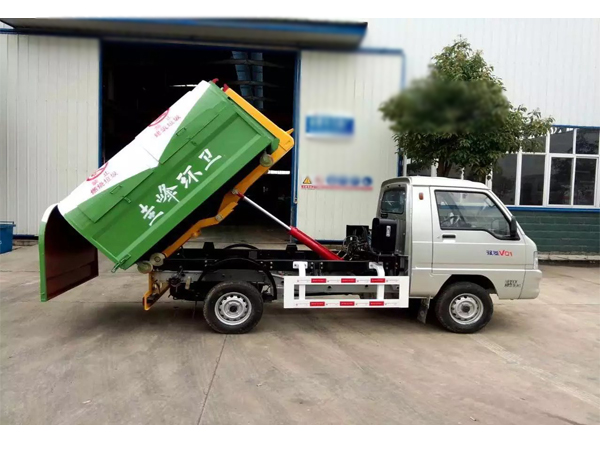

Truck Picture:
