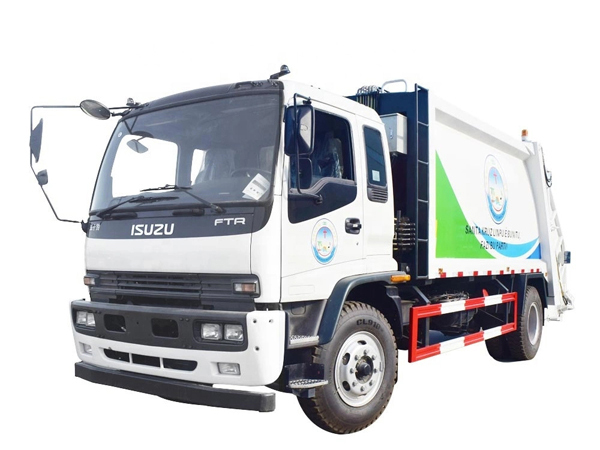

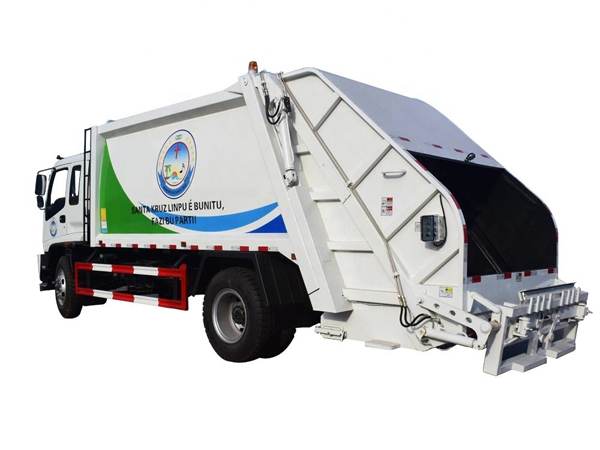

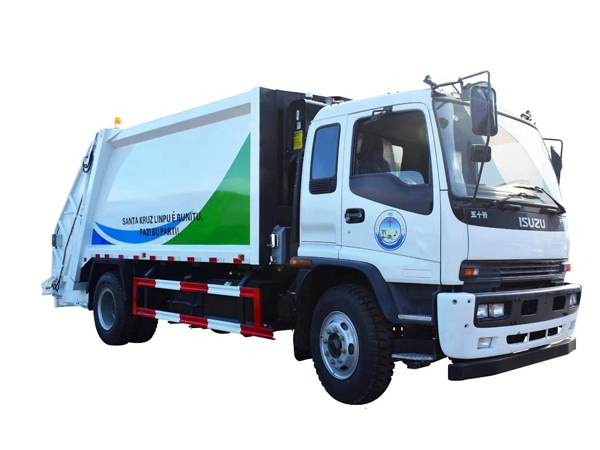

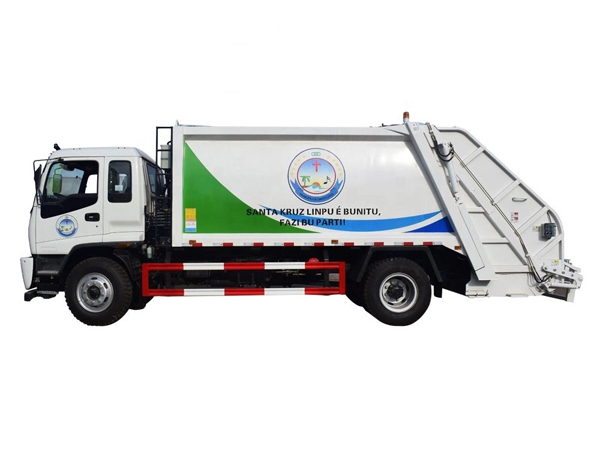

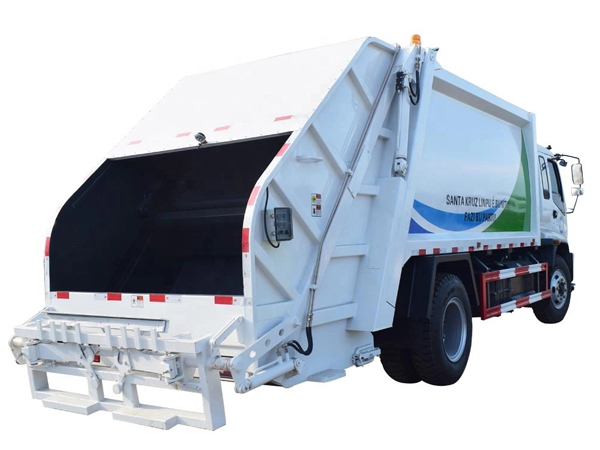

ISUZU Ftr 10m3 12m3 12ton 10ton Compactor Compressed Garbage Compactor Truck

Garbage compactor (also called waste compactor truck, garbage compactor truck, trash compactor, refuse collection truck, compactor garbage truck,rubbish truck, bin wagon, dustcart, bin lorry, waste collection vehicle) is designed to collect and transport municipal solid waste.

Garbage compactor is composed of hermitical garbage box, hydraulic system and operating system, which could apply pressure to the waste to break down bulky items, to load and transport more garbage by one time. Dirty liquid flows into waste sink, perfectly preventing repollution. When arriving at destination, the garbage can be dumped completely. It is ideal solution for solid waste collection.

Description FEEDBACK

Garbage compactor (also called waste compactor truck, garbage compactor truck, trash compactor, refuse collection truck, compactor garbage truck,rubbish truck, bin wagon, dustcart, bin lorry, waste collection vehicle) is designed to collect and transport municipal solid waste.

Garbage compactor is composed of hermitical garbage box, hydraulic system and operating system, which could apply pressure to the waste to break down bulky items, to load and transport more garbage by one time. Dirty liquid flows into waste sink, perfectly preventing repollution. When arriving at destination, the garbage can be dumped completely. It is ideal solution for solid waste collection.

II. Technical data of Japan Ftr 4X2 10 Cubic 12 Cubic 10ton 12ton 10m3 12m3 compressed Garbage compactor Truck

Chassis parameters

Chassis model

QL1160VKFRY

Chassis brand

FTR

Overall dimensions

8500X2500X2920mm

Wheel base

4500mm or 4700mm

Front/rear wheel track

1504/1425mm

Front/rear suspension

1335/2450mm

Approach/departure angle

24/14°

Maximum speed

95km/h

Cab

Configuration

FTR single cab,hydraulic mechanical flip,channel type instrument panel,air conditioner,allowable 3 passengers

Color

white,other color is optional

Engine

Model

4HK1-TC50

Emission

Euro 5

Type

4 cylinders,in-line,4-stroke,water-cooled,turbo inter-cooling,4- valve,diesel engine

Rated power

205hp

Displacement

5790ml

Max.torque

760N·m

Manufacturer

 Engine (Chongqing) Co., Ltd.

Tire

Size

10.00R20 Tire, With one spare tyre

Number

6+1 nos

Front axle

6.3 tons

Rear axle

13 tons

Drive form

4*2

Rated voltage

24V,DC

Transmissions

MLD six speed transmission, 6 speed forward 1 reverse.

Steering device

Power assisted steering

Steering wheel

Left hand drive

Refuse compactor structure parameters

Equipment

Structure

Body, sub frame, lifting rear part, the loading device, the pushing-out plate, hydraulic and electric systems

Loading capacity

10m3

System of loading

Mechanized, rear loading

Modes of the pressing

Manual,semi-automatic,automatic,lifting rear part operation manual,loading,pushing,pressing, pushing out automatic

Body

Version

All-metal

Sidewalls

Sheet carbon steel (thickness: 4 mm)

Bottom

Sheet carbon steel (thickness: 5 mm)
