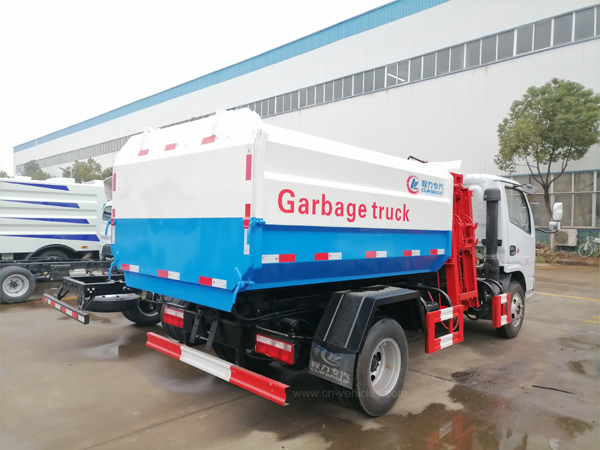

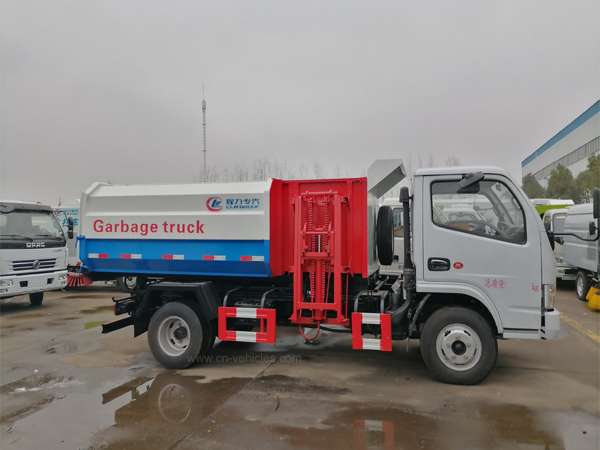

Dongfeng 3 ton to 22ton Side Load Garbage Truck With Lift System For Transport Food Waste

Side loader truck ( Also called side loader garbage truck , Mobile refuse truck , Waste collection vehicle , Automated side loader , Rubbish truck , Refuse Collection truck , Bin Wagon , Dustcart , Bin lorry , Side loader refuse truck ) Is designed to collect and transport municipal solid waste .

Description Get quotation

Dongfeng 3 ton to 22ton Side Load Garbage Truck With Lift System For Transport Food Waste

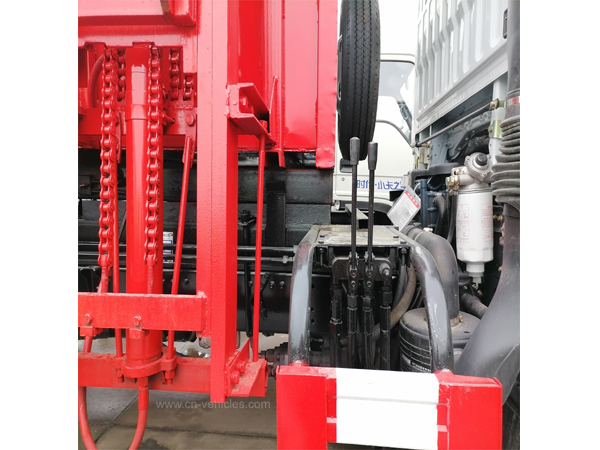

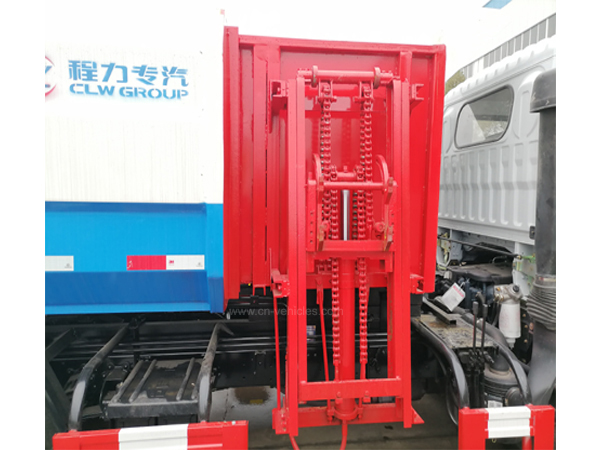

Side loader is loaded from side with automatic lift and tip equipment . One truck usually equipped with several dustbins . So it is widely used in streets and resistant areas .

Technical Date

Products Technical Specification
Chassis Brand	Dongfeng
Fuel type	Diesel
Emission Standard	Euro 3
Cabin	Flat head with single row cab
Whole Vehicle main dimensions (mm)	Overall dimensions (L×W×H)	615019502850
	Wheelbase	3300
	Front overhang	1250
	Rear overhang	1950
Weight(KG)	Gross weight	4495
	Cubic weight	3680
	Payload	685
Max speed(km/h)	90
Engine	Model	CY4102-C3F
	Horse power	76KW/103HP
	Number of cylinders	4
	Displacement(ml)	3856
	Engine manufacture	Chaocai
Gear box	Manual/5 forward gears&1 reverse
Tyres	7.00-16
Upper description
Standard confirguration	Volume :4CBM 4cubic 4cm3
	Container Roll on time(s)	50-60
	Container Roll off time(s)	40-50
	Tank materials	Q345
	Thickness of box	5mm

Dongfeng 3 ton to 22ton Side Load Garbage Truck With Lift System For Transport Food Waste
