Garbage truckYou are here：HOME >> Products >> Garbage truck

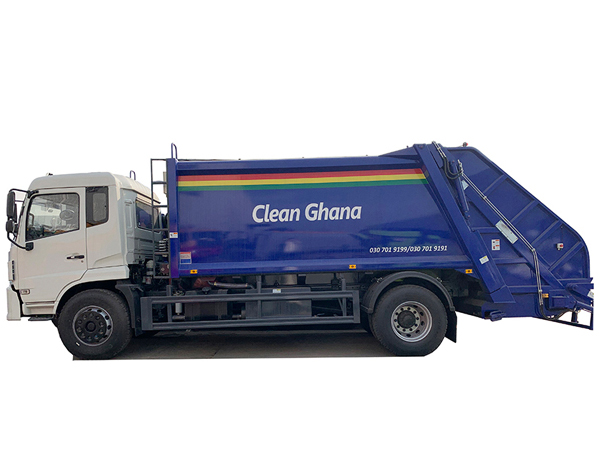

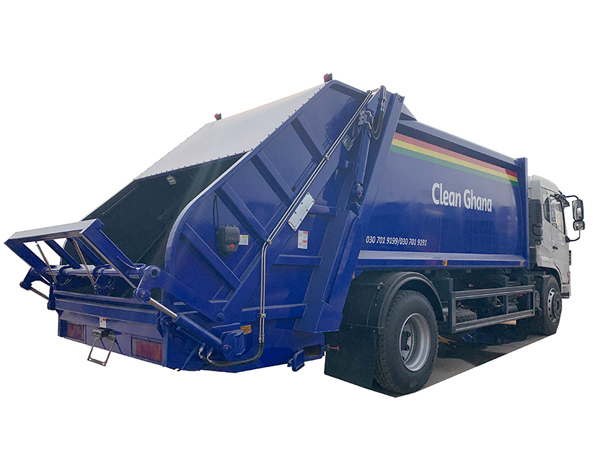

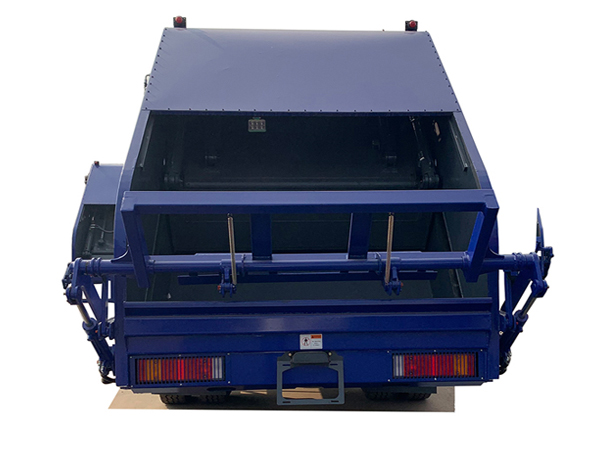

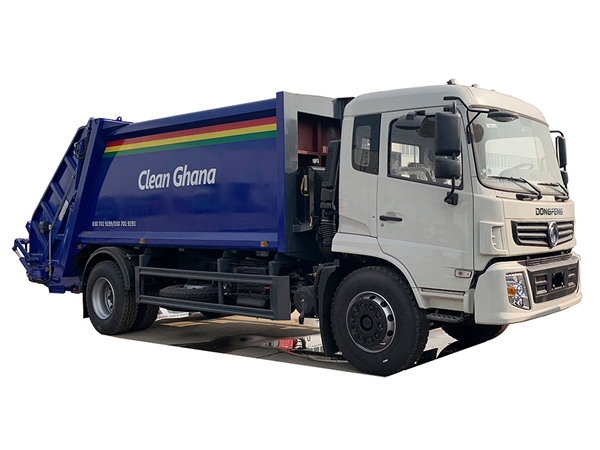

DFAC 12m3 customized garbage Compactor Waste truck sanitation vehicle sell to Ghana
The garbage compactor truck usually called compressed waste truck, compression garbage truck, waste compactor truck, compactor garbage truck, etc. The compressed garbage truck compresses the garbage through the hydraulic mechanism. The hydraulic mechanism operates the movable plate or shovel to scoop the garbage out from the filler into the compartment and compresses it against a moving wall. The garbage loaded by the compressed garbage truck is 2.5 times that of the ordinary garbage truck.
Description
Get quotation
DFAC 12m3 customized garbage Compactor Waste truck sanitation vehicle sell to Ghana
The garbage compactor truck usually called compressed waste truck, compression garbage truck, waste compactor truck, compactor garbage truck, etc. The compressed garbage truck compresses the garbage through the hydraulic mechanism. The hydraulic mechanism operates the movable plate or shovel to scoop the garbage out from the filler into the compartment and compresses it against a moving wall. The garbage loaded by the compressed garbage truck is 2.5 times that of the ordinary garbage truck.
|
Model |
CLW5182ZYSD |
Product Name |
Compactor garbage truck |
|
Product Brand |
CLW Brand |
Overall Size |
9040x2550x3200mm |
|
Axes |
2 |
Wheelbase |
4700mm |
|
G.Weight |
18000kgs |
Curb Weight |
10500kgs |
|
Gearbox |
6-speed |
Tyre size |
10.00R20 18PR |
|
Engine |
210HP |
Power steering |
LHD or RHD |
|
Upper structure parameters |
|
|
Capacity |
12 m3 |
|
Structure |
body, compartment, sub frame,filler, compressor, hydraulic and electric system, pipeline, sewage tank,pressure gauge,etc. |
|
body shape |
Arc-shaped |
|
Material |
Carbon steel Q235R |
|
Sidewall |
4mm thickness |
|
Bottom |
5mm thickness |
|
Sewage tank |
4mm carbon steel, 304 stainless steel is optional |
|
Pressure Value |
16Mpa |
|
Pressing mode |
Automatic pressing, operated by hydraulic system |
|
Compression ratio |
≥2.5 |
|
Loading cycling time |
≤25 second |
|
Unloading garbage time |
≤15 second |
