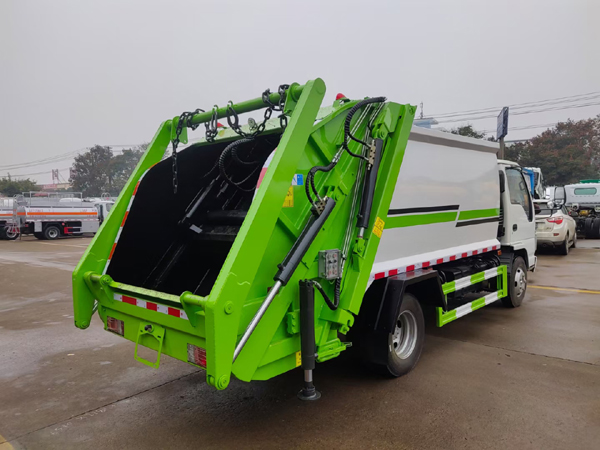

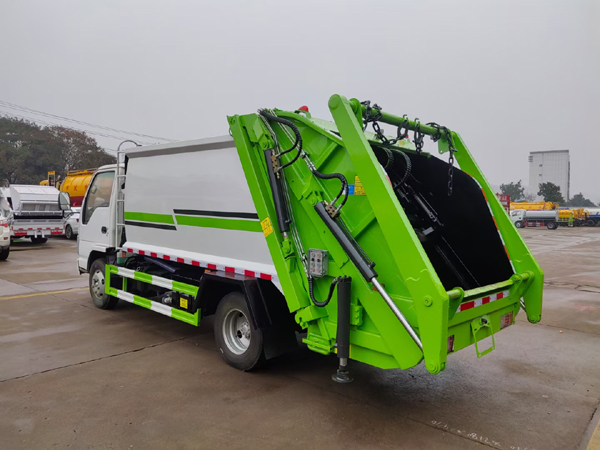

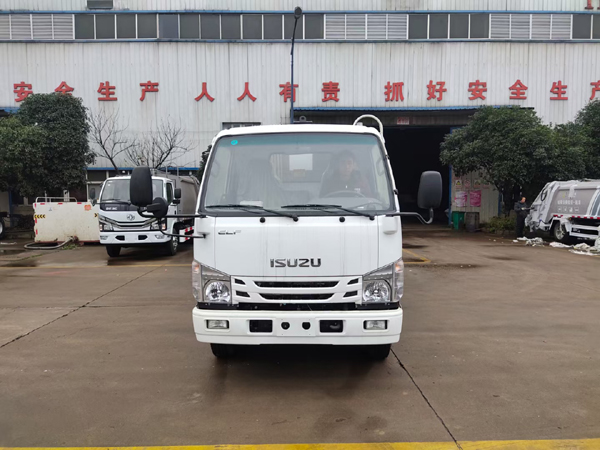

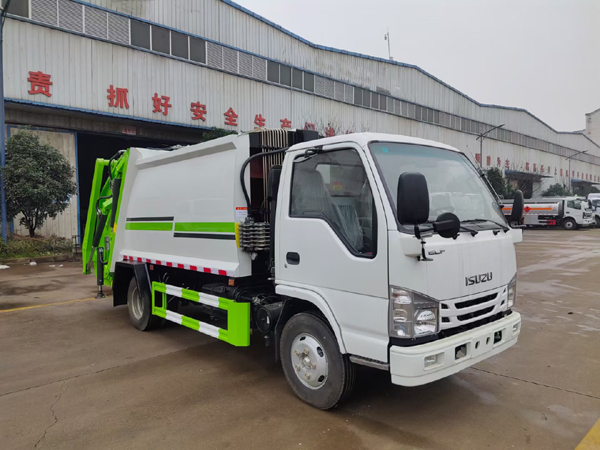

Japan Brand Isuzu ELF 190hp 700P 600P 5m3 5Ton Compactor Garbage Truck For Sale
Self Compressed with Rear Loading with different mechanism: Barrel, Steel Container, etc
Leakage Proof Container Design to avoid the pollution.
Hydraulic Control Loading & Unloading System
Automatic Key Control & Hydraulic Handle Control
Best Choice for Garbage Transportation Inside City.
Description
Get quotation
Isuzu 600P Compressed Sanitation Rubbish Collector Dust Cart Roll Off Waste Compactor Garbage Truck
Self Compressed with Rear Loading with different mechanism: Barrel, Steel Container, etc
Leakage Proof Container Design to avoid the pollution.
Hydraulic Control Loading & Unloading System
Automatic Key Control & Hydraulic Handle Control
Best Choice for Garbage Transportation Inside City.
Technical date :
| Mian Technology Parameter | |
| Model Name | Isuzu 600p garbage compactor truck |
| Driving Type | 4×2,left hand drive |
| Color | White,yellow,box can choose |
| Weights | |
| Rated payload weight(kg) | 6000 |
| Curb weight(kg) | 4550 |
| Dimensions | |
| Wheelbase(mm) | 3815(also can choose 3360mm wheelbase) |
| Overall Dimension(mm) | 6710×1880×2600 |
| Box dimension | 6 m3 |
| Max speed(km/h) | 98 |
| Engine | |
| Engine model | 4KH1-TCG4O(120HP) |
| Engine type | 4 stroke water-cooled,inter-cooling |
| No. of cylinders | straight-4 cylinders |
| Displacement(L) | 2.999L |
| Max. output (kw) | 88kw |
| Emissions standard | Euro 5 |
| Drive Line | |
| Transmission | MSB 5 speeds ,5 forwards,1 reverse gear,manual operation |
| Steering | Power steering |
| Brake | Oil brake with vacuum pump |
| Cab | |
| Air container | Have |
| Standard configuration | Sound,,parking sensors |
| Axle | |
| Front axle | 2.5tons |
| Rear axle | 4.8 tons |
| Tire specification | |
| Tire specification | 7.00-16 standard tire,6 tires+1 spare tire |
| 6m3 garbage compactor truck | |
| Box valume | 6m3 |
| Box material | Side 4mm,bottom 5mm |
| Sewage tanker | 200L |
| Fill volume | 1.2cbm |
| Loading time | 8-10S |
| The cycle time of the loading | 50-60S/per turn |
| Unloading model | Dump |
| Unloading time | 30-40S |
| Hydraulic system pressure | 16Mpa |
The above mentioned figures are approximate.
Optional equipments are included in these photographs
Specifications and dimensions are subject to change without notice.
Material : Anti-corrosion Steel
Material : Anti-corrosion Steel or High-tensile Steel
Material : High-tensile Steel
