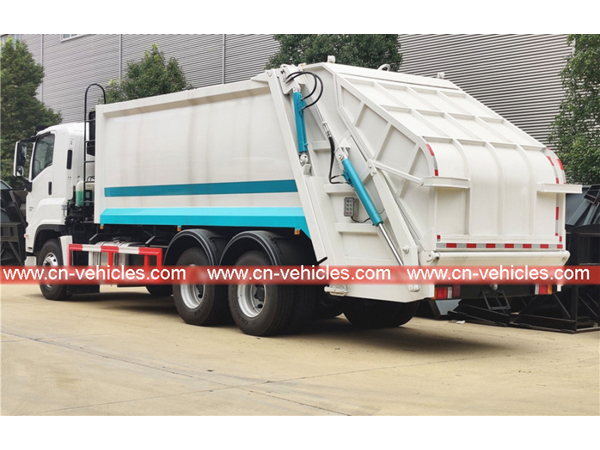

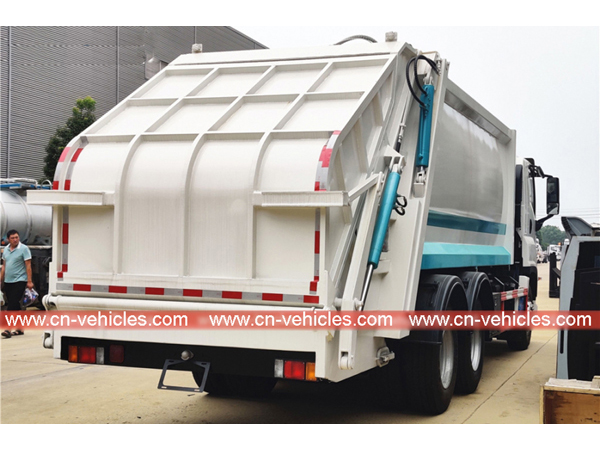

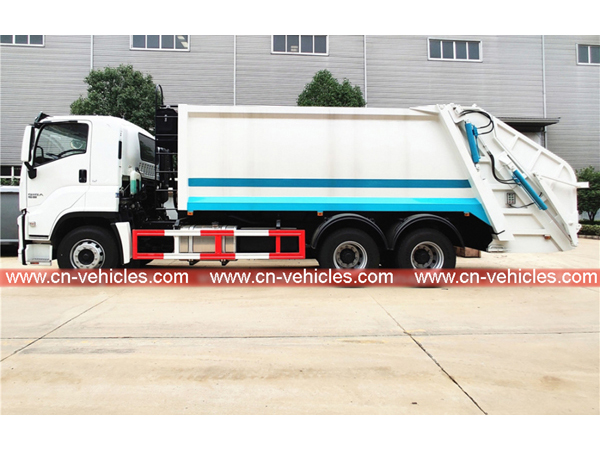

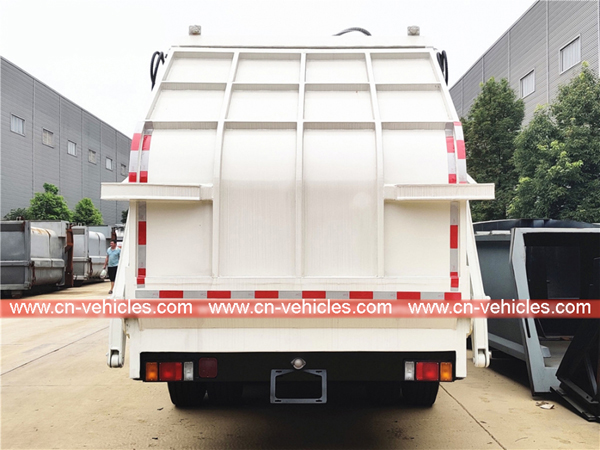

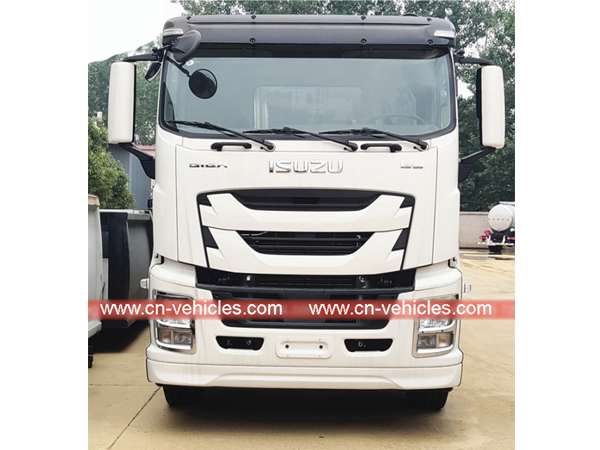

ISUZU GIGA 10 Wheels Garbage Compactor Truck

ISUZU 20cbm garbage compressor truck for Philippines, the truck chassis is equipped with ISUZU 380HP diesel


engine, FAST 9-shift transmission gear. CAN control

Description FEEDBACK

ISUZU GIGA 10 Wheels Garbage Compactor Truck

ISUZU 20cbm garbage compressor truck for Philippines, the truck chassis is equipped with


ISUZU 380HP diesel engine, FAST 9-shift transmission gear. CAN control


Applications:



ISUZU GIGA Waste Compactor Truck (also called garbage compactor, ISUZU GIGA waste compressor truck, brand new ISUZU GIGA Rear loader, ISUZU GIGA compressed refuse truck, high quality ISUZU GIGA trash compactor truck, ISUZU GIGA 6×4 refuse compression truck) is designed for daily rubbish transport in such living areas as all kinds of cities, large station, port and wharf, airport, and densely-populated areas like industrial and mineral enterprises and military units.

Garbage compression truck reduces back-and-forth transport times and prevents rubbish and stinks from spreading and avoids second-time pollution produced by polluted water.


The refuse compactor vehicle tail-gas discharge reaches EUROPEAN standard. which is safe and environmental-protective.

 Key Features:

  ---- ISUZU chassis, perfect performance

---- ISUZU engine, super powerful; reliable performance, no overhaul within 100,000 km.

---- Compression body capacity from 3 to 20 Cublic Meter.

---- Easy operation and easy maintenance.

---- Various types of refuse container lifter are available.

 Specifications:



ISUZU GIGA hydraulic refuse compactor truck (20 cbm)

General

Vehicle Brand

Chengli Truck

Chassis Brand

ISUZU

Overall Dimension

9900 * 2500 * 3180 mm

GVW / Kerb Weight

34,000kg / 9,200kg

Cab

Cab Capacity

3 persons allowed

Air Conditioner

Heating/cooling air conditioner

Engine

Fuel Type

Diesel

Engine Brand

ISUZU

Power

380HP

Displacement

9839 ml

Emission Standard

Euro 5

Chassis

Drive Type

6X4 (left hand drive)

Transmission

FAST 9 speed levers with 1 reverse

Wheelbase/No. of axle

4565+1370mm / 3

Tire Specification

315/80R22.

Tire Number

10 tires and 1 spare tire

Max Speed

95 km/h

Paint

Metallic paint

Superstructure

Body capacity

20 cbm

Fill Hopper capacity

2.4 cbm

Sewage tank

 200 liters

Filling work cycly time

 20~25 s

Discharge model

Horizontal Ejection

Control system

Electrically Hydraulic control

Manual hydraulic control

Control panel

English or Your language

All standard accessories: Dust bin lifter,Ladder, warning lights, Emergency stop button,

handrail, fire extinguisher, basic tool kit, English manual……

Optional

** Back alarm and Camera can be equipped.

** Italy mulit-valve can be choose.

** 240L (single bin or double bin) or standard 660 L, 1100 L bins with bin lifter can be choose.
