LED TruckYou are here：HOME >> Products >> LED Truck

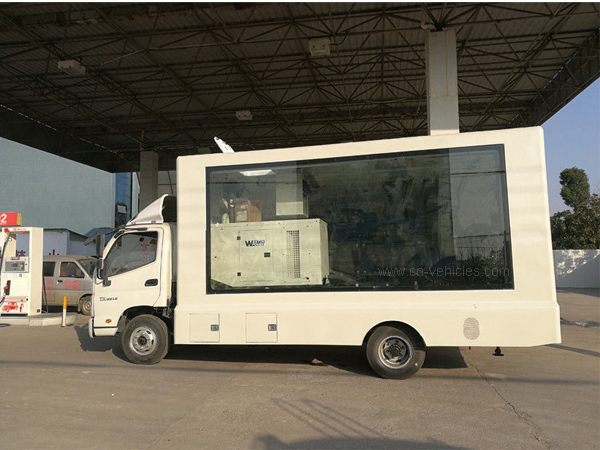

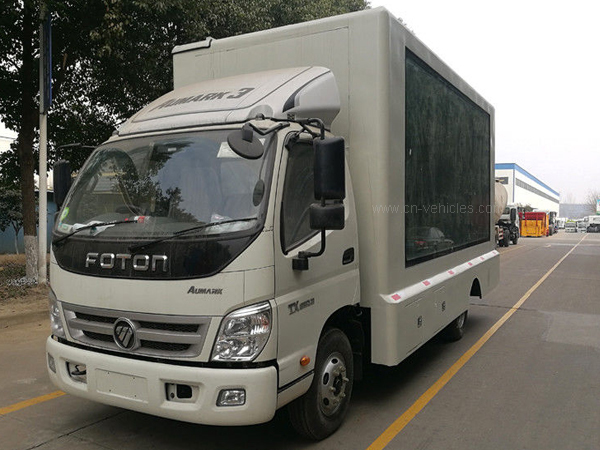

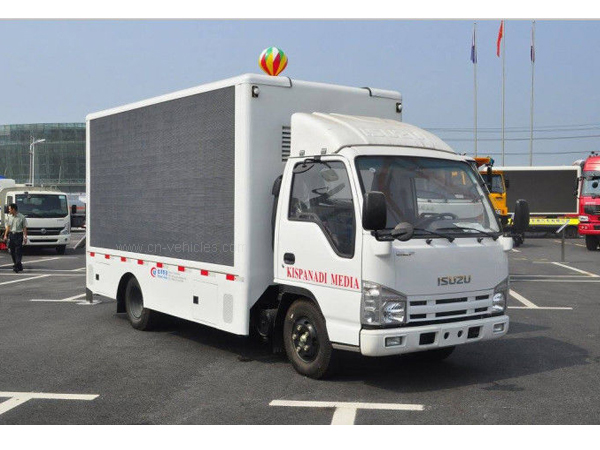

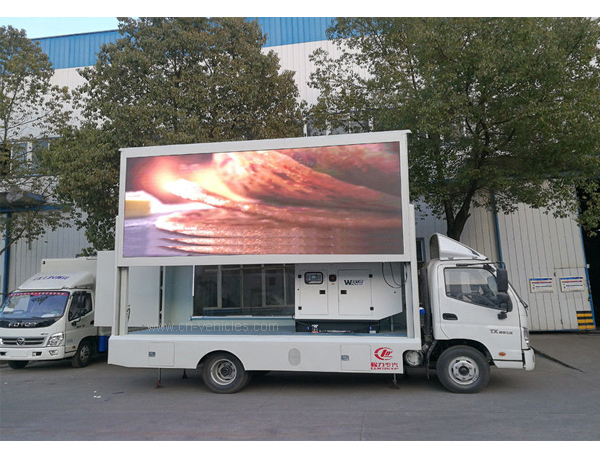

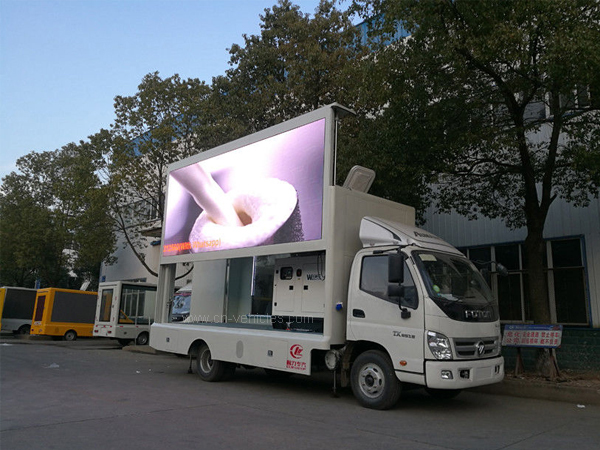

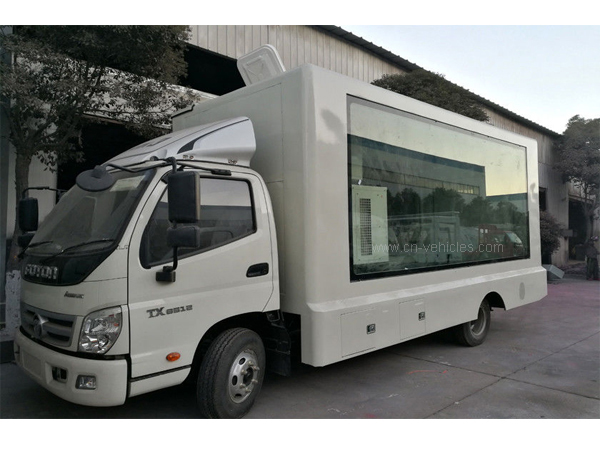

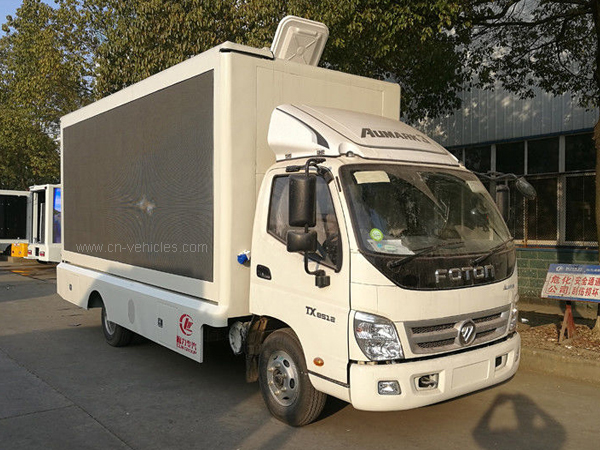

P6 Scrolling Billboard Truck , Led Wall Truck For Products Promotion

LED Truck (also called mobile billboard truck , LED video truck , Digital LED vehicle , LED advertising truck , LED digital display truck , Mobile video truck , Outdoor advertising truck , LED Advertisement truck)is a new design for advertising . It is widely used in new products promotion , products live sale , Mini Show , Concert ,etc . LED truck could get the best effect with live video displaying .

Description Get quotation

P6 Scrolling Billboard Truck , Led Wall Truck For Products Promotion

Based on different situation , LED truck could be designed with single screen , double screen , triple screen .

As for the screen , There has several options :P6,P8,P10,P12. (P8 means 8mm pixels , Smaller number , Clearer picture .)

1. Purpose: For mobile advertising, products promotion, branding, concerts and so on. It can on-site display, exchange, interaction, wide publicity and gain great effective of advertising.

2. Main parts: LED screen, Generator set, Computer, Control system etc.

3. Optional items: Mobile stage

4. LED screen: SMD P4 P5 P6 P8 for optional.

5. Generator brand: China famous brand and Internation brand for optional

6. Scrolling light box: Light box size as per different chassis

Technical Date

Condition	New condition/RHD/LHD/4x2
Chassis	Brand		Foton
	Model		BJ
	Curb weight(kg)		8495 kg
	Wheelbase(mm)		3800 mm
	Dimensions(mm)		729023303350 mm
	Front/Rear axle loading(kg)		3200/6000 kg
	Front/Rear overhang(mm)		1120/2355 mm
	Wheel track (front/rear) (mm)		1685/1615 mm
	Approach/Departure angle(°)		22/11
	Max. driving speed(km/h)		90 km/h
	Clutch		Reinforced diaphragm clutch
	Brakes		Service brake: dual circuit compressed air brake Parking brake:(emergency brake): spring energy, compressed air operating on rear wheels Auxiliary brake: engine exhaust valve brake
	Steering Gear		Power steering, hydraulic steering with power assistance
	Tire	Quantity	6pcs with one spare tire
		Specifications	7.50-16
Transmission	Manual type, 6 Forwards and 1 reverse
Cabin	Single row seat, Tiltable. It can accommodate three people. With air conditioner
Engine	Model		YZ4105ZLQ
	Fuel type		Diesel
	Displacement(ml)		4087 ml
	Power(kw)		105 kw
	Horsepower(HP)		143 HP
	Cylinder number		6
	Emission standard		Euro 2
LED Advertising Screen System
Upper	1. P6: One side P6 LED outdoor full color display screen, size 48002112 mm with lifting function 2. P5: One side P5 LED outdoor full color display screen, size 48002112 mm with lifting function 3. Another side 48002112 mm and rear side 15361536 mm outdoor full color display screen 4. Omar Silent diesel generator set 5. Control system,sound system 6. Amplifier 1pc, Control Panel 1pc. 7. Waterproof wood floor
Remarks	Color is optional

P6 Scrolling Billboard Truck , Led Wall Truck For Products Promotion
