Forland 5 Tons to 30 Tons Freezer Refrigerated Fridge Van Truck for Transport
  • Forland 5 Tons to 30 Tons Freezer Refrigerated Fridge Van Truck for Transport
  • Forland 5 Tons to 30 Tons Freezer Refrigerated Fridge Van Truck for Transport
  • Forland 5 Tons to 30 Tons Freezer Refrigerated Fridge Van Truck for Transport
  • Forland 5 Tons to 30 Tons Freezer Refrigerated Fridge Van Truck for Transport
  • Forland 5 Tons to 30 Tons Freezer Refrigerated Fridge Van Truck for Transport
  • Forland 5 Tons to 30 Tons Freezer Refrigerated Fridge Van Truck for Transport
Forland 5 Tons to 30 Tons Freezer Refrigerated Fridge Van Truck for Transport
Refrigerator truck (also called refrigerator wagon , refrigerated truck , refrigerated box car , freezer vehicle , freezer wagon , temperature controlled truck , refrigerator car , preservation vehicle ) is used to carry perishable stuff at specific temperatures .
Description Get quotation

Forland 5 Tons to 30 Tons Freezer Refrigerated Fridge Van Truck For Transport

Refrigerator truck (also called refrigerator wagon , refrigerated truck , refrigerated box car , freezer vehicle , freezer wagon , temperature controlled truck , refrigerator car , preservation vehicle ) is used to carry perishable stuff at specific temperatures .

The cooling device could be of famous brand such as carrier , Thermoking , There are two types of power driving ways , one is powered by vehicle engine through PTO , The other is driven by a separately carried power unit . According to the transport stuff category ( Fresh or Frozen ), There are two main lowest temperature unit (-5º or -16º) for your option .

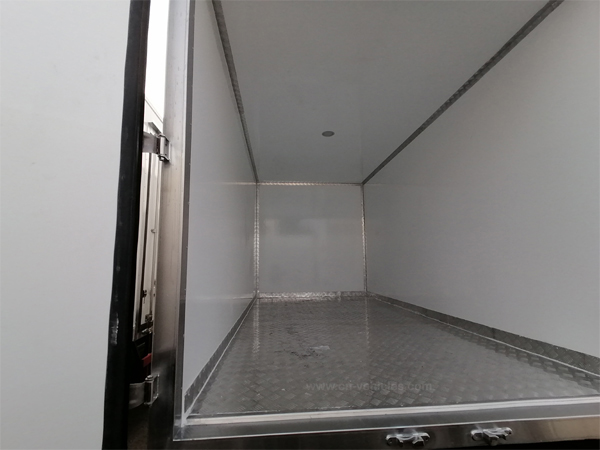

We use high quality van body for temperature reservation , The box surface material could be fiberglass , Aluminum or stainless steel , The padding material is polyurethane foam that has super temperature preservation ability with varieties of thickness options .

Chassis brand

CNHTC , Beiben trucks , Shacman trucks , FAW trucks , ISUZU ,Hongyan trucks,FOTON trucks , Dongfeng trucks , JAC trucks

Technical date:
parameters Type of Vehicle Refrigerated truck
Dimension(L*W*H) 5995*2090*2950(mm)
Van dimension 4100*1910*1900
Curb Weight Appro 2870KG
Chassis parameters Chassis Model CLW5040XLC4
Manufacture Forland
Cab single
front/rear suspension 1032/1663(mm)
Engine Engine Model CY4102-D3C
Fuel Diesel-oil
Quantity of cylinder 4
Horse Power 95HP
Rated Power 69kw
Air Displacement 3856ML
Emission euro 2
Driving Type 4*2
Steering Wheel Left hand drive
Gear-box 5
Brake Type air
Quantity of Axle 2
Wheel Base 3300 mm
Axle load 1800/2695KG
Tyre 7.00-16
Other parameters Van material Color-coated steel,thickness 8mm

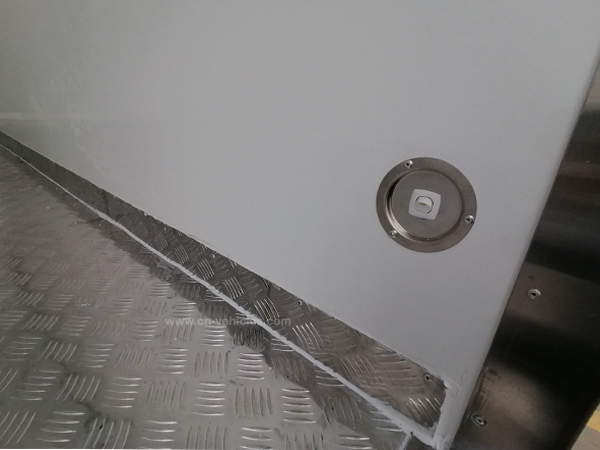

Plate Material Diamond plate
Refrigeration unit Carrier MK358
