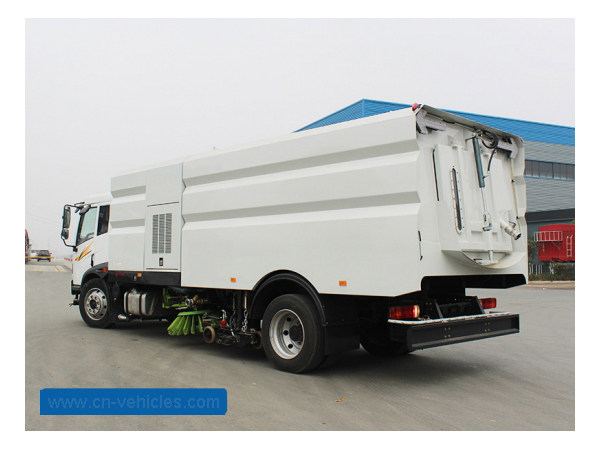

FAW J5K RHD Road Sweeper Truck With Dust Tank Water Tank Suction Tank

Truck Specification

Chassis model

CLW5160TXSF5

Cab

FAW J5K flat cab, with power steering. Electronicflame-out，withA/C

Driving Type

4*2 Right hand driving

Max Speed (km/h)

90

Overall dimension（mm）

8700*2490*3100

GVW（ kg）

12000

Mass in working order（ kg）

16000

Wheelbase（mm）

5340

Tire

275/70R22.5 (6+1)

Clutch

Single-plate 380mm hydraulic-Air Assisted

Steering

Hydraulic steering with power assistance

Gear box

6-speed FAW CA6TBX085

Bridge

Front axle

5500KG

Rear axle

9500KG

Engine

Model

FAW CA6DF2D-18 Euro2

Fuel Type

Diesel fuel

Type

Water-cooled four-stroke,, direct injection, turbocharged

Max output power/rotate speed (hp /rpm )

180/2300

Max torque/rotate speed(N.m/rpm)

650/1350-1600

Braking System

Service Brake

Full air Dual Circuit with ABS

Park/Emergency System

Spring brakes/Rear Booster

Electric system

24v

Upper-Body  specification

Vice generator

Model

B170

Rated power (kw)

125KW

High pressure cleaning

Cleaning speed (km/h)

3-20

Cleaning width(m)

3.5

Cleaning pressure (mpa)

10

Pump flow(L/MIN)

154

Suction sweep operation

Cleaning efficiency

≥95%

The maximum diameter of the suction body(mm)

110

Suction sweep width(mm)

2.3-3.5

Maximum cleaning power （m3/h）

70000

Butterfly dish brush overhang dimension(mm)

≥400

Working speed (km/h)

3-20

Water tank body

Rated capacity （m3）

9

Garbage tank body

Rated capacity（m3）

7

Discharge door opening angle

≥50º

Hydraulic system

Model

Open, electrical control

The main element

Gear pumps, hydraulic motors, hydraulic cylinders, solenoid valve

Pressure (mpa)

16

Hydraulic oil tank capacity  (l)

60

Hydraulic oil temperature (ºC)

60

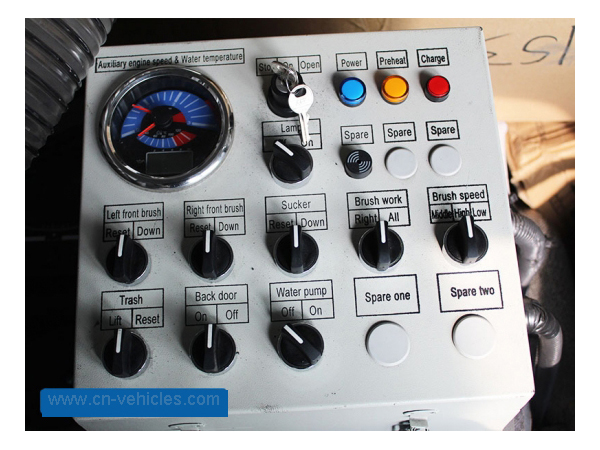

Electrical system

Model

DC24V

voltage

24V

Battery

24V（2 set 12 v battery seriesconnection ）

High pressure water system

Type :

Piston pump

Model

German PF36

Pressure (mpa)

10

Ratating speed (r/min)

1150

Valve type

Pilot pressure valve

Pressure for valve (mpa)

7

Nozzle type

High pressure cleaning

Water filter

Strainer

Sprinkle system

The main elements

Electric diaphragm pump, water filters, nozzles, etc.

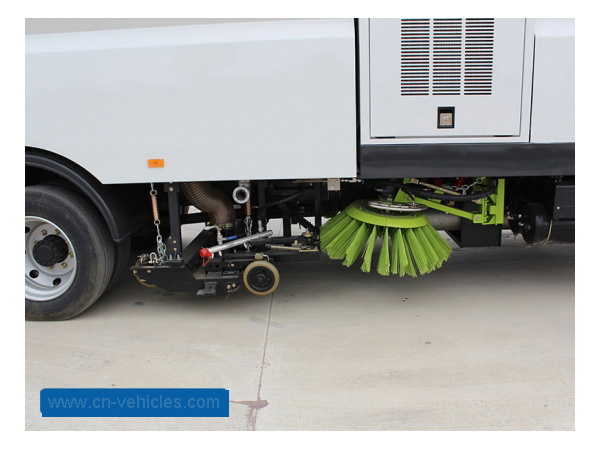

Sweeper disk device

Model

Center twosweeper disk,controlled bya hydraulic motor, front right can be independently controlled with avoidance and reset function

Diameter (mm)

850

Speed

High :110  medium: 80 ,low :50

Angel

Forward  4-6º  roll 4-7º

Sucker device

Model

Double  suction port, hydraulically controlled, spring suspension.

Diameter (mm)

180
