General Technical Parameters

Overall Dimension

7160X2250X2750 (mm)

Gross Vehicle Weight

7300(Kg)

Curb Weight

2110(Kg)

Chassis Specification

Chassis Brand

ISUZU

Drive model

4*2

Cabin

Single Row, LHD, with air condition.

Number of Passengers

2

Engine

Model

ISUZU 4KH1-TCG4O/120HP, 4-stroke direct injection , 4-cylinder in-line, turbocharged intercooled, with ABS.

Power

88KW/120HP

Emission standard

EURO 4

Displacement

2999(ml)

Fuel type

Diesel

Gearbox

ISUZU MSB, 5Forwards & 1Reverse, manual operation, with power steering.

Brake System

Oil break

Wheel Base

3815mm

Front/Rear Axle Loading

2500/4800(Kg)

Approach/Departure Angle

24/14(°)

Overhang

Mechanical Suspension, 8/6+5

Tire

7.00R16 Steel wire tyre, 6pc with 1 spare tire

Sweeping Speed

3-20 km/h

Upperstructure Specification

Tank

Water Tank

Material

Stainless steel 304

Volume

4(cbm)

Dust Tank

Material

Stainless steel 304

Volume

5(cbm)

Auxiliary Engine

Model

Cummins

Power

140HP/103KW

Maximum sweep width

3.5m

Maximum cleaning capacity

60000m³/h

Standard Configuration

1. Equipped with 1 sweeping brush on each side, and middle suction nozzle;

2. Equipped with Sanyo Motor;

3. Equipped with German imported high pressure water pump(front flush, side sprinkler, middle sprinkler, rear sprayer, water gun, self-cleaning device in dust tank);

4. Equipped with universal high pressure roadside cleaning, and front flush with low pressure pump;

5. Equipped with stainless steel high pressure pipeline, Schneider control switch, and American sensor;

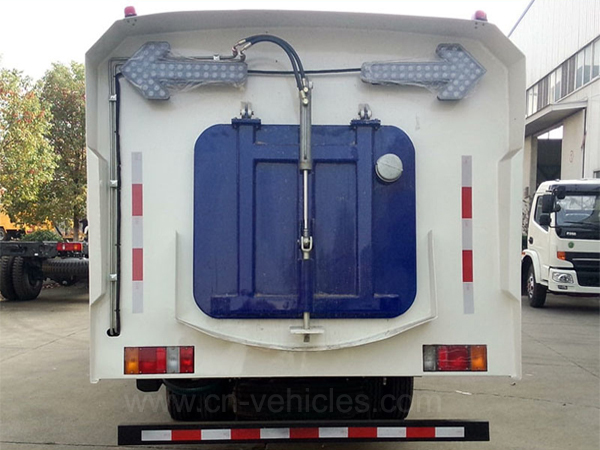

6. Equipped with anti-overflow or low water level alarm device in both water and dust tanks, rear LED arrow lights;

7. Equipped with indoor monitor in reverse and wash state;

8. Equipped with 18 meters high pressure rinsing reel, etc.

9. User‘s operation manual 1 set.

Optional Configuration

Snow shovel, foggy gun, aerial work platform, color is optional, etc.
