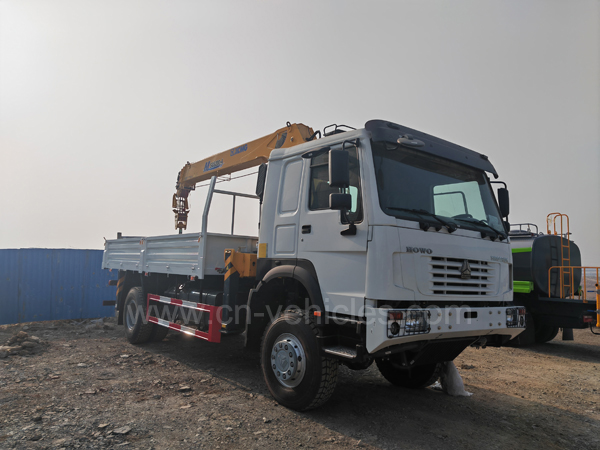

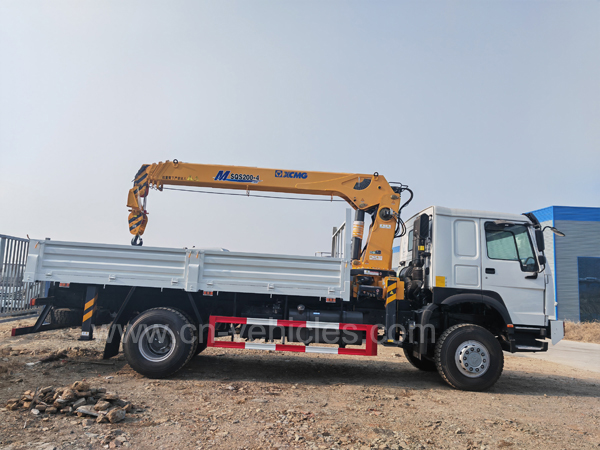

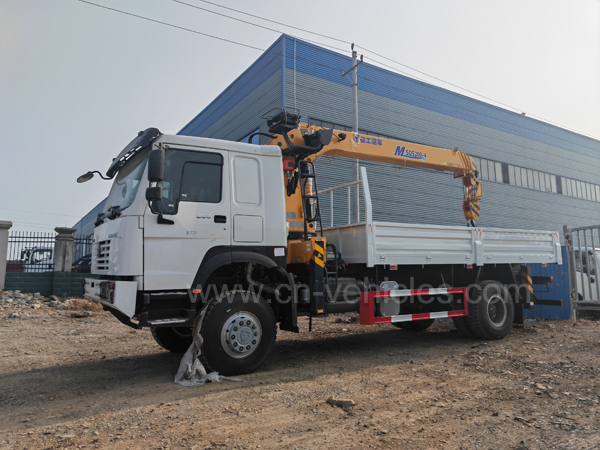

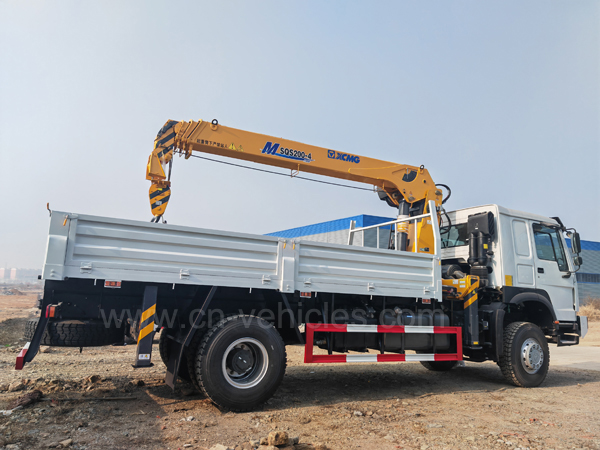

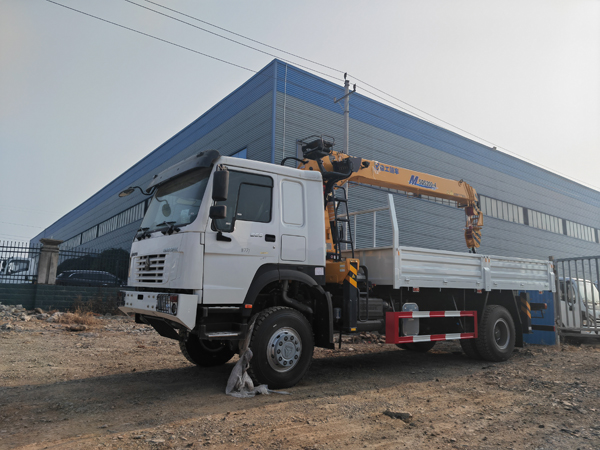

4wd full road condition SINOTRUK HOWO 6 wheelers truck 8tons knuckle telescopic boom crane
  • 4wd full road condition SINOTRUK HOWO 6 wheelers truck 8tons knuckle telescopic boom crane
  • 4wd full road condition SINOTRUK HOWO 6 wheelers truck 8tons knuckle telescopic boom crane
  • 4wd full road condition SINOTRUK HOWO 6 wheelers truck 8tons knuckle telescopic boom crane
  • 4wd full road condition SINOTRUK HOWO 6 wheelers truck 8tons knuckle telescopic boom crane
  • 4wd full road condition SINOTRUK HOWO 6 wheelers truck 8tons knuckle telescopic boom crane
  • 4wd full road condition SINOTRUK HOWO 6 wheelers truck 8tons knuckle telescopic boom crane
4wd full road condition SINOTRUK HOWO 6 wheelers truck 8tons knuckle telescopic boom crane
HOWO 4x4 chassis configuration: short cab, Chinese red,
ENGINE :weichai 260-horsepower engine, National V emissions,
Gear box :10-speed transmission
Description Get quotation

4x4 4wd full road condition SINOTRUK HOWO 6 wheelers truck 8tons knuckle telescopic boom crane


HOWO 4x4 chassis configuration: short cab, Chinese red,
ENGINE :weichai 260-horsepower engine, National V emissions,
Gear box :10-speed transmission,
Axles :9 tons on the front axle, 16 tons on the rear axle,
Frame : 320mm three-tier straight beam,
Tyres :8.25R20 Steel tire, ABS, driving recorder, remote throttle,
Oil tanker : 400L aluminum alloy tank,
air conditioner, headlight adjustment, brake adjustment arm.
crane :9-ton folding arm grab wood truck crane
crane Application occasions: loading and unloading and handling of strip materials such as wood, timber and industrial waste. The material for wood grab truck crane is Q550 + NM500.
It is very convenient and flexible to use. The wood grab truck crane is simple and convenient to operate. It can be rotated 360 degrees using the quick operation method, which replaces the original manual handling, saves manpower, and ensures safety.
Greatly improved the working efficiency of loading and unloading.

chassis brand

HOWO CLW  Multifunction  4x4  truck mounted crane van truck

wheelbase

4500mm

ENGINE

EURO 2,EURO 3,EURO 4,EURO 5

AIR CONDITON

WITH

drive type

LHD or RHD

certificate

GCC, ISO9001:2001,CCC


Crane Model

9ton straight arm type

Max Lift Capacity

9000kg

Slewing Angle

All rotation,360

Crane Weight

1850KG

grab

With quality hydraulic grab or not

9tons Crane information

• Crane model:SQ9SA3
• Max lifting mass: 9000 kg
• Maximum lifting moment : 200000 N.m
• Hanging arm type hexagonal cross section
• Slewing
• Swing speed :2r/min
• 4 sessions
• Rotary range :+ and -360 °
• Crane Length :4.5-13.5m
• H type legs
• The maximum operating radius :13.5m
• Across from :2.2-5.4 m
• Crane Out speed :6.8/35m / s
• Hydraulic system pressure :24MPa
• Fuel tank capacity :180 L
• From the arm speed :68/22° / s
• Crane weight: 3050 kg
• Maximum lifting height :15.5m
