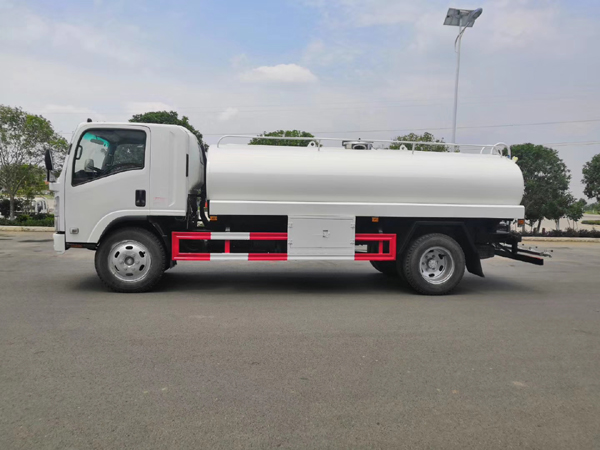

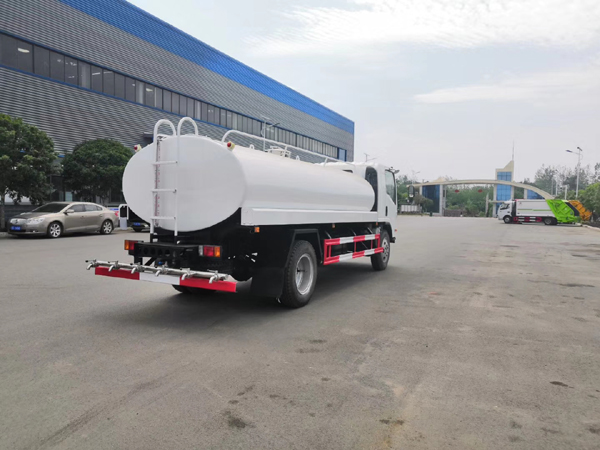

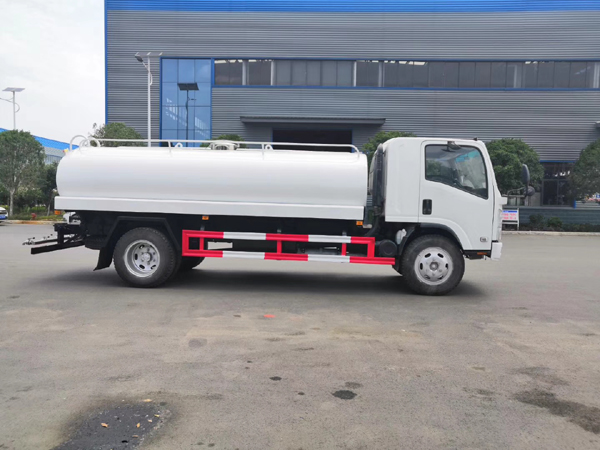

ISUZU Elf LHD 8 Cubic Meters 8m3 8ton 8000L Drink Water Transport Truck With Liquid Lever

Main Technology Parameter

Model Name

Isuzu water tanker truck 10000L

Driving Type

 4×2,left hand drive

Color

White,yellow,box can choose

Weights

Rated payload weight(kg)

10000

Curb weight(kg)

4500

Dimensions

Wheelbase(mm)

4475

Overall Dimension(mm)

7650*2300*2650

Box dimension

10000L(2700 gallon)

 Max speed(km/h)

110

Engine

Engine model

4HK1-TCG40(190HP)

Engine type

4 stroke water-cooled,inter-cooling

No. of cylinders

straight-6 cylinders

Displacement(L)

5.193L

Max. output (kw)

139kw

Drive Line

Transmission

MLD 6 speeds ,6 forwards,1 reverse gear,manual operation

Steering

Power steering

Brake

Oil brake  OR air brake

Cab

Cabin

Isuzu 700p

Standard configuration

with A/C,oil brake with vacuum booster pump,power steering

Axle

Front axle

4tons

Rear axle

 7 tons

Tire specification

Tire specification

8 .25R16 ,8.25-16 standard tire,6 tires+1 spare tire

Water truck

Water tanker material

Stainless steel 304-2B Food grade

Introduction

1. Suction≥7m  Sprinkler width≥14m   Range≥28m

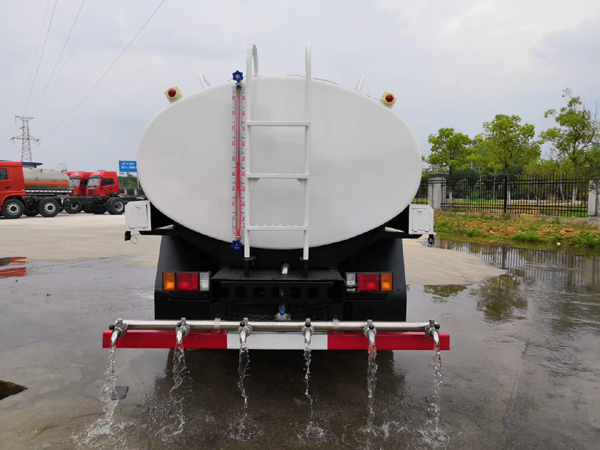

2. with front spout, back spill and side spout function

3. with the working platform at the back, wich can be installed green high-pressure water spray gun.(The spray gun shape can be adjustable: heavy rain, moderate rain, drizzling rain or haze.)

4. Provide the best high-power sprinkle pumps quality of the national,And with fire coupling, self-flow add self- priming function.

Manhole

Man way access hole on top of tank;1 units DN500mm manhole

Horse reels

Two hose reels at each side of the truck

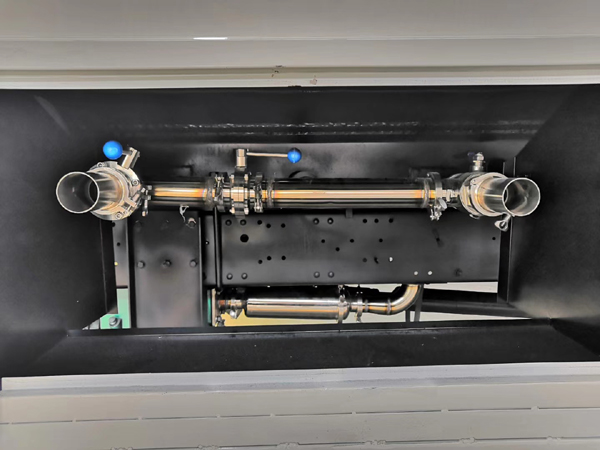

Water pump

Water pump model: CLW80QZF-60/90N (N/S)

Water pump flow rate(L/m): 60m3/h

Head of delivery(m): 90m

Self-priming function(min/4m):1.5

Efficiency(%):95%

Related rotate speed(r/min)1180

matched power(kw):22
