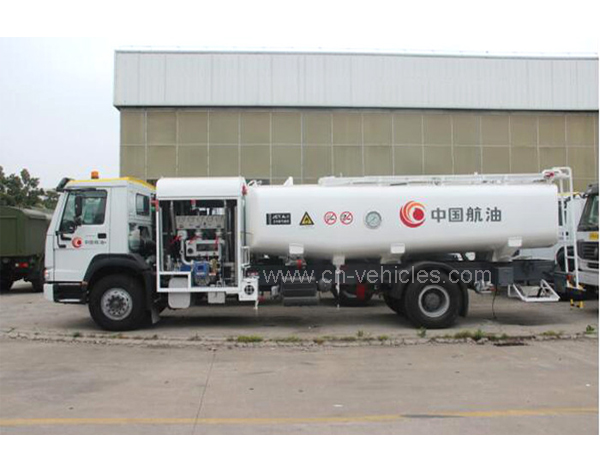

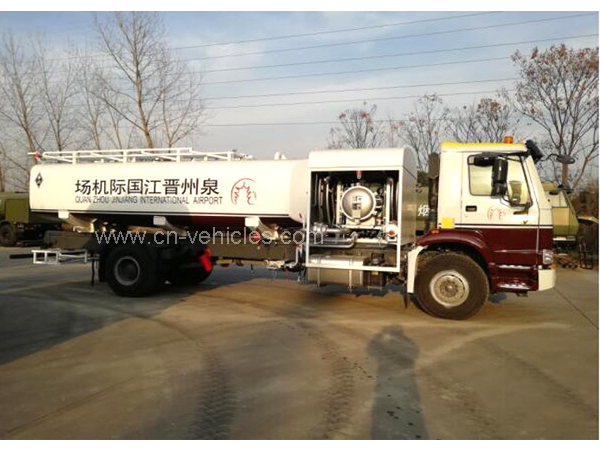

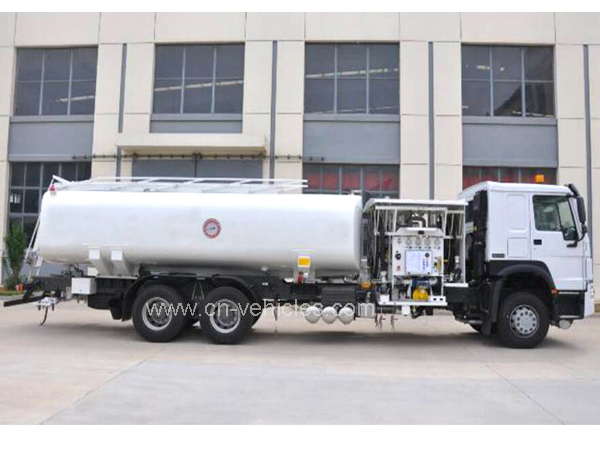

Howo Sinotruck 22CBM 15tons 18tons Aviation Kerosene Dispenser Refueling Truck

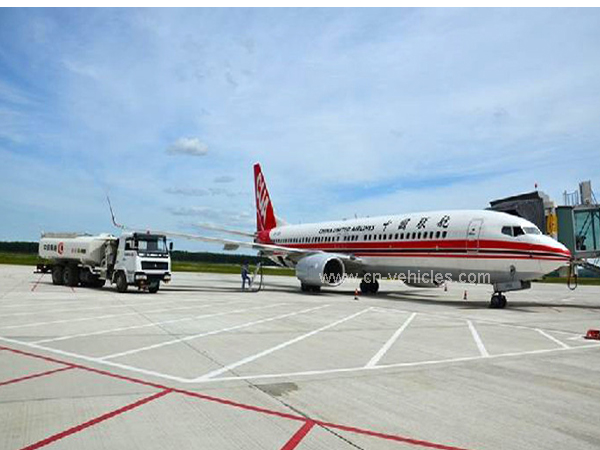

1. Purpose: It used for helicopter refueling and mobile transporting aviation kerosene.

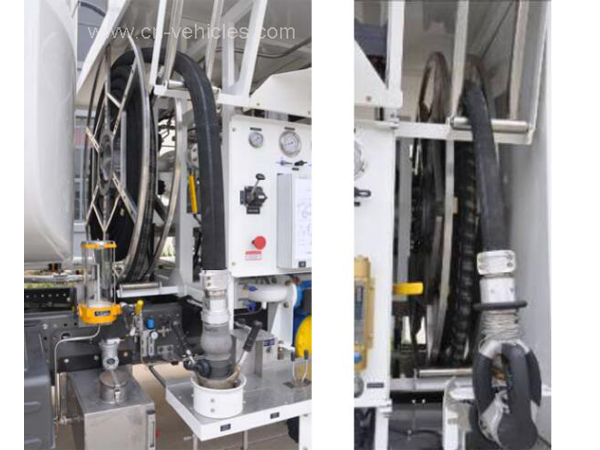

2. Main parts: Fuel pump, flow meter and filling gun etc.

3. Advantage: Top quality Jets Refueling Truck with competitive price.

Description FEEDBACK

 Howo Sinotruck 22CBM 15tons 18tons Aviation Kerosene Dispenser Refueling Truck

 1. Purpose: It used for helicopter refueling and mobile transporting aviation kerosene.

2. Main parts: Fuel pump, flow meter and filling gun etc.

3. Advantage: Top quality Jets Refueling Truck with competitive price.



Condition

New condition/Left hand drive/6x4

Chassis

Brand

SINOTRUK

Model

HOWO

Curb weight(kg)(Whole Truck)

13000 kg

Loading weight(kg)

20000 kg

Wheelbase(mm)

5600+1400 mm

Front/Rear axle loading weight(kg)

7000/13000/13000 kg

Dimensions(mm)(Whole Truck)

11175*2480*3091 mm

Front/Rear overhang(mm)

1500/2675 mm

Approach/Departure angle(°)

20/14°

Max. driving speed(km/h)

80 km/h

Clutch

Reinforced diaphragm clutch

Brakes

Service brake: dual circuit compressed air brake Parking brake:(emergency brake): spring energy, compressed air operating on rear wheels

Auxiliary brake: engine exhaust valve brake

Steering Gear

Power steering, hydraulic steering with power assistance

Tire

Quantity

10pcs with one spare tire

Specifications

12.00R20/12R22.5

Fuel tank volume(L)

400 L

Transmission

Manual type, 10 Forwards and 2 reverses

Steering

Power steering, hydraulic steering with power assistance

Cabin

It can accommodate three people, With Air conditioner

Engine

Brand

SINOTRUK

Model

WD615.47

Fuel type

Diesel

Displacement(ml)

9726 ml

Power(kw)

273 kw

Horsepower(HP)

371 HP

Cylinder number

6 pcs

Rated speed(rpm)

2500 rpm

Emission standard

Euro 2

Upper & Equipment

Fuel tank

Capacity(cbm)

20.0 cbm

Tank material

Aluminium alloy

Compartment quantity(pcs)

1 pcs

Filling medium

Aviation kerosene

Piping system

Stainless steel

Manhole

Quantity(pcs)

2 pcs

Size(mm)

500 mm

Filter

International brand filter

Remarks

Pls directly contact with us for more technical parameters
