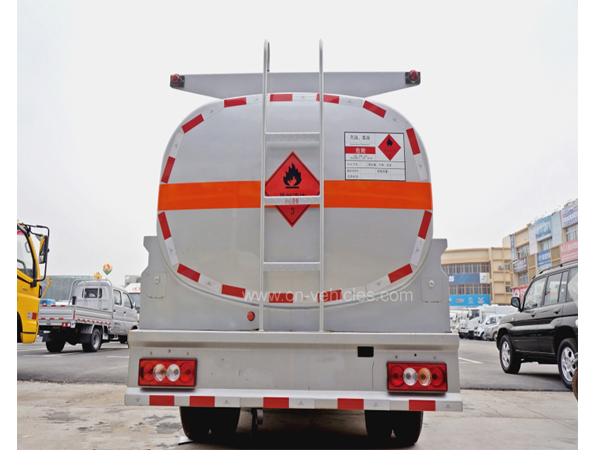

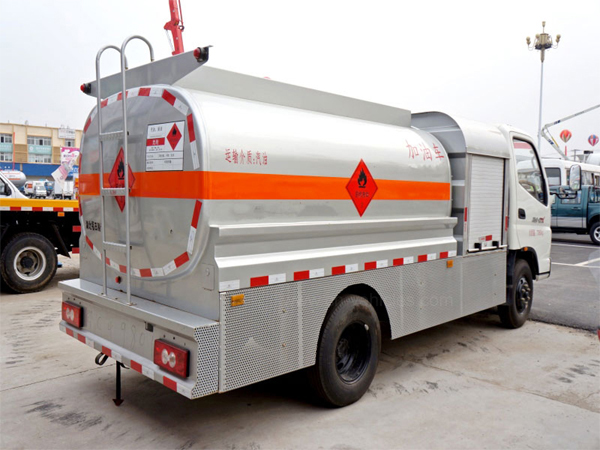

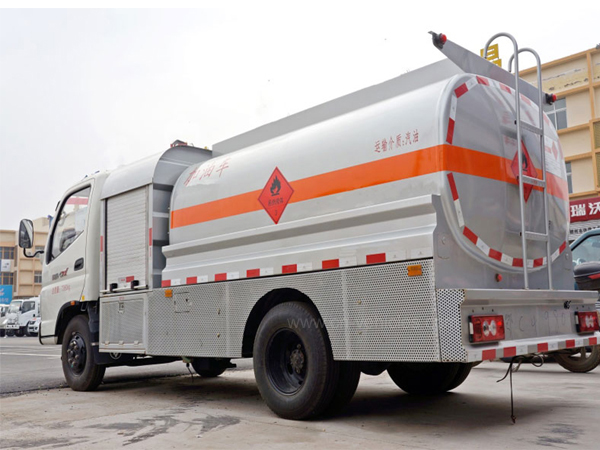

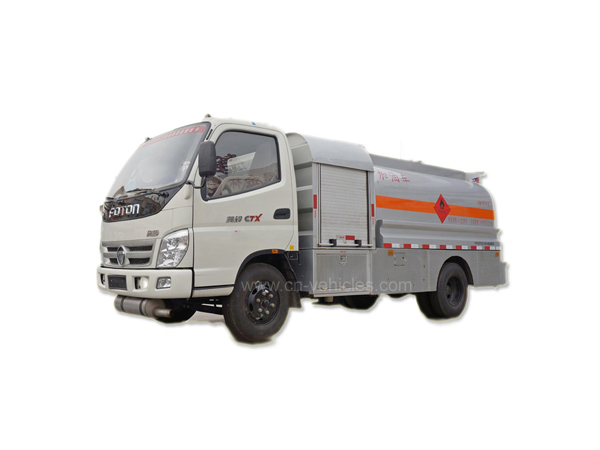

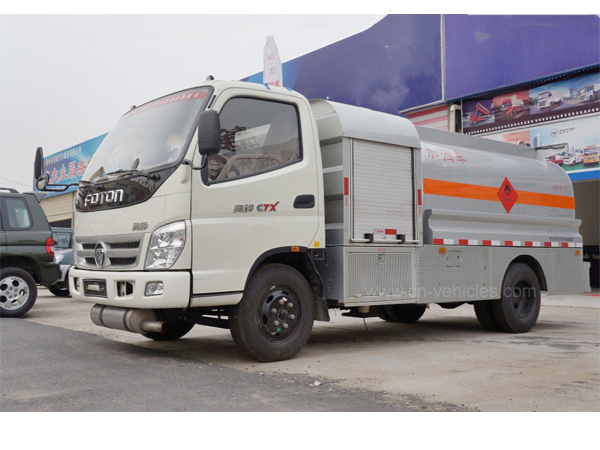

Foton 8 Cubic Meter Fuel Tanker Refueling Truck For Sales

Refueling Truck is a vehicle for transporting oil materials.It‘s a Mobile Oil Station Supplying to Trucks & Cars The filling machine can be installed in the front part of the tank or in the lower part of the truck body. We Can supply different chassis brand, such as Dongfeng, Sinotruk, FORLAND, FOTON, JAC, ISUZU, FAW, Tanker volume is from 3m³ to 35m³.

Description FEEDBACK

Foton 8 Cubic Meter Fuel Tanker Refueling Truck For Sales



Refueling Truck is a vehicle for transporting oil materials.It‘s a Mobile Oil Station Supplying to Trucks & Cars The filling machine can be installed in the front part of the tank or in the lower part of the truck body. We Can supply different chassis brand, such as Dongfeng, Sinotruk, FORLAND, FOTON, JAC, ISUZU, FAW, Tanker volume is from 3m³ to 35m³.

3 tons to 5 tons of small oil tanker is the best selling truck, for the shuttle and the construction site between the country flexible and convenient oil depot closer to the refueling point, 6 to 9 tons is generally suitable for engineering machinery a little more than a little more than a little more, more than 9 tons is generally suitable for refueling points far away from the distance factory distance, there are more than 9 tons of cars.When you choose a tanker, customers must choose the most suitable tonnage vehicle according to their own conditions.



1.    Oil Filling Display in Liter, Price & Amount.
2.Automatic Oil Filling & Shut-off Controlled Computer.
3.Galvanized  Steel Filling Gun with Rust Proof.
4.Hose Length Can be Made as Per Request.
5.Explosive Proof Design Supply to International Oil Company.

Item No.

Parameters

Overall Dimension

6525×2052×2160(mm

Gross Vehicle Weight

11495kg

Curb weight

4000 kg

Loading Weight

7495 kg

Wheel Base

3650 mm

Wheel track (front/rear)

1130 /1745 mm

Approach/Departure

angle(°)

21/17

Engine

Chaochai CY4102-C3F

Engine horsepower

95 HP Euro III

Displacement

3.856L(Diesel)

Cabin

3passengers

Max Driving Speed

95km/h

Type

4-cylinder in-line with water coolingturbo-charging and inter-cooling

Full loading Fuel

Consumption Rate

≤210g/kW.h

Rated speed

3200rpm

Tire

7.00R166pieces

Tank Capacity

8 cubic meters

Tank Material

Q235 High Tension Steel, 6mm Thick Carbon Steel, Ball Valve for gravity

discharging,Emergency Cut Off valve.Customized Tank Color, Can also

Paint Customer‘s Logo or Advertisement on Tank

Compartments

2-3

Oil dispenser device

1.Pump, Dispenser, Filling Guns All in Only Unit

2.Oil Filling Hose & Gun


Working Video
