Dongfeng 5CBM Fuel Tank Truck

Fuel tank truck: according to the different types of transport medium, configuration and different places called, there are many different titles, such as tank car, tank truck, oil truck, oil supply car, oil puller, flow refueling car, tax control refueling car, computer tanker, diesel transporter, gasoline transporter, coal tar carrier, Lubricating oil transporters, edible oil transport vehicles, crude oil transporters, heavy oil transporters, oil tanker and so on.

Description FEEDBACK

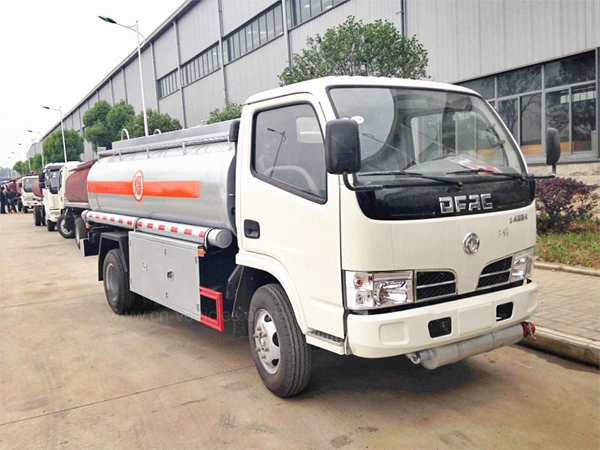

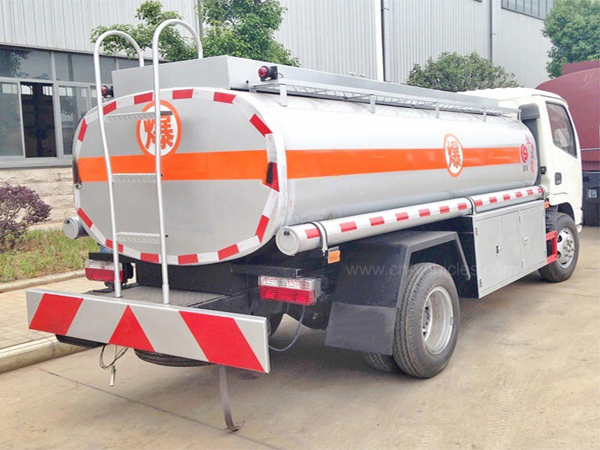

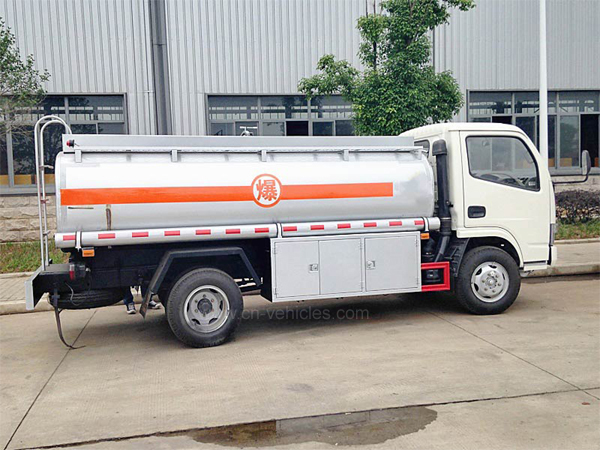

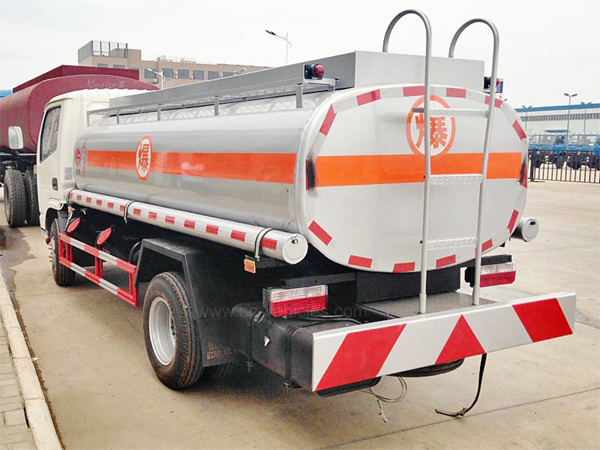

4X2 Dongfeng 5CBM Fuel Tank Truck

Fuel tank truck: according to the different types of transport medium, configuration and different places called, there are many different titles, such as tank car, tank truck, oil truck, oil supply car, oil puller, flow refueling car, tax control refueling car, computer tanker, diesel transporter, gasoline transporter, coal tar carrier, Lubricating oil transporters, edible oil transport vehicles, crude oil transporters, heavy oil transporters, oil tanker and so on.



All the tank trucks can be designed as chemical vehicles, all kinds of heating and insulation tanks; all the tank cars can be equipped with computer tankers; wide range of tonnage selection to meet the user‘s needs; the tank has multiple anti wave baffles. High pressure gas leakage test is used to make the tank body with high strength, stable center of gravity and safe and stable transportation of vehicles.





1. DONGFENG Chassis, with advanced technology and reliable performance.

2, Two options, elliptical or circular rectangular structure, through three-dimensional design, the use of advanced processing technology to complete.

3. The tank body is made of high quality carbon structural steel plate rolled and welded. The standard ends are used at both ends, and the optimized variable cross-section longitudinal beams are below the tank body.

4. The series of oil trucks are used by the company‘s mature semi trailer technology, choose the full bearing, half bearing and other structures, and add the pipeline system and pipe box to the outside of the tank. It is suitable for the transportation of large and medium tonnage oil.

Item No.

Parameters

Overall Dimension

5060×1855×2070(mm

Gross Vehicle Weight

4150kg

Curb weight

3670 kg

Loading Weight

2350 kg

Wheel Base

2800 mm

Overhang (front/rear)

10132 /1228 mm

Approach/Departure

angle(°)

19/16

Engine

Changchai 4B22TCI

Engine horsepower

75 HP Euro III

Displacement

2.156L(Diesel)

Cabin

2/3passengers

Max Driving Speed

85km/h

Type

4-cylinder in-line with water cooling

Tire

6.50R156pieces

Tank Capacity

3 cubic meters

Tank Material

Q235 High Tension Steel, 6mm Thick Carbon Steel, Ball Valve for gravity

discharging,Emergency Cut Off valve.Customized Tank Color, Can also

Paint Customer‘s Logo or Advertisement on Tank
