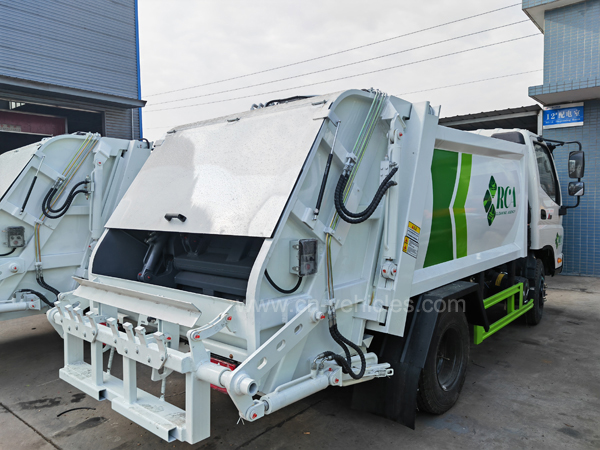

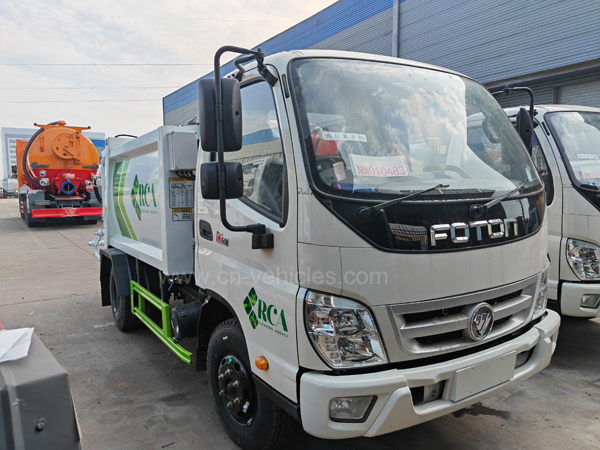

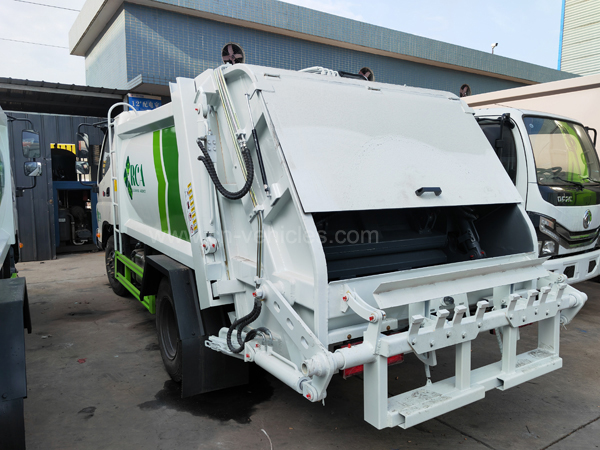

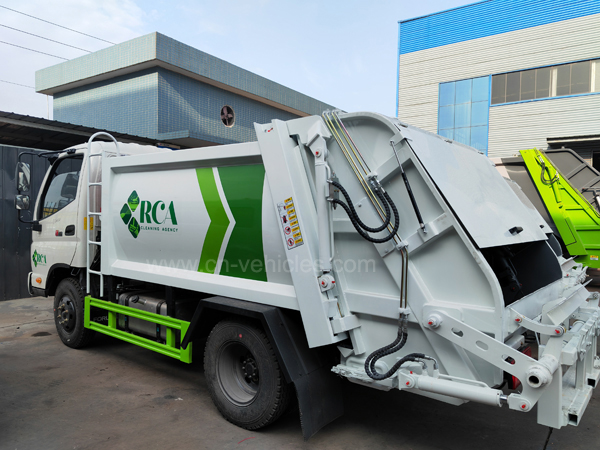

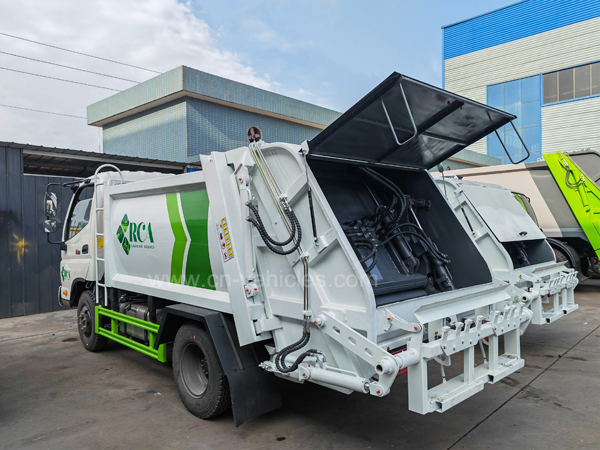

Foton Aumark 6cbm Waste Compactor Compact Garbage Truck

Garbage Compactor Truck, also called Compressed Garbage Truck, Compactor Garbage Truck, Compressed Garbage Truck, Rear Loader Garbage Compactor Truck, Waste Compactor Truck, Waste Compressed Truck, Refuse Compactor.

Description Get quotation

Foton Aumark 6cbm Waste Compactor Compact Garbage Truck

How the Garbage Compactor Truck Works?

The garbage compactor trucks are loaded by sanitation engineers along neighborhood streets. The trash is loaded into a hopper in the back of the truck of rear loaders. Hydraulic cylinders operate the compacting mechanism, which takes the trash out of the hopper and places it into the body of the truck.

How much does a Garbage Truck hold?

Different types of garbage trucks that hold different amounts of waste. The truck that comes through your neighborhood can hold anywhere from 5 tons to 22 tons of waste.

The available chassis brands for Garbage Compactor Truck are ISUZU, SINOTRUK, DONGFENG, FAW, FOTON, JAC, JMC, HYUNDAI, etc.

Product Name	Foton 6 Wheels 6cbm 6m3 Garbage Compactor Trucks Compact Garbage Trucks
Overall Dimension	5875x2030x2230mm
Tare weight	2600kg
Gross Vehicle Weight	6495kg
Wheelbase	3360mm
Engine model	F3.8s3141
Horse power	105hp
Displacement	3760ml
Emission standard	Euro 3
Gearbox	6 forwards & 1 reverse
Tire	7.00R16, 6pcs with 1 spare
Body
Garbage Tank Volume	6cbm
Material	Carbon steel
Volume of filler	1cbm
Side thickness	3mm
Bottom thickness	4mm
Front drain tank	80L
Rear drain tank	200L
Hydraulic system
Dozer cylinder	1
Scraper cylinder	2
Skateboard cylinder	2
Rear flip cylinder	2
Lifting cylinder	2
Hydraulic tank	80L
Hydraulic oil pump	Hefei Wanye Oil Pump
Multi-way valve	Yangzhou Zhongmei multi-way valve
Electric control system
Operating system	Taiwan Yonghong PLC electric control system and manual operation device
Electronic control operation button	1 set in the cabin, 1 set at the left and right of the rear of the body (3 sets total)
Manual operation device	1 set behind cab
Pressing system
Rated pressure	18Mpa
Recycling time	≤25s
Dumping time	≤35s

Foton Aumark 6cbm Waste Compactor Compact Garbage Truck
