China Euro4 5tons JAC Hydraulic Open Type Wing Van Truck
The wing van truckis also called wing body truckwingspan truckwing open box truck, etc. The wing van truck is consisted of truck chassis, box body, hydraulic system, operation system, etc. The plate of the box usually can be opened by hydraulic or pneumatic cylinders.
Description FEEDBACK

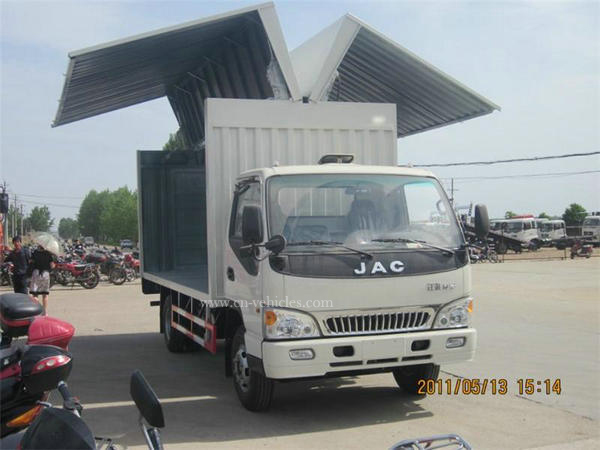

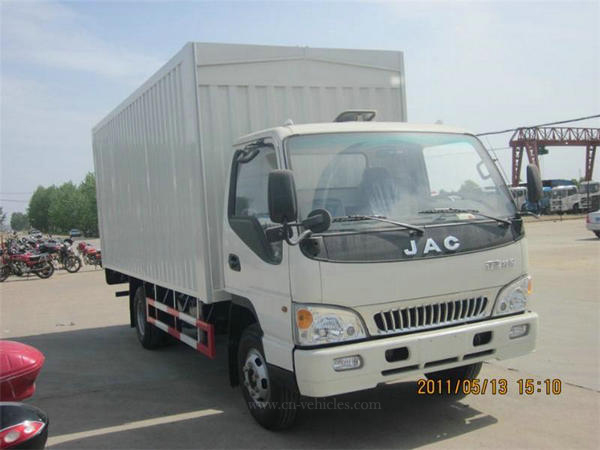

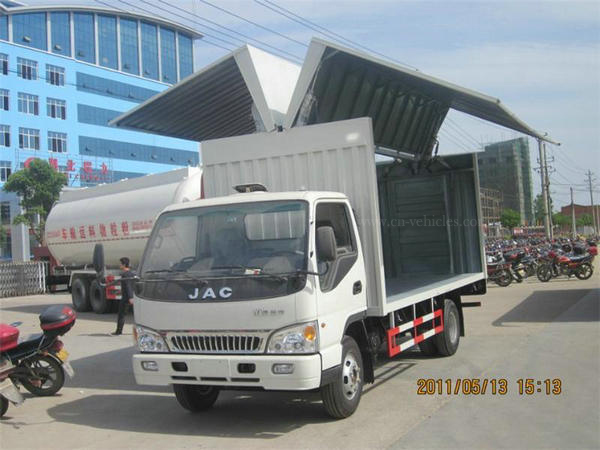

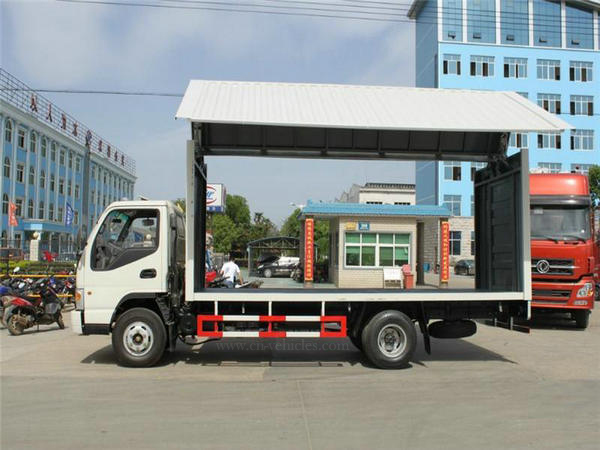

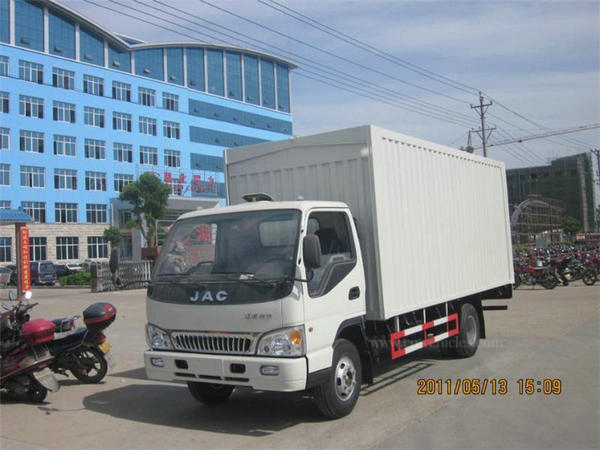

China Euro4 5tons 4*2 JAC hydraulic open type wing van truck

The wing van truckis also called wing body truckwingspan truckwing open box truck, etc. The wing van truck is consisted of truck chassis, box body, hydraulic system, operation system, etc. The plate of the box usually can be opened by hydraulic or pneumatic cylinders.

Due to the side and top of the box can be opened that make its space is larger than ordinary box truck, the wing van truck is very popular. When it is opened, you can load and unload at side of the truck, more convenient and high efficiency.

Technical Parameters of JAC 5 tons 4x2 wing van truck
Items Descriptions Specifications and Types
General  Truck Name  Box truck
Drive Type  4*2, left hand drive
Gross Vehicle Weight(kg) 11900
Curb Weight (kg)  6490
Overall Dimensions L*W*H(mm) 8390×2280×3630
Engine Engine Model  ISF3.8S4141
Fuel Type  Diesel
Power  105KW/143HP
Emission Standard  Euro IV
Displacement(ml)  3760
Engine Type 4 cylinders in line,water cooling, turbo-charged diesel engine,inter-cooling
Chassis  Chassis Brand JAC
Front/Rear Axle Load(KG)  4370/7530
Tire No. 6
Tire Specification  8.25R20 steel tire
Wheelbase (mm)  4700
Axle No.  2
Gear Box  5 speed forward with 1 reverse, manual
Brake  Oil brake with exhaust brake
Radiator  Suitable for tropical climate
Cold Room Box inner dimension(mm) 6150x2170x2300
Box Material corrugated sheet
