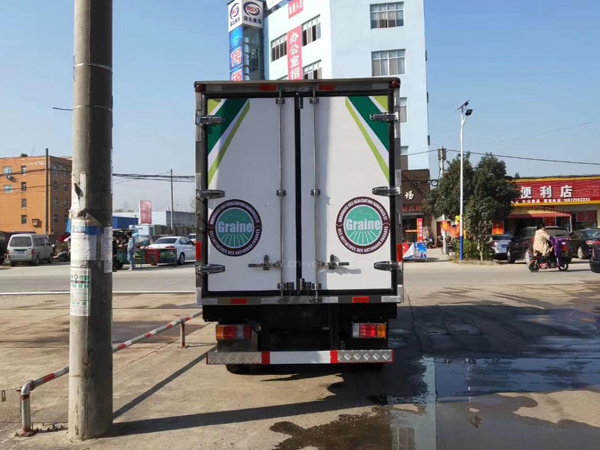

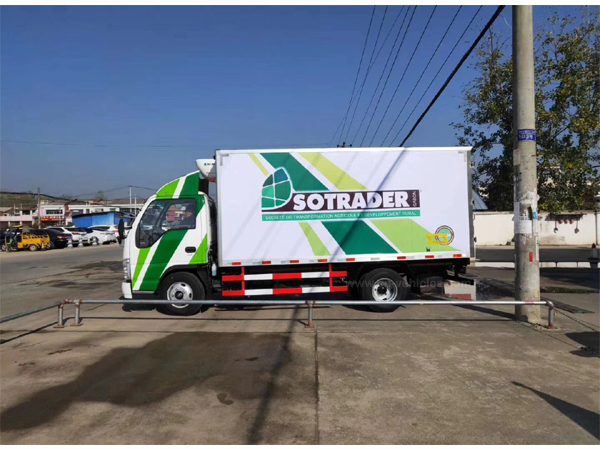

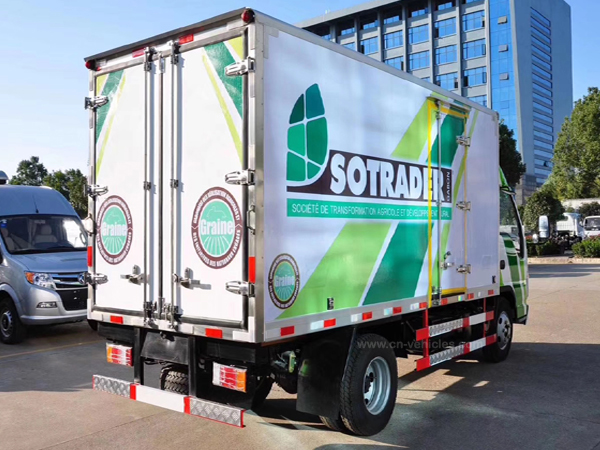

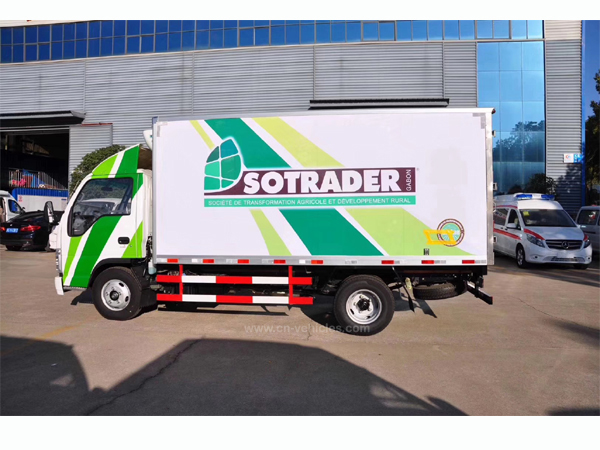

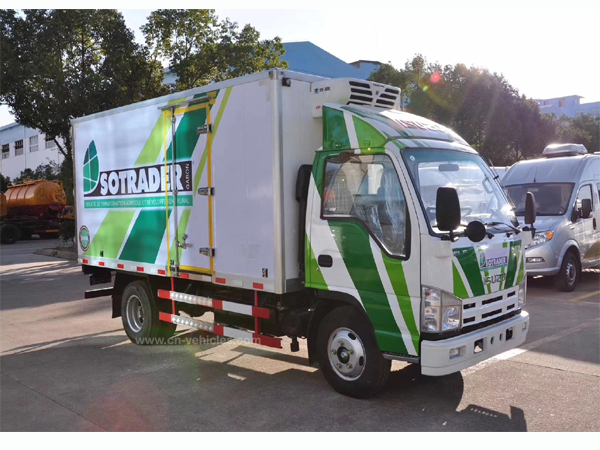

Isuzu 3 Ton 5 Ton 10 Ton Freezer Truck Refrigerator Truck Refrigerated Truck We Export to Gabon

Refrigerator truck is also called refrigerator truck, refrigerator wagon, refrigerated box truck,freezer wagon,temperature controlled truck,freezer truck. It is used to transport frozen or fresh goods, fresh Milk ,fresh vegetables and fruits, vaccine drugs etc. It is equipped with a refrigeration unit and polyurethane insulated van.

Description Get quotation

ISUZU 4X2 3 ton 5 ton 10 Ton Freezer Truck Refrigerator Truck Refrigerated Truck We export to Gabon

Chassis brand

CNHTC , Beiben trucks , Shacman trucks , FAW trucks , ISUZU ,Hongyan trucks,FOTON trucks , Dongfeng trucks , JAC trucks

Technical date:

Basic Information of Japan 700P refrigerator truck 8 ton refrigerator freezer truck
Outline size(L×W×H) (mm)	750023203460	Cargo inline size(L×W×H)(mm):	5120×2050×2100
Rated load(kg)	5700	GVW(Kg):	10900
Curb weight(kg)	5200	Emission standard	Euro 4
Engine Information
Model	4KH1-TCG40	Type	Diesel engine
Model	4KH1-TCG40	Type	Diesel engine
Power/discharge (KW/ml)	190HP /5193ML	Manufacture	ISUZU
Chassis Information
Wheelbase(mm):	4175	Axle load(kg) F/R	3360/6695
Tire	8.25-20	Max speed (km/h):	95
Front overhang(mm)	1110	Rear overhang(mm)	2215
Front track(mm)	1680	Rear track(mm)	1650
Approach angel(°)	21	Departure angle(°)	12
Steering	steering wheel	Brake	Air brake
Cabin	Straight head 1 rows 2 doors ,allowable 3 persons
Special function
1. -18°C good refrigerator units ,the temperature is adjustable
2. 8cm thickness Best Glass steel container body, thermal insulation effect is very
good. open the left side door.
3. The original ISUZU tires, air conditioning, engine ,Quality assurance
We are professional to do the refrigerator trucks, absolutely guarantee the quality
of products and the effect of cold storage .
