Biggest and most professional china supplier vacuum road sweeper truck for street sweeper car use
  • Biggest and most professional china supplier vacuum road sweeper truck for street sweeper car use
  • Biggest and most professional china supplier vacuum road sweeper truck for street sweeper car use
  • Biggest and most professional china supplier vacuum road sweeper truck for street sweeper car use
  • Biggest and most professional china supplier vacuum road sweeper truck for street sweeper car use
Biggest and most professional china supplier vacuum road sweeper truck for street sweeper car use
1.Stainless steel garbage tank,water tank

2.Maintenance free blower with high quality,and maintenance free automatic clutch;

3.Hydraulic oil pump imported from Italy, long service life, stable and reliable, low failure rate;

4.Hydraulic valve imported form Germany;

5.The hydraulic lines using the German standard technical seal structure, good shock resistant performance, high sealing reliability,can realize no leakage seal effect;

6.The key electronic components using French Schneider technique
Description Get quotation

Biggest and most professional china supplier vacuum road sweeper truck for street sweeper car use


1.Stainless steel garbage tank,water tank

2.Maintenance free blower with high quality,and maintenance free automatic clutch;

3.Hydraulic oil pump imported from Italy, long service life, stable and reliable, low failure rate;

4.Hydraulic valve imported form Germany;

5.The hydraulic lines using the German standard technical seal structure, good shock resistant performance, high sealing reliability,can realize no leakage seal effect;

6.The key electronic components using French Schneider technique

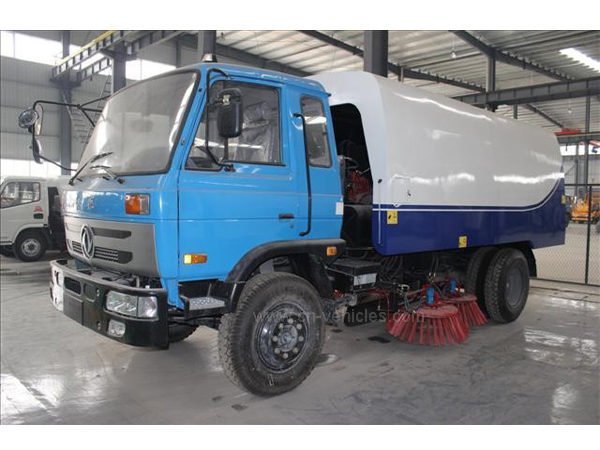

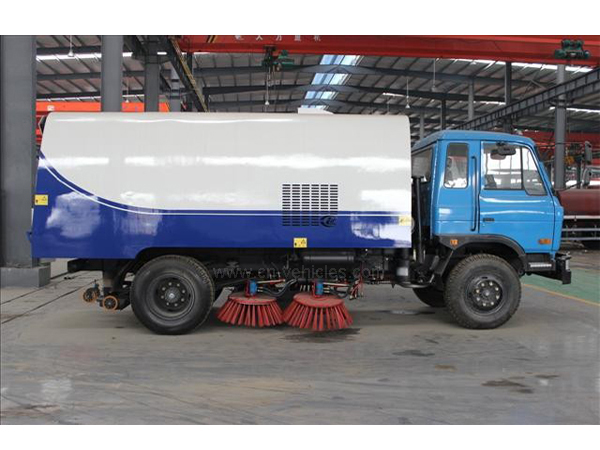

Product Name

Dongfeng153 6m3 road sweeper

Product Model

dongfeng

Main parameters

Overall size(L*W*H)

8850,8650,8150,7950×2480×3100mm

Gross weight

15900kgs

Rated capacity

6660kgs

Curb weight

9045kgs

Approaching/Departure Angle

23/13,23/12,22/13,22/12(°)

Front/Rear suspension

1250/2000,1250/2300
1450/2000,1450/2300mm

Axle loading

5950/9950

Max.speed

80km/h

Chassis

Chassis Brand

Dongfeng

Chassis model

EQ1168VFJ1

Drive type

4X2, LHD/RHD

Fuel Type

Diesel

Tire Specification

9.00-20,9.00R20,10.00-20,10.00R20

Tire No.

6

Wheelbase

3800,3950,4200,4500,4700,5100mm

Alex No.

2

Leaf Spring No.

9/10+8

Front trend

1920,1960mm

Rear trend

1860mm

Passengers in cab

3

Engine

Manufacturer

Guangxi Yuchai Machinery

Model

YC6J180-46

Horse Power

180HP

Displacement/Power

6494ml/132kw

Emission standard

Euro 4



Important Sweeping Capacity Parameters

Item

Parameters

Auxiliary engine model

Cummins

Auxiliary engine power

140hp

Maximum speed

≥95km/h

Cleaning width

≥2.8-3.3 m

Water tank volume

3.5m3

Garbage box volume

6m3

Operating speed

3~15km/h

Maximum operation ability

5000m2/h

Maximum suction size

100mm

Cleaning efficiency

≥99%
