JAC Mini 1500 liter Tanker Sewer Suction Truck With Jetting Pump

Vacuum sewage suction truck is used for removing and transporting sand, stones, grease, sludge and other debris from sewage pipelines and / or sanitary sewer by vacuum suction pump.



Description FEEDBACK

JAC Mini 1500 liter Tanker Sewer Suction Truck With Jetting Pump



Vacuum sewage suction truck is used for removing and transporting sand, stones, grease, sludge and other debris from sewage pipelines and / or sanitary sewer by vacuum suction pump.



It also could provide efficient solution to industrial vacuum requirement . Hydraulic system and pneumatic components could be added to fulfill the requirements of specific operations.

1.Model: CLW5045GXWB,
2.Overall dimensions is 4590,4890,5090X1620X2450(mm).
3.This small size sewer suction truck is made up of Foton chassis,together with Quanchai engine,68HP.This waste water suction truck will be useful and effecive for you.

Parameters

Name

1.57CBM Sewage Suction Truck

Item

Specifications

Item

Specifications

Truck

Model

CLW5045GXWB

Gross Weight (kg)

3620

Overall dimensions

4590,4890,5090X1620X2450(mm)

Payload (kg)



Wheelbase (mm)

2300, 2600, 2800

Curb Weight (kg)

2290

Front Track (mm)

1,300

Approach Angle

22°

Rear Track (mm)

1,240

Departure Angle

20°

Number of axles

2

Number of Tyres

6





Tyre Specification

6.00-13 8PR,6.00-14 10PR

Max speed (km/h)

90

ABS

Paint

White, Blue, etc

Allowable Cab Passengers

3

Front Overhang (mm)

990

Rear Overhang (mm)

1300

Chassis

Model

BJ1042V9JA5-X2

Brand

JAC

Emission Level

Euro 4

Axle Load

1450/2170

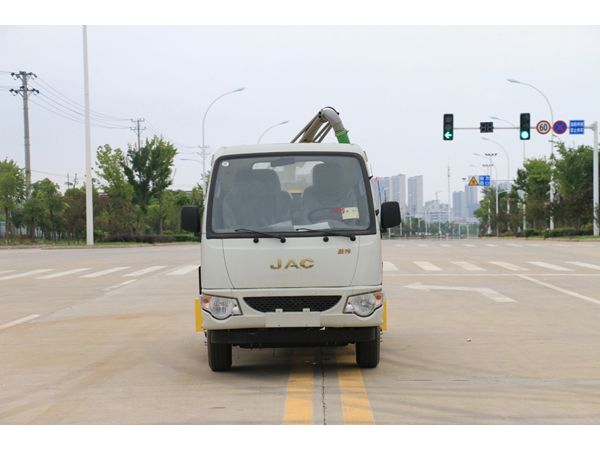

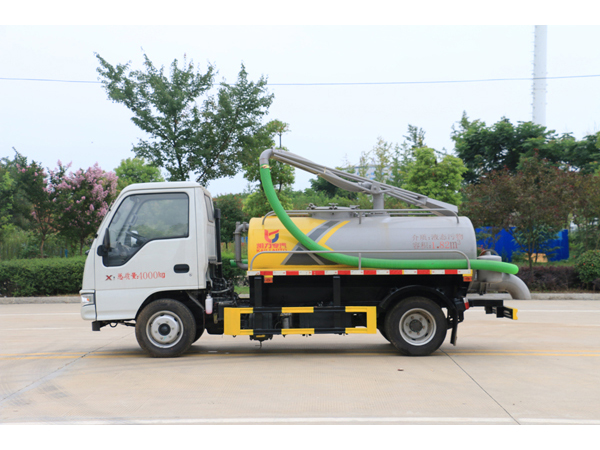

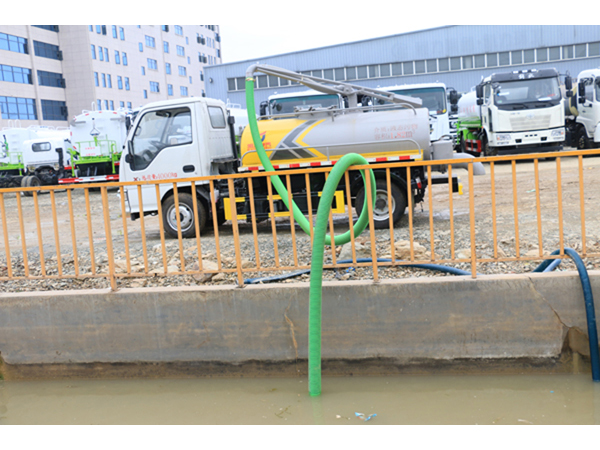

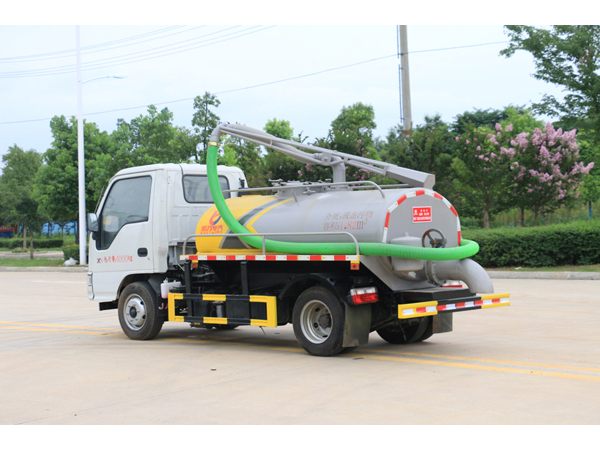

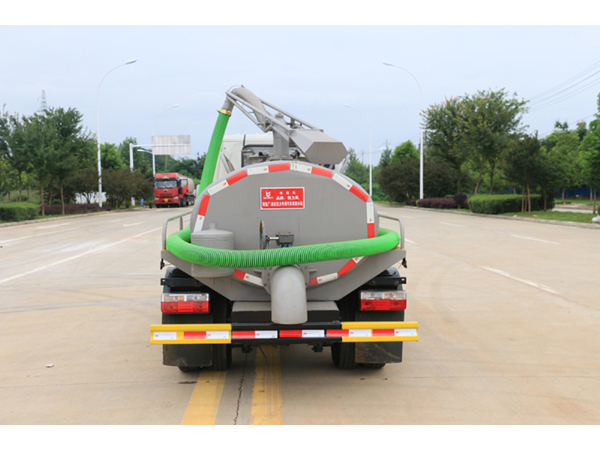

JAC Mini 1500 liter Tanker Sewer Suction Truck With Jetting Pump Truck picture:
