Sinotruk HOWO 15000L Vacuum Sewage Jetting Tank Truck With Jurop Pump

15000L Sewage Tank

Italain BP/BP/MORO Pump

Sewage Suction & Jetting

Auto Tipping & Washing

Description FEEDBACK

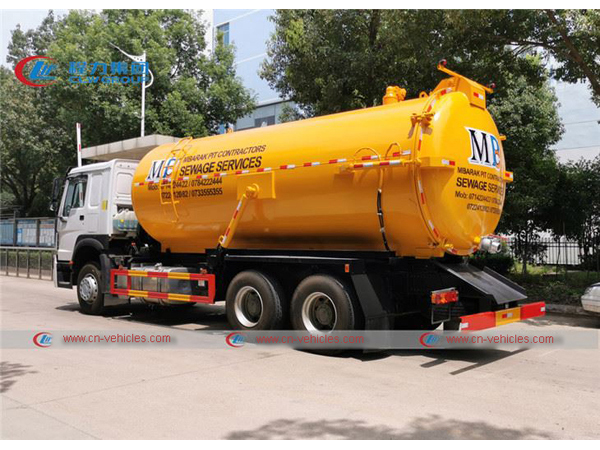

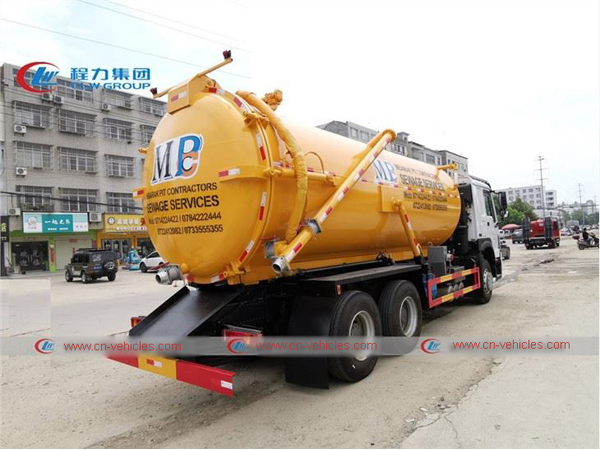

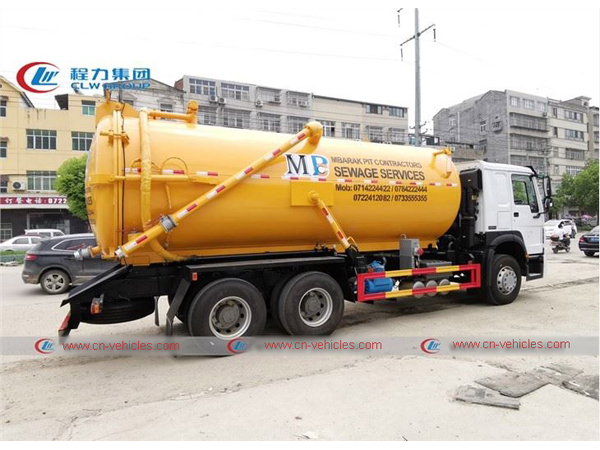

Sinotruk HOWO 15000L Vacuum Sewage Jetting Tank Truck With Jurop Pump


15000L Sewage Tank

Italain BP/BP/MORO Pump

Sewage Suction & Jetting

Auto Tipping & Washing



Description:
1. Chassis:
1) Drive type: 4x2, 4x4, 6x4, 8x4 etc.
2) Our factory has good business relationship with DONGFENG, FOTON, ISUZU, FAW, SINOTRUCK, SHACMAN, JAC, JMC, etc.
2. Tanker body:From 2m3 to 25 m3 capacity.

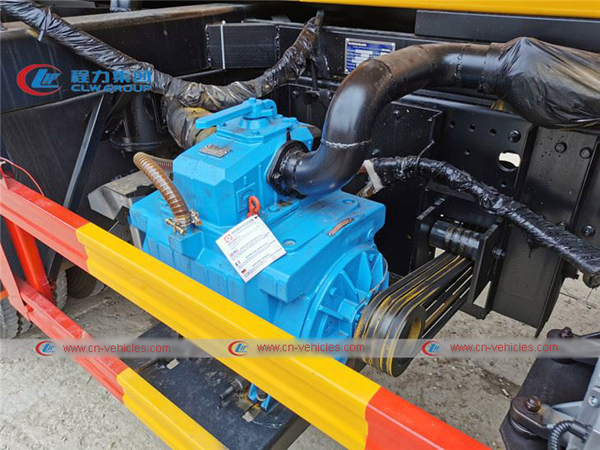

3. Accessory of sewage suction factions: Equipped with PTO, transmission shaft, vacuum suction sewage pump, high pressure molding tank, moisture separator, gas-oil separation, multiple directional control valve, hanger rod, self-discharging valve, suck fecal gun and pipe network system.


The Parameters of Sinotruk HOWO 15000L Vacuum Sewage Jetting Tank Truck With Jurop Pump

Name

Sewage Suction Truck

Dimension(LxWxH)

9950X2490X3350(mm)

Total Mass

29005 Kg

Rated Payload

20000 Kg

Kerb Weight

9005 Kg

Passenger

3

Approach/Departure Angle

32/14

The Parameters of Chassis



Manufacture

Howo

Driving Type

6*4 left/right hand drive

Wheel Base

4300+1350 mm

Gearbox

Seven/Eight speed lever with six/seven speed forward and one reverse, manual

Front/Rear Track

1940/1860/1860(mm)

Tyre

10.00-20

The Number of Tyre

10+1(spare tyre)

Front/Rear Suspension

1245/3055,1245/3005(mm)

Leaf Spring Number

8/13,8/12

The Paremeters of Engine

Rated Power

210hp/155kw

Fuel Type

Diesel oil

Displacement/Capacity

5900ml

Emission Standard

Euro3

Cylinder

Straight/6/intercooling

Max. torque

700N.m

Velocity

2500rpm



Working Video
