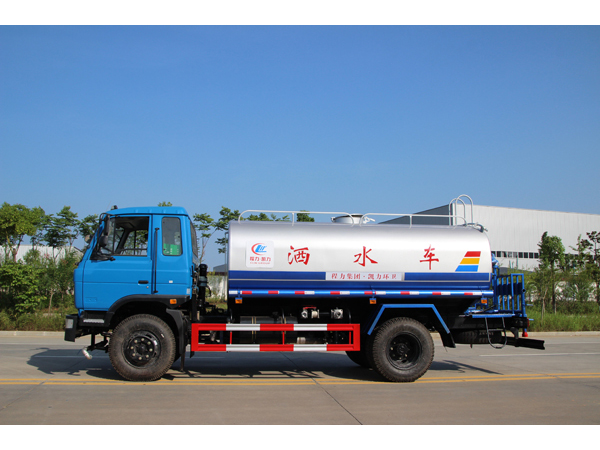

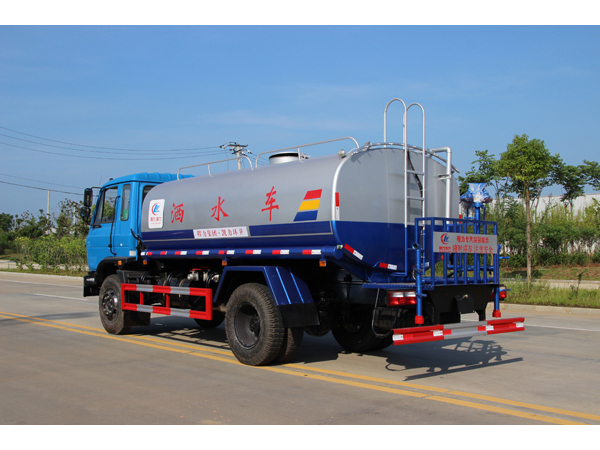

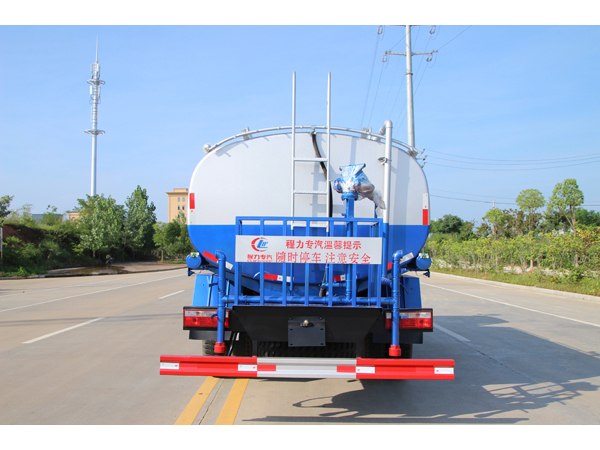

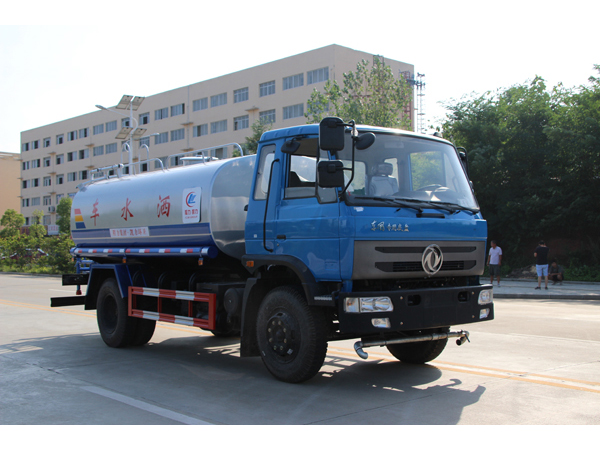

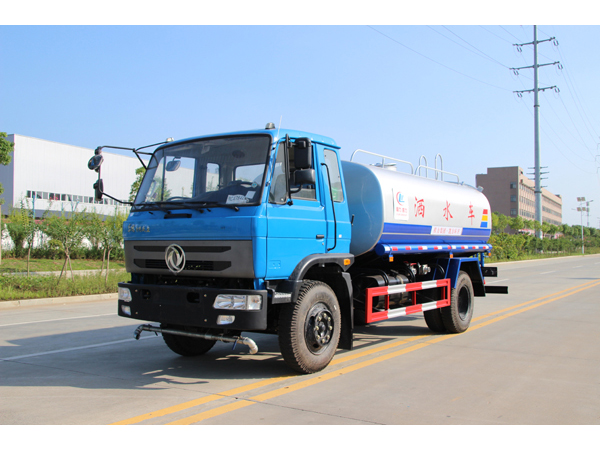

Dongfeng 145 Model 12000liter Portable Water Storage Tanks Mount Truck
Where there is no or an insufficient supply of piped freshwater and drinking water, water has to be transported either by trucks or by human power. Water trucks with tanks (also known as tank trucks or cistern trucks) bring the water from the sources to the consumers. Motorised water distribution is very important in many countries, especially in urban or peri-urban areas or in emergencies (war, natural disaster). The tank trucks must be maintained well to avoid a (re-) contamination and the water source should be chosen careful to deliver the best water quality as possible.
Description FEEDBACK
Dongfeng 145 Model 12000liter Portable Water Storage Tanks Mount Truck

Where there is no or an insufficient supply of piped freshwater and drinking water, water has to be transported either by trucks or by human power. Water trucks with tanks (also known as tank trucks or cistern trucks) bring the water from the sources to the consumers. Motorised water distribution is very important in many countries, especially in urban or peri-urban areas or in emergencies (war, natural disaster). The tank trucks must be maintained well to avoid a (re-) contamination and the water source should be chosen careful to deliver the best water quality as possible.


Chassis


Model


SLS5160GSSE4


Drive mode


4X2


Engine model


EQ1250GD4DJ2


Fuel type


Diesel


Emission standard


Euro 3 (optional)


Tank


Capacity(L)


8000-12000L


Material


Q235B


Dimension


Overall dimension(L*W*H)(mm)


7700*2480*3100


Tank size(mm)


4400*2250*1550


Wheelbase(mm)


3950


Tread(front/rear)(mm)


1032/1618


Approach/Departure angle


19°/14°


Weight


Load capacity (kg)


4020


Curb weight(kg)


3150


Total weight(kg)


7300


Special device


Water pump


Self suction centrifugal pump


Flow(L/min)


833


Sprinkling width


≥14


Sprinkling pressure(kpa)


250


Sprinkling time(min)


15-25
