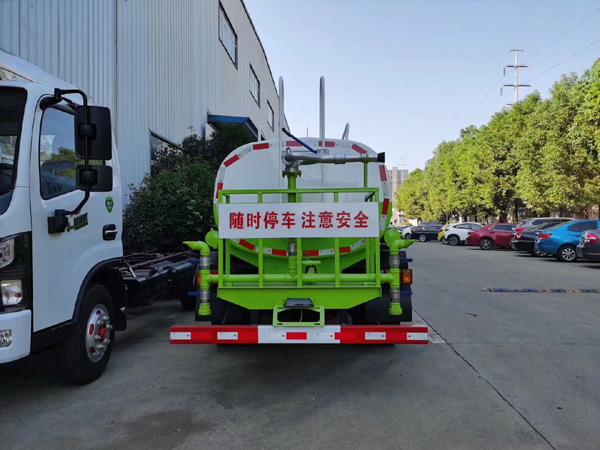

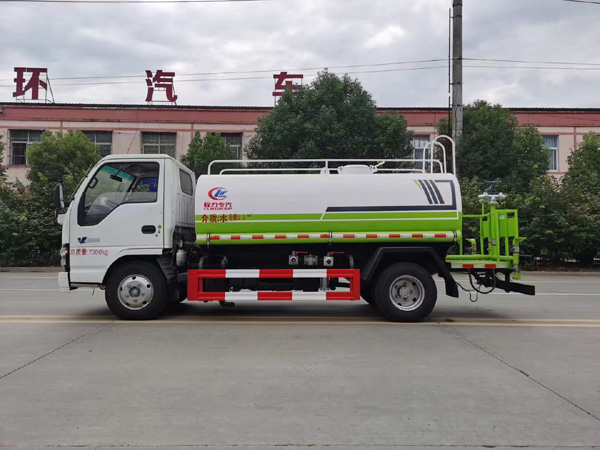

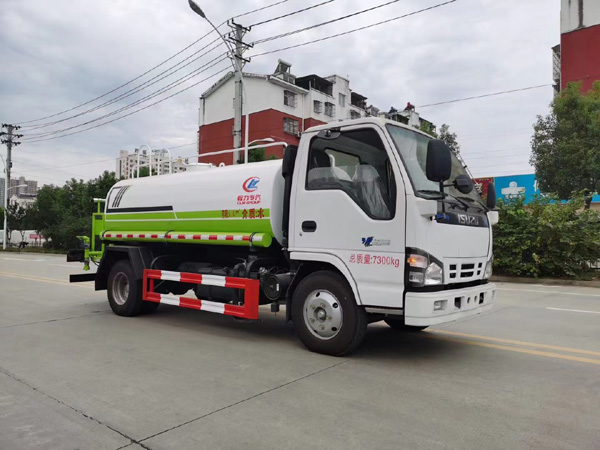

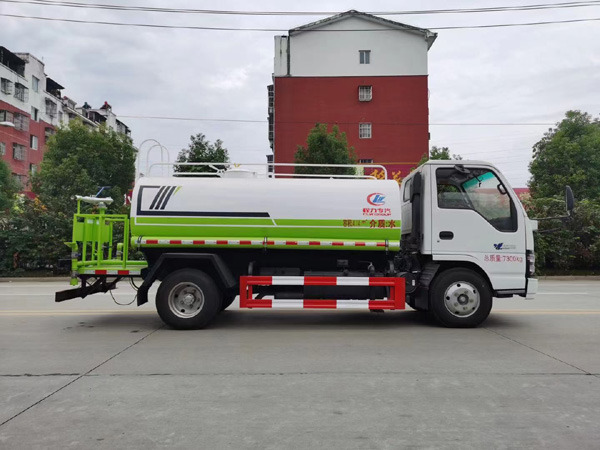

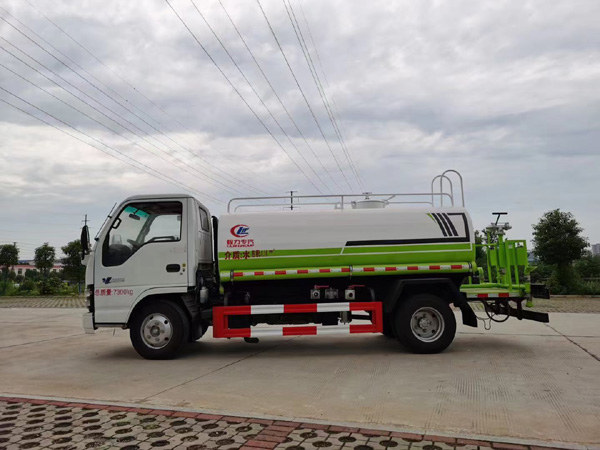

ISUZU 100P 190hp 5cbm 120HP Water Tank Truck For Sale

Tank volume is 3-30M3,watering tank with pump,when water truck is transporting drinking water , inner face must make anti-corrosive paint.

Water tank truck is used for garden environment-keeping, Municipal maintains, area virescence, road building, large government department transporting drinking water.

Description Get quotation

ISUZU 100P 190hp 5cbm 120HP Water Tank Truck For Sale

1. Water truck Brief introduction:

Tank volume is 3-30M3,watering tank with pump,when water truck is transporting drinking water , inner face must make anti-corrosive paint.

Water tank truck is used for garden environment-keeping, Municipal maintains, area virescence, road building, large government department transporting drinking water.

2. 3-30T water tank truck advantage :

(1). More type for choosing.

(2). Specialized in water truck 10 years

(3). A competitive price.

(4). With certificate of CCC,ISO9001,BV,SGS,etc.

(5). Chassis could choose DFAC,DONGFENG,FOTON,SINOTRUK,SHACMAN,JAC,Northbenz,JMC,I-S-U-Z- U,Style,CAMC,FAW,JAC,IVECO,etc.

(6).Engine could choose Commins,Yuchai,Changyang,Weichai,Sinotruk,etc.and the horse power could choose by the chassis and your requirement.

(7). The tank volume is 3000-30000L

(8). Material:carbon steel or stainless steel

(9) .Produce as you requirement

3. Water tanker truck Special function details:

A. Front (rear ,side)sprinkler :sprinkling width is more than 14m

B. Rear working platform with water cannon: range is more than 28m

C. Pump(optional)

a. 65QZ40/45 ,flux(m3/h):40,rating speed(r/min):660,pumping head(m):45,self-suction height(m):6.5,

b. 80QZ60/90,flux(m3/h):60,rating speed(r/min):1000,pumping head(m):90,self-suction height(m):6.5.

D. Water truck Material: high quality carbon stell,use 4mm to 6mm.

E. Water truck Structure: welding, there is clapboard inner when fill drinking water.

4. Water tank truck specificattion:

B. Rear working platform with water cannon: range is more than 28m

C. Pump(optional)

a. 65QZ40/45 ,flux(m3/h):40,rating speed(r/min):660,pumping head(m):45,self-suction height(m):6.5,

b. 80QZ60/90,flux(m3/h):60,rating speed(r/min):1000,pumping head(m):90,self-suction height(m):6.5.

D. Water truck Material: high quality carbon stell,use 4mm to 6mm.

E. Water truck Structure: welding, there is clapboard inner when fill drinking water.

4. Water tank truck specificattion:

Description	4X2 Water tank truck
Drive Model	4X2
Number of axles	2
Vehicle Main Dimensions	Dimensions(L x W x H)(mm)	5000×2470×2850
	Wheel base (mm)	3800
	Overhang (front/rear) (mm)	1250/2050
	Wheel track (front/rear) (mm)	1900/1800
	Approach/Departure angle(°)	20/15
Weight in KGS	GVW.	7000
Max. driving speed(km/h)		90
Engine	Model	Japan brand
	Type	4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling
	Horse Power(HP)	190HP
	engine capacity(ml)	5900
	Emission standard	Euro IV
Gearbox	6 forwards & 1 reverse
Clutch	Reinforced diaphragm clutch
Steering Gear	Power steering, hydraulic steering with power assistance
Fuel tank (L)	200
Tire	9.00-20tire , 6 + 1(spare)
Brakes	dual circuit compressed air brake
Tank Body
Material	Q235A Carbon steel / Stainless Steel
Medium	Water
Loading Capacity (m³)	5m3
Overall dimensions(mm)	3600×1800×1200
Thickness(mm)	5
Standard Equipment	1.Equipped with front,rear,side sprinkler (sprinkling width>14m ) 2.Equipped with rear working platform with water cannon which can be turned all-round (range>28m),can be adjusted into flinging, heavy rain,light rain, drizzle model, with security barrier. 3.Equipped with CLW pump(suction lift>6m) 4.Equipped with fire valve, water valve, and filter gauze
Optional Equipment	5.Firefighting pipe 6.Firefighting Pump 7.The painting
