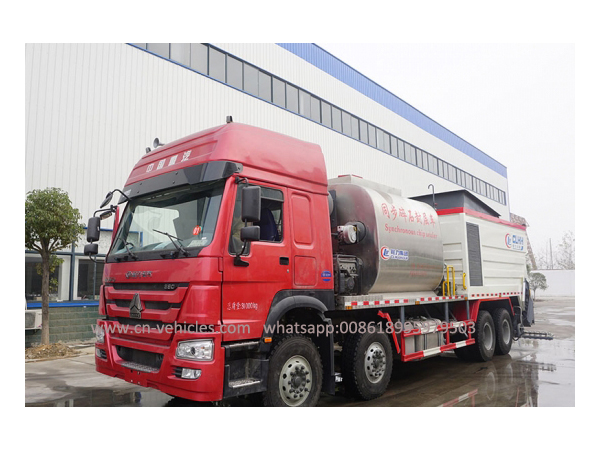

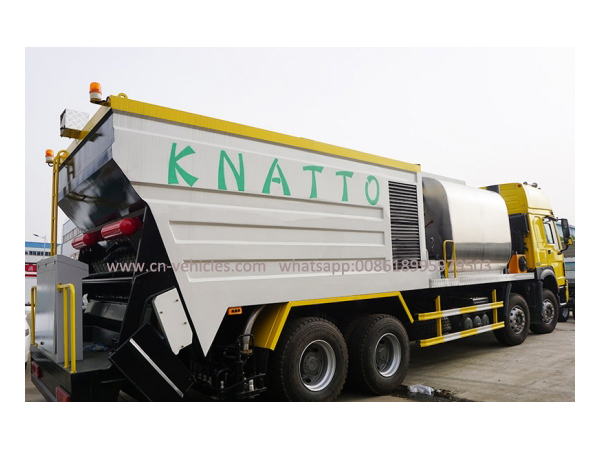

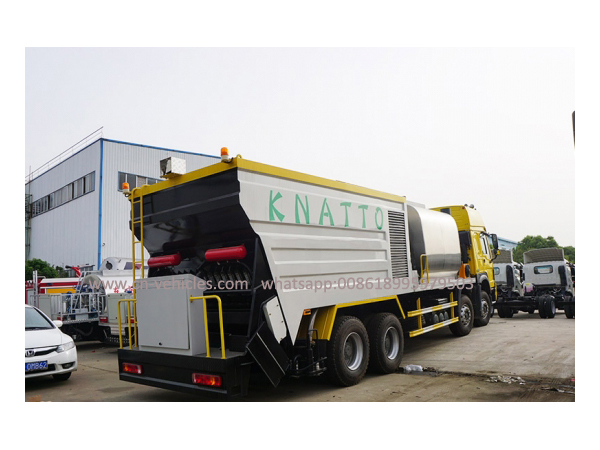

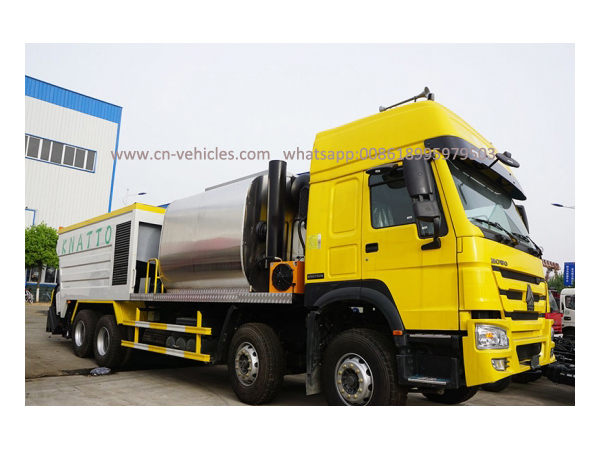

HOWO 8X4 Synchronous Chip Sealer Truck with 9 Cbm Asphalt Tank 14 Cbm Chip Bucket
Synchronous chip seal truck is one of the most successful road-resurfacing methods, designed to extend the life of a road‘s driving surface. The chip seal process involves applying a layer of asphalt emulsion and aggregate rock over the road. The process consists of liquid asphalt, immediately followed by rock chips.
Description
Get quotation
HOWO 8X4 Synchronous Chip Sealer with 9cbm Asphalt Tank 14cbm Chip Bucket Truck
Synchronous chip seal truck is one of the most successful road-resurfacing methods, designed to extend the life of a road‘s driving surface. The chip seal process involves applying a layer of asphalt emulsion and aggregate rock over the road. The process consists of liquid asphalt, immediately followed by rock chips.
Synchronous Chip Sealer can perform asphalt binder spraying and chip spreading processes synchronously, which allows full contact between binders and aggregates, thus resulting in maximum cohesive performance. It can also separately spray or spread asphalt or aggregate in special conditions.
| Vehicle Description | ||||
| Vehicle model | Chip sealer | Overall dimensions (mm) | 12250x2500x3650 | |
| GVW (kg) | Appro×31000 | Fact loading capacity (L) | 9000+14000 | |
| Mass in working order (kg) | Appro×17370 | Max. Speed (km/h) | 90 | |
| Chassis Description | ||||
| Chassis Model | ZZ1317 | |||
| Cab | Standard cabin | |||
| Color | Optional | |||
| Allowable person in cab | 2/3 | |||
| Wheel base (mm) | 1300+4600+1350 | |||
| Front/Rear track base (mm) | 2022/1830/1830 | |||
| Front/Rear overhang (mm) | 1500/2545 | |||
| Number of axles | 4 | |||
| Axle | Front axle | 7000/7000 | ||
| Rear axle | 13000/13000 | |||
| Traction system | 8x4 | |||
| Operation control system | Power steering | |||
| Braking system | Full air | |||
| Electric system | 24V | |||
| Transmission | HW19710 10 speeds + 2 rear | |||
| Spring plate | 9/12 | |||
| Tire specification | 12.00R20 | |||
| Tire quantity | 12+1 | |||
| Engine Description | ||||
| Engine manufacture | SINOTRUK WEICHAI POWER CO., LTD | |||
| Engine model | WD615.69 | |||
| Emission standard | Euro 2 | |||
| Exhaust/output | 9726/247 | |||
| Horse power | 336 | |||
| Up-parts Description | ||||
| Asphalt tank Total Volume(L) | 9000 | |||
| Chippings bucket Total Volume(L) | 13000 | |||
| Insulating layer thickness (mm) | 80 | |||
| Hydraulic pump | 50-20-16 | |||
| Proportional valve | Taiwan EFBG-03-160-HF | |||
| Asphalt pump | QGB680 | |||
| Hydraulic motor for asphalt pump | 05-110-BD31 | |||
| Heating System | Italian burner Riello (G20) | |||
| Heat-transfer oil pump | 40-25-160 | |||
| Control System | SIEMENS CLW-32-01 | |||
| Generator | 5.5KW gasoline engine generator | |||
| Number of nozzle | 32 | |||
| Spray medium | Hot asphalt/ Hot modified asphalt/ Cutback asphalt/ Emulsified asphalt | |||
| Spray width(m) | 4 | |||
| Spray amount(L/m2) | 0.3-3.5 | |||
| Working Condition: | 1,Altitude: 0-4500m 2,Temperature: -350C~+450C 3,Relative humidity: 80% 4,Wind force: ≤8 degree |
|||
