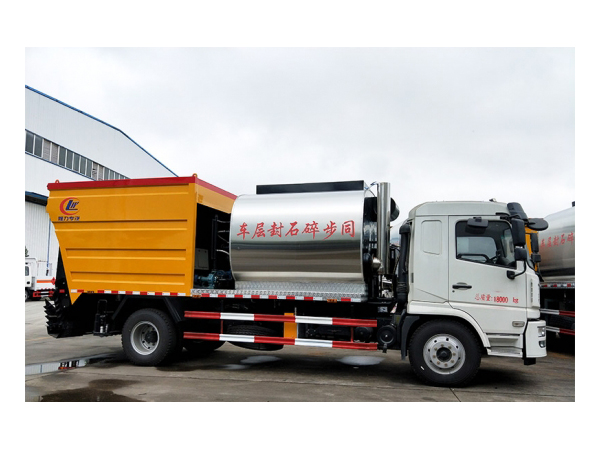

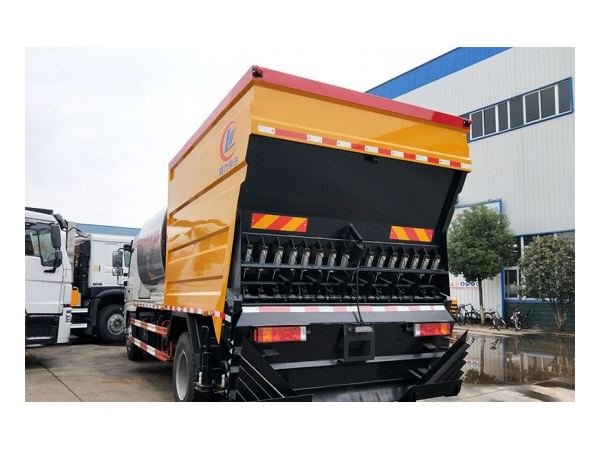

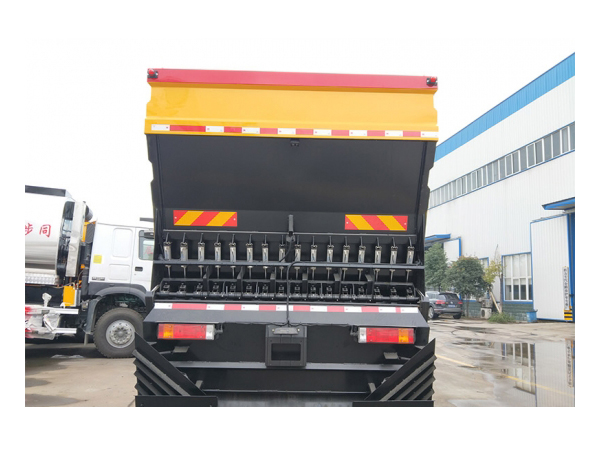

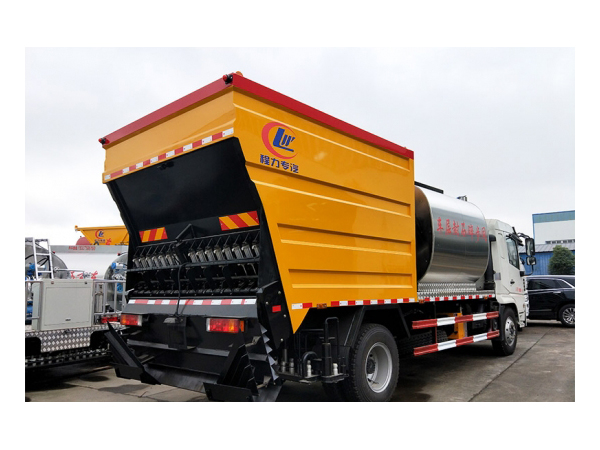

SHACMAN 4x2 Synchronous Chip Seal Spreader Truck
The asphalt distribution truck is equipped with an independent auxiliary engine power system to ensure zero start spraying.Asphalt sprayer adopts a three-section folding structure, which achieve double or multiple spraying by moving the spreader up and down, and expand the spread range and avoid obstacles meanwhile moving the spreader left and right.
Description FEEDBACK

SHACMAN 4x2 Synchronous Chip Seal Spreader Truck

The asphalt distribution truck is equipped with an independent auxiliary engine power system to ensure zero start spraying.Asphalt sprayer adopts a three-section folding structure, which achieve double or multiple spraying by moving the spreader up and down, and expand the spread range and avoid obstacles meanwhile moving the spreader left and right.
Vehicle Description
Vehicle model Chip sealer Overall dimensions (mm) 8250x2500x3650
GVW (kg) Appro×16000 Fact loading capacity (L) 4000+8000
Mass in working order (kg) Appro×17370 Max. Speed (km/h) 90

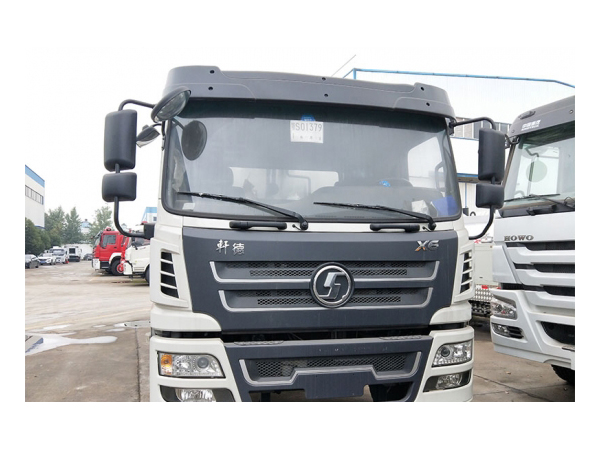

Chassis Description
Chassis Model SX1657
Cab Standard cabin withRight hand drive
Color Optional
Allowable person in cab 2/3
Wheel base (mm) 4600
Front/Rear track base (mm) 2022/1830
Front/Rear overhang (mm) 1500/2545
Number of axles 2
Axle Front axle 6000
Rear axle 10000
Traction system 4x2
Operation control system Power steering
Braking system Full air
Electric system 24V
Transmission HW19710 10 speeds + 2 rear
Spring plate 9/12
Tire specification 12.00R20
Tire quantity 6+1
Engine Description
Engine manufacture SINOTRUK WEICHAI POWER CO., LTD
Engine model WD615.69
Emission standard Euro 2
Exhaust/output 9726/247
Horse power 336
Up-parts Description
Asphalt tank Total Volume(L) 4000
Chippings bucket Total Volume(L) 8000
Insulating layer thickness (mm) 80
Hydraulic pump 50-20-16
Proportional valve Taiwan EFBG-03-160-HF
Asphalt pump QGB680
Hydraulic motor for asphalt pump 05-110-BD31
Heating System Italian burner Riello (G20)
Heat-transfer oil pump 40-25-160
Control System SIEMENS  CLW-32-01
Generator 5.5KW gasoline engine generator
Number of nozzle 32
Spray medium Hot asphalt/ Hot modified asphalt/ Cutback asphalt/ Emulsified asphalt
Spray width(m) 4
Spray amount(L/m2) 0.3-3.5
Working Condition: 1,Altitude: 0-4500m
2,Temperature: -350C~+450C
3,Relative humidity: 80%
4,Wind force: ≤8 degree
