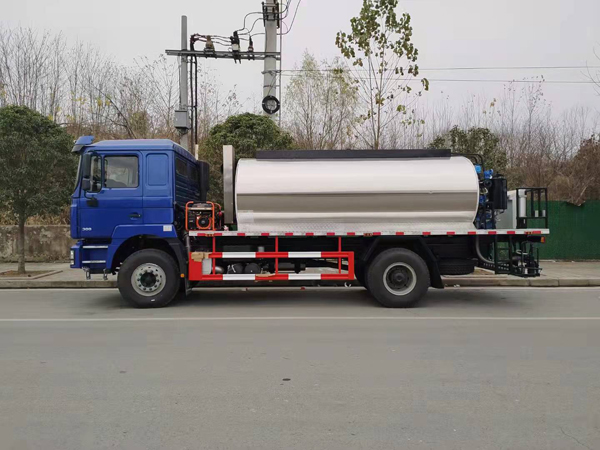

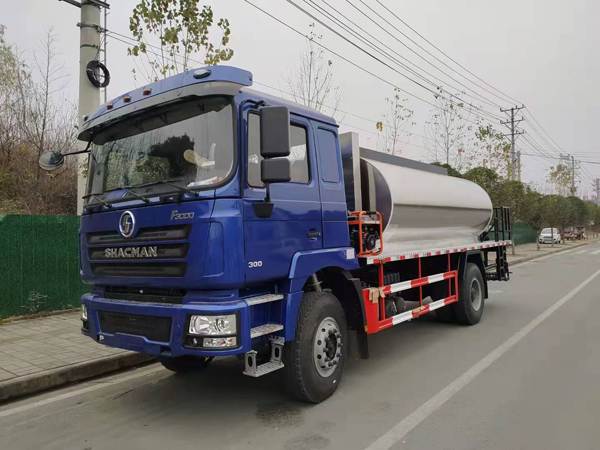

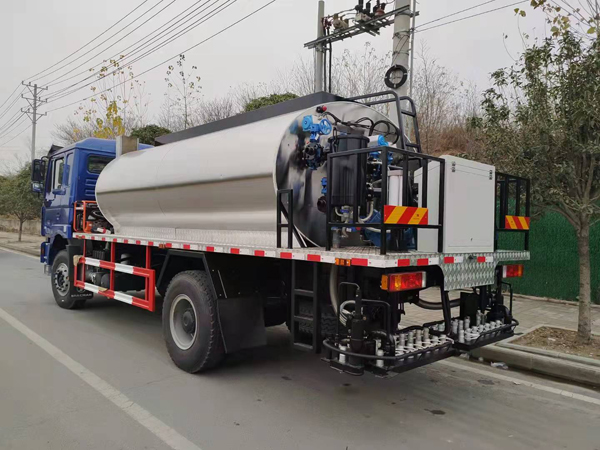

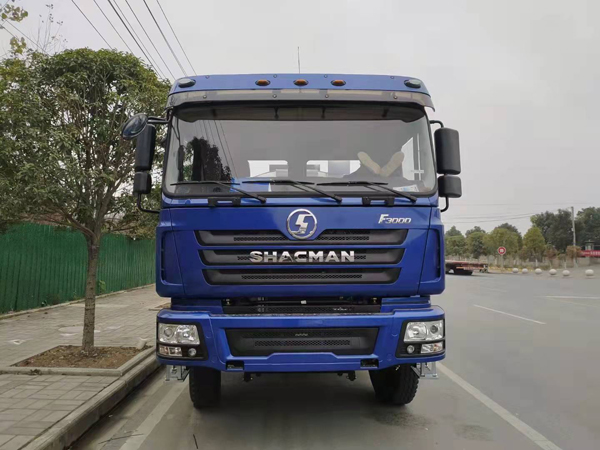

Shacman F3000 10-12M Asphalt Distributor Bitumen Sprayer Truck

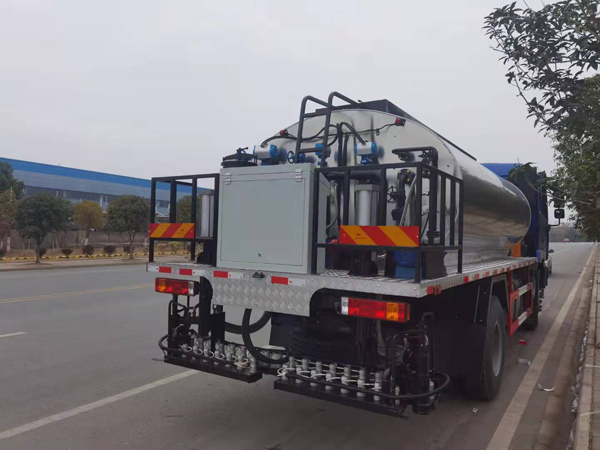

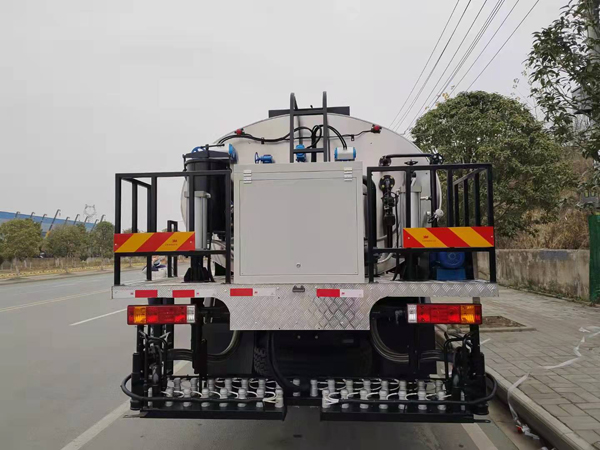

The BITUMEN SPRAYER is equipped with an independent auxiliary engine power system to ensure zero start spraying.Asphalt sprayer adopts a three-section folding structure, which achieve double or multiple spraying by moving the spreader up and down, and expand the spread range and avoid obstacles meanwhile moving the spreader left and right.
Description FEEDBACK

Shacman F3000 10-12M Asphalt Distributor Bitumen Sprayer Truck

The BITUMEN SPRAYER is equipped with an independent auxiliary engine power system to ensure zero start spraying.Asphalt sprayer adopts a three-section folding structure, which achieve double or multiple spraying by moving the spreader up and down, and expand the spread range and avoid obstacles meanwhile moving the spreader left and right.

Parameters

Chassis

Overall Dimension

8420x2500x3160mm

Gross Vehicle Weight

15800 kg

Curb Weight

5655 kg

Loading Weight

12000 Kg

Wheel Base

4600 mm

Front/rear Tread

1210/2320mm

Approach/Departure Angle

24/10 degree

Front Axle

5000kg

Rear Axle

10000kg

Engine

 Diesel Engine,
watering cooling, four stroke, 6 cylinder in line

Engine horsepower

160 HP EURO III

Max Driving Speed

90 km/h

Carbin

3 Passenger allowed, Left Hand Driving, with Air Conditioner

Tire

9.00R20 (6 pieces+1piece spare tire)

Upper part

Asphalt Tank

12 cbm 12000liters

Outside Material

Stainless plate

Insulation layer

20ºC/8h

Bitumen pump

QGB950; 950L/min

Hydraulic System

Hydraulic pump

CQB550-L

Driving Motor

05-110-BD31

Proportional Valve

EFBG-03-160-HF/Taiwan brand

Shuttle Valve

Shanxi Yuci brand

Overflow Valve

Shanxi Yuci brand

Control System

Control System

CLW-30-01/Germany Siemens

Control Method

Manual and computer control

Smart asphalt nozzle

30 pcs

Heating System

Heating method

Automatic heating by oil

Burner

Italy brand

Radiator

Risheng brand

Heat transfer oil pump

40-25-160

Gasoline Engine

6 kw

Spreading Width

6m

Spreading Speed

0.2~3L/min

Spreading Precision

±2%
