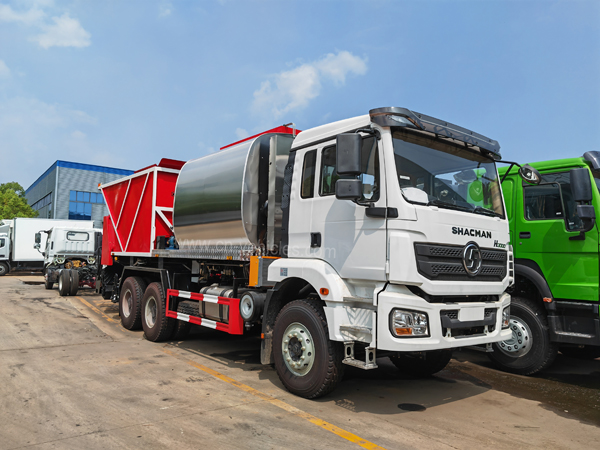

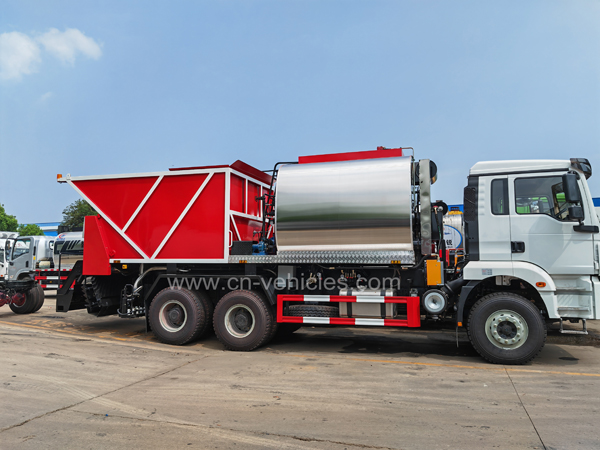

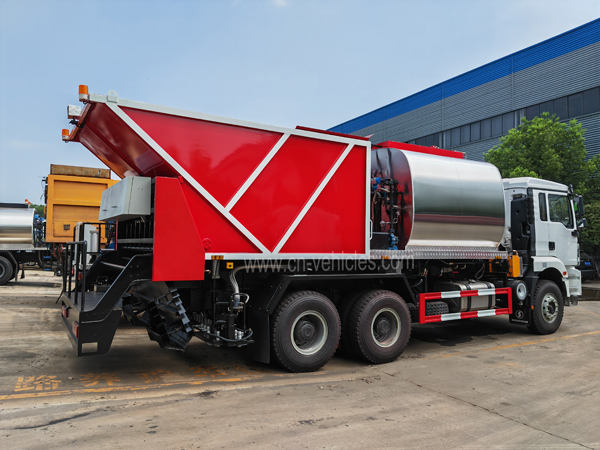

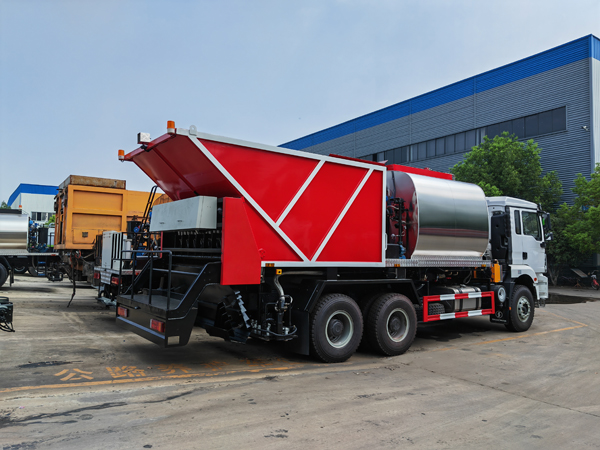

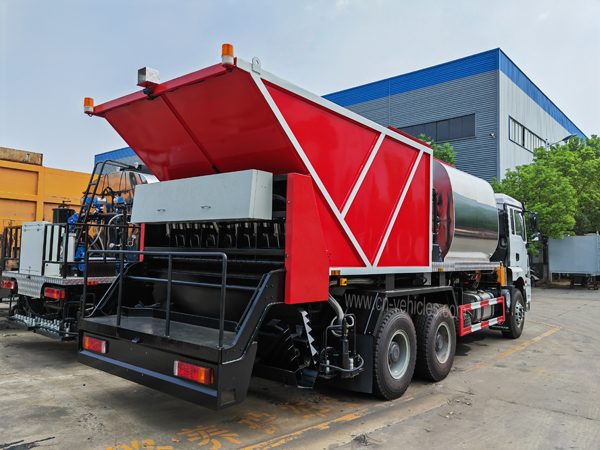

Shacman H3000 Asphalt Synchronous Chip Sealing Distributors And Equipment Truck
Our asphalt distributor truck for sale features and advantage
1.) Automatic asphalt distributor boasts three layers. It can adjust the spray amount according to its operational speed.
2.) The whole asphalt spraying process can be finished in the cab.
3.) Each nozzle is controlled by separate computer. The spray width can be adjusted at random.
Description
Get quotation
Shacman H3000 Asphalt Synchronous Chip Sealing Distributors And Equipment Truck
Our asphalt distributor truck for sale features and advantage
1.) Automatic asphalt distributor boasts three layers. It can adjust the spray amount according to its operational speed.
2.) The whole asphalt spraying process can be finished in the cab.
3.) Each nozzle is controlled by separate computer. The spray width can be adjusted at random.
4.) The control procedure is equipped with two control systems, cab and post operational platform to ensure the reliability of asphalt spray.
5.)The computer control system adopts modular design for lower accident rate and maintenance.
6.)The temperature of asphalt in tank is kept below or equal to two degrees per hour
7.)The distributor is equipped with automatic blowing device to shift the asphalt outside to the tank
The overall description of our Crane truck series
Automatic Asphalt Distributor/Bitumen Sprayer The main fitting adopts the most advanced components with computer system controlled spraying. Our intelligent asphalt distributor‘s accuracy meets Euro standards. Together with the advantages of asphalt distributors in the world, with automatic asphalt distributor, we innovated four new technologies
1. Any asphalt used is displaced.
2. Asphalt nozzle is multilayer filtrate and keeps the quality of spray.
3. Asphalt spraying is controlled by computer system.
4. Asphalt spray is suitable for asphalt pavement construction, which can improve performance achievements to international standards with zero tolerance.
5.Automatic asphalt distributor boasts three layers. It can adjust the spray amount according to its operational speed.
6. The whole asphalt spraying process can be finished in the cab.
7. Each nozzle is controlled by separate computer. The spray width can be adjusted at random.
8. The control procedure is equipped with two control systems, cab and post operational platform to ensure the reliability ofasphalt spray.
Q1. What is the advantage of your Asphalt Distributor?
We have two categories of Asphalt Distributors: Ordinary and Intelligent. Please take a look at our catalog to know the advantages of the Ordinary type. The advantages of the Intelligent type:
1. The main accessories (asphalt pump, burner, control system) are imported;
2. Adjustable spray amount based on the viscosity of the medium;
3. Two sets of control systems (cab and back operating platform) and newly launched GPS remote control and diagnose system.
Q2. What is the price of your Asphalt Distributor?
We have three kinds of Asphalt Distributors: Ordinary, Standard and Intelligent. Prices are based on the type, capacity and configuration.
Q3. What is the difference between Intelligent Asphalt Distributor and Standard Asphalt Distributor?
A. Intelligent: The whole operation can be carried out in the cab; Standard: Manual operation.
B. Intelligent: Imported accessories (asphalt pump--Danish ROTAN, burner-Italian Riello, hydraulic pump -Germany Rexroth, temperature control system-Omron, computer control components-Siemens. The standard type also uses imported accessories.
C. Intelligent: heat transfer oil heating system, each nozzle is controlled by separate computer. Standard: asphalt pump+ heat transfer oil, one computer controls three nozzles.
Q4. What warranty coverage do I have?
Our Asphalt Distributor has one-year warranty. We will provide free accessories for exported products.
|
Item
|
Descriptions
|
Spesifications and Types
|
|
|
Vehicle
|
Brand
|
CLW GROUP
|
|
|
Overall Dimensions L*W*H
|
10350*2500*3500mm
|
||
|
Weights
|
GVW.
|
25000kgs
|
|
|
Kurb Weight
|
9725kgs
|
||
|
Rated Payload
|
15000kgs
|
||
|
Chassis
|
Chassis Brand
|
SHACMAN
|
|
|
Drive Type
|
6×4
|
||
|
Steering
|
LHD
|
||
|
Engine
|
Brand
|
weichai engine
|
|
|
Power
|
180Kw /245HP
|
||
|
Emmission Level
|
EURO 2 or Euro 3 or EURO 4
|
||
|
Performance
|
Max. Speed
|
80km/h
|
|
|
Wheel base
|
1860+4800 mm
|
||
|
Tyre Specifications
|
10.00R20 18PR,11.00-20,11.00R20,12R22.5
|
||
|
No. of Tyre
|
8 pcs (1 spare tyre included)
|
||
|
Cab
|
Cab Capacity
|
3 persons allowed
|
|
|
The Parameters of Equipment for Rubber Asphalt Synchronous Chip Sealer
|
|||||
|
|
16 CBM Version
|
20 CBM Normal Version
|
20 CBM Advance Version
|
26 CBM Normal Version
|
26 CBM Advance Version
|
|
Asphalt Tank
|
6 CBM
|
8 CBM
|
8 CBM
|
10 CBM
|
10 CBM
|
|
Gravel Tank
|
10 CBM
|
12 CBM
|
12 CBM
|
16 CBM
|
16 CBM
|
|
Asphalt Pump
|
QGB680 high viscosity asphalt pump
|
QGB950 high viscosity asphalt pump
|
TGG185-125 asphalt pump (Belgium)
|
QGB950 high viscosity asphalt pump
|
TGG185-125 asphalt pump (Belgium)
|
|
Hydraulic Motor for Asphalt Pump
|
05-130-BD31
|
05-130-BD31
|
05-130-BD31
|
05-130-BD31
|
05-130-BD31
|
|
Hydraulic Pump
|
50-20-16
|
50-20-16
|
German Rexroth hydraulic pump A11V060EP20D-10L
|
50-20-16
|
German Rexroth hydraulic pump A11V060EP20D-10L
|
|
Control System
|
Siemens control system, computer intelligentized control, one control one.
|
Siemens control system, computer intelligentized control, one control one.
|
Siemens control system, computer intelligentized control, one control one.
|
Siemens control system, computer intelligentized control, one control one.
|
Siemens control system, computer intelligentized control, one control one.
|
|
Nozzles
|
32 intelligentized nozzles
|
32 intelligentized nozzles
|
32 intelligentized nozzles
|
32 intelligentized nozzles
|
32 intelligentized nozzles
|
|
Heating Mode
|
Transfer oil automatic heating
|
Transfer oil automatic heating
|
Transfer oil automatic heating
|
Transfer oil automatic heating
|
Transfer oil automatic heating
|
|
Heating Burner
|
G20 (Italy)
|
G20 (Italy)
|
G20 (Italy)
|
G20 (Italy)
|
G20 (Italy)
|
|
Radiator
|
Sunrise
|
Sunrise
|
Sunrise
|
Sunrise
|
Sunrise
|
|
Heat Transfer Oil Pump
|
40-25-160
|
40-25-160
|
40-25-160
|
40-25-160
|
40-25-160
|
|
Gasoline Engine Generator
|
6 kilowatt
|
6 kilowatt
|
5.5 Honda kilowatt
|
6 kilowatt
|
5.5 Honda kilowatt
|
|
Spreading Width
|
4 meters
|
4 meters
|
4.5-6 meters
|
4.5 meters
|
4.5 meters
|
|
Spreading Volume
|
0.3-3.5 L/m2
|
0.2-3.5 L/m2
|
0.2-4.0 L/m2
|
0.3-3.5 L/m2
|
0.3-4.0 L/m2
|
