Sinotruck howo 10 tyre 8cbm Slurry Seal Coat Truck For Sales

Our company is appointed by the Ministry of Industry and Information of China which is a manufacturer for producing all kinds of special trucks, and the slurry seal coat truck is one of our trucks. It is one of the most successful road-resurfacing methods, designed to extend the life of a roads driving surface. The chip seal process involves applying a layer of asphalt emulsion and aggregate rock over the road. The process consists of liquid asphalt, immediately followed by rock chips.

Description FEEDBACK

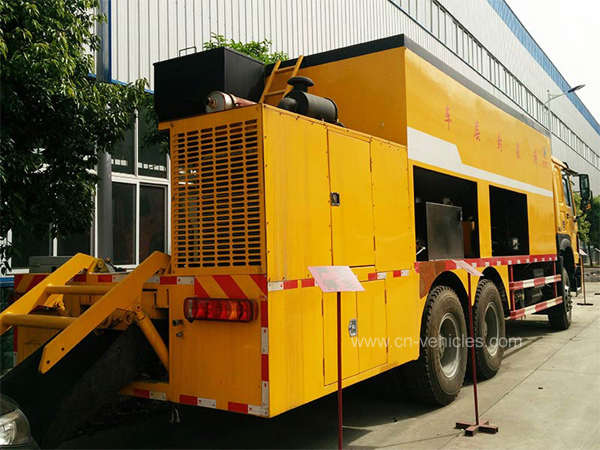

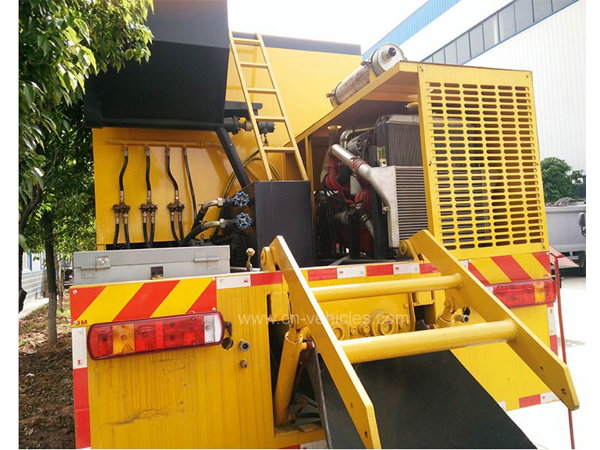

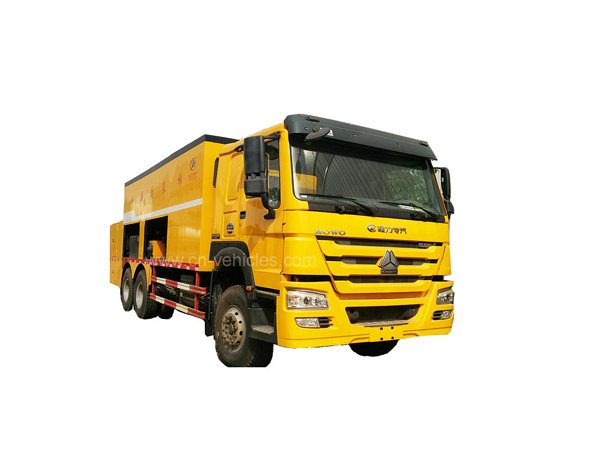

Sinotruck howo 6*4 10 tyre 8cbm Slurry Seal Coat Truck For Sales



Our company is appointed by the Ministry of Industry and Information of China which is a manufacturer for producing all kinds of special trucks, and the slurry seal coat truck is one of our trucks. It is one of the most successful road-resurfacing methods, designed to extend the life of a roads driving surface. The chip seal process involves applying a layer of asphalt emulsion and aggregate rock over the road. The process consists of liquid asphalt, immediately followed by rock chips.



1. Full computer control in driving cab, only needs one operator.

2. Each nozzle is separately managed and independently controlled.

3. Italy Riello burner indirect heating by heat transfer oil.

4. High Viscosity asphalt pump for all kinds of modified asphalt and emulsified asphalt.

5. The vehicle can be widely used in synchronous seal operation of each grade of highway. It is cost-saving, wear-resisting, anti-skidding and waterproof.

6. After construction traffic can be quickly restored. It is suitable for waterproof of road surface and bridge deck, crushed stone seal technology of the lower seal coat and pavement maintenance and repairing.

7. Chip Sealer can perform asphalt binder spraying and chip spreading processes synchronously, which allows full contact between binders and aggregates, thus resulting in maximum cohesive performance. It can also separately spray or spread asphalt or aggregate in special conditions.

8. It can perform asphalt binder spraying and chip spreading processes synchronously, which allows full contact between binders and aggregates, thus resulting in maximum cohesive performance. It can also separately spray or spread asphalt or aggregate in special conditions.

Truck Specification

Chassis model

ZZ1257N4341W

Cab

HOWO single row cab, with power steering. Electronic flameout,without a/c

Driving Type

6*2 Left hand driving

Max Speed (km/h)

95

Overall dimension(mm)

10200*2500*3730

GVW( kg)

25000

Mass in working order ( kg)

17370

Tank Capacity (L)

8000

Wheelbase(mm)

4325+1350

F/R track base (mm)

2022, 2041, 1830/1830

F/R overhang (mm)

1500/1945, 1920

Approach/Departure Angel

16/23

Tire

12.00R22.5

Clutch

Single-plate dry diaphragm spring clutch

Steering

Hydraulic steering with power assistance

Bridge

Front axle

Hf9

Rear axle

Hc16

Engine

Model

WD615.69

Fuel Type

Diesel fuel

Type

Water-cooled four-stroke,, direct injection, turbocharged

Exhaust(ml)

9726

Max output power/rotate speed (hp /rpm )

336

Braking system

Service Brake

Air over hydraulic dual circuit system

Park Brake

Mechanical, internal expanding acting on transfer

Eletric system

24v

Upper-Body specification

Asphalt pump discharge(L/min)

950

distribution width measurement(mm)

4000

Distribution height from ground level(mm)

200~450

Distribution quantitative(L/m2)

0.2-3.5

Burner

G20 (from Italy)

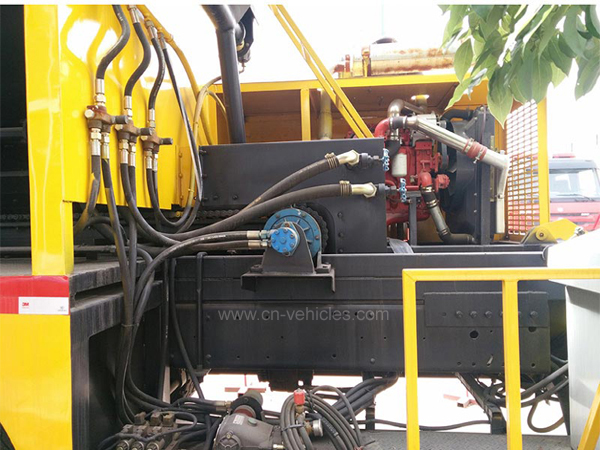

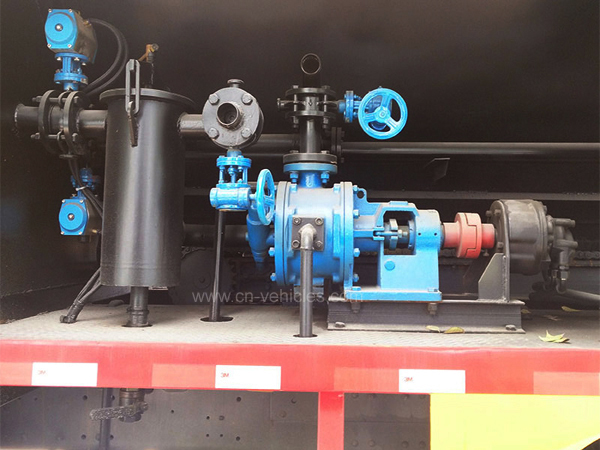

Asphalt pump

QGB950

Asphalt pump hydraulic drive motor

05-130-bd31

Hydraulic pump

50-20-16

Control method

Automatic controlled one by one

Heating Model

Thermal fuelAutomatic heating

Conducting oil pump

40-25-160


Working Video
