10ton Sinotruk HOWO Euro3 Water Foam Dry Powder Combined Fire Truck

Fire engine is used to fight fire or for other emergency rescuing specially. The fire engine is usually kept in fire bureau, and fire engine truck is driven to the accident location by the fire fighter.



Most fire- fighting engine trucks are painted in red, but still some rare places that fire engine truck is painted in yellow or military green. The siren on the fire-fighting engine truck is usually taken as the standard device for the fire engine truck.



Description FEEDBACK

10ton Sinotruk HOWO Euro3 Water Foam Dry Powder Combined Fire Truck

Fire engine is used to fight fire or for other emergency rescuing specially. The fire engine is usually kept in fire bureau, and fire engine truck is driven to the accident location by the fire fighter.



Most fire- fighting engine trucks are painted in red, but still some rare places that fire engine truck is painted in yellow or military green. The siren on the fire-fighting engine truck is usually taken as the standard device for the fire engine truck.

Item

Specifications

Item

Specifications

Truck

Name

Sinotruk Dry Powder 10 ton Fire Truck

Model

CLW0154PD033

Gross Weight

17340kg

Overall dimensions

9730*2500*3850mm

Curb Weight

10000kg

Wheelbase

4600+1350mm

Approach/departure angle

16°

Front Track

2022mm

Departure Angle

14°

Rear Track

1830mm

Front Overhang

1500mm

Number of axles

3

Rear Overhang

2280mm

Max speed

80 km/h

Number of Tyres

10

Traction system

8×2

Tyre

12.00-20,12.00R20

Transmission

Sinotruk, manual

Allowable Cab Passengers

2+4

Chassis

Model

ZZ5347V4647D1

Front Axle Load

7060kg

Leaf Spring

10/-

Rear Axle Load

20730kg

Engine (Motor)

Brand

Sinotruk

Type

Diesel

Model

D10.38-40

Displacement

9.7L

Horse power

276

Emission standard

Euro 2, Euro 3

Equipment

Tanker

9.7T

Tank Material

stainless steel

Flow

60L/S

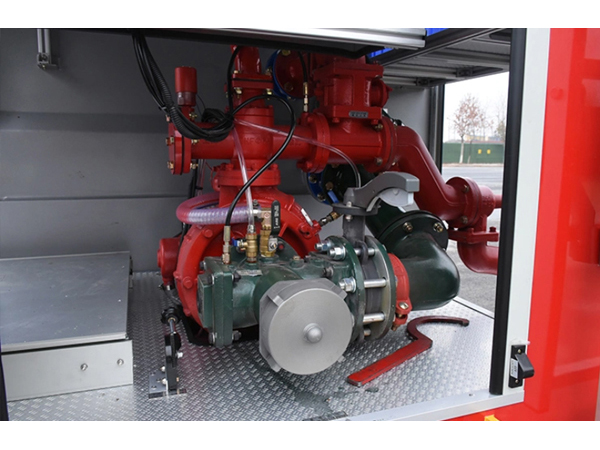

Low Pressure Pump

CB10/60

Pressure

1.0MPa

Fire distance (water)

≥80m

Remarks

Production cycle

10-15 working days

Warranty

12 months

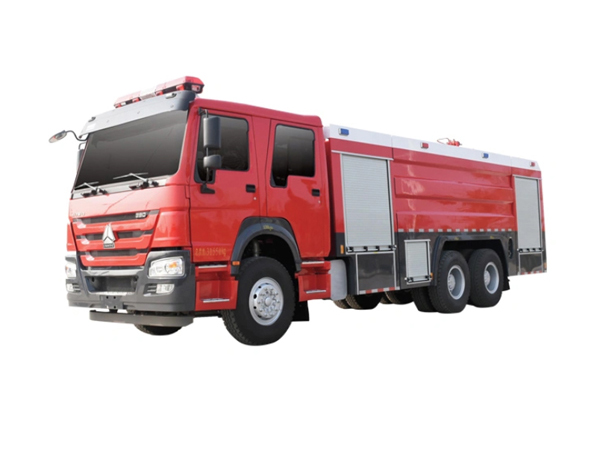

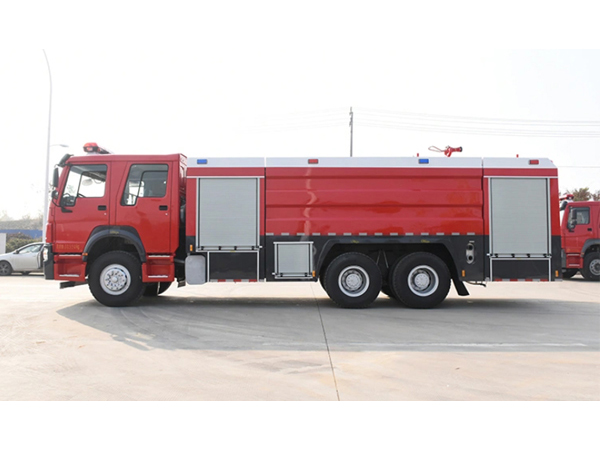

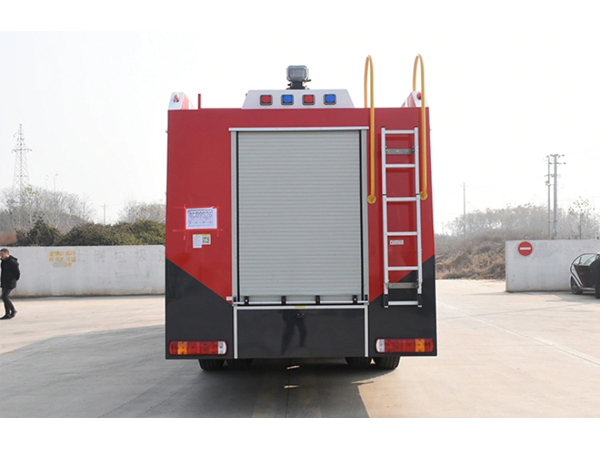

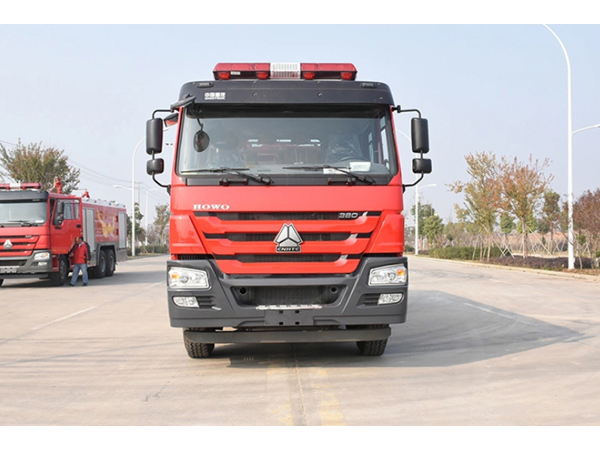

10ton Sinotruk HOWO Euro3 Water Foam Dry Powder Combined Fire Truck picture:

10ton Sinotruk HOWO Euro3 Water Foam Dry Powder Combined Fire Truck Technical date:

10ton Sinotruk HOWO Euro3 Water Foam Dry Powder Combined Fire Truck Testing:


Working Video
