8ton Dongfeng 153 Dry Powder Fire Truck Euro3, fire engines will cross forest when rush to the scene of the fire, because forest full of shrub weeds, poor road conditions even no roads, it is difficult for fire vehicle to move in the forest. In order to eliminate these obstacles, a cleaning brush device is needed to be installed in front of the fire fighting vehicle.

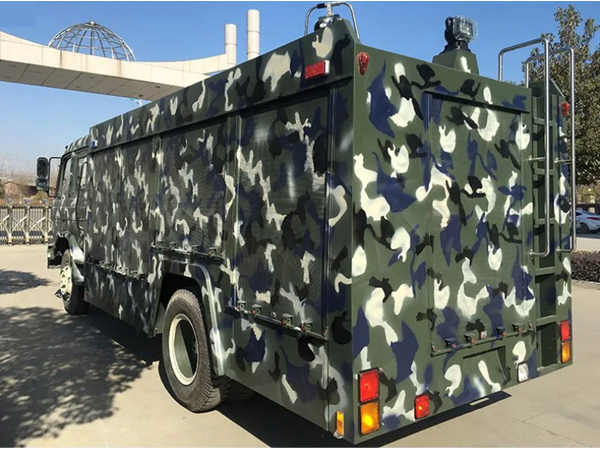

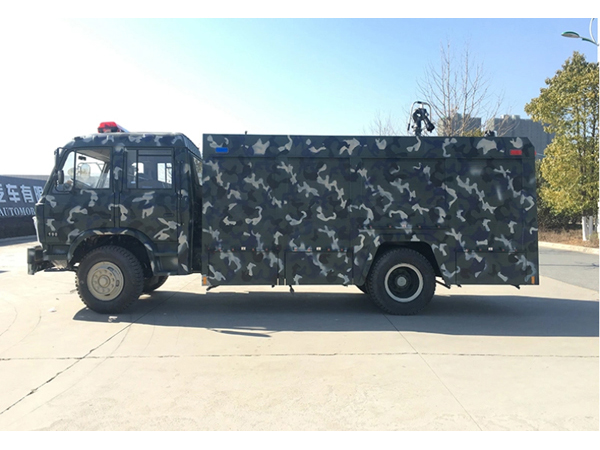

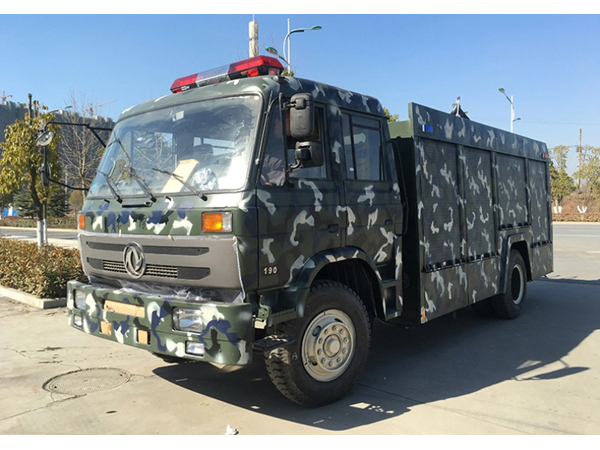

8 Tons Dongfeng Dry Powder RHD Fire Fighting Truck For Army Use
|
Item |
Specifications |
Item |
Specifications |
|
Truck |
|||
|
Name |
5ton Dongfeng 153 Dry powder Fire Truck Euro3 |
||
|
Model |
CLW5150TXFGP40E |
Gross Weight |
10400kg |
|
Overall dimensions |
7805×2490×3300mm |
Curb Weight |
4000kg |
|
Wheelbase |
4500mm |
Approach/departure angle |
25° |
|
Front Track |
1940mm |
Departure Angle |
14° |
|
Rear Track |
1860mm |
Front Overhang |
1258mm |
|
Number of axles |
2 |
Rear Overhang |
1208mm |
|
Max speed |
90km/h |
Number of Tyres |
6 |
|
Traction system |
4×2 |
Tyre |
10.00-20 |
|
Transmission |
Dongfeng, manual |
Allowable Cab Passengers |
2+4 |
|
Chassis |
|||
|
Model |
EQ1141KJ |
Leaf Spring |
8/10+8 |
|
Engine (Motor) |
|||
|
Brand |
DCEC |
Type |
Diesel |
|
Model |
ISDe180 30 |
Displacement |
4.5L |
|
Horse power |
132 |
Emission standard |
Euro 3 |
|
Equipment |
|||
|
Tanker(ton) |
Water:2 Foam:1 Powder:1 |
Tank Material |
16MnR |
|
Flow |
40L/S |
Low Pressure Pump |
CB10/40 |
|
Pressure |
1.0MPa |
Fire distance (water) |
≥60m |
|
Remarks |
|||
|
Production cycle |
10-15 working days |
||
|
Warranty |
12 months |
||
