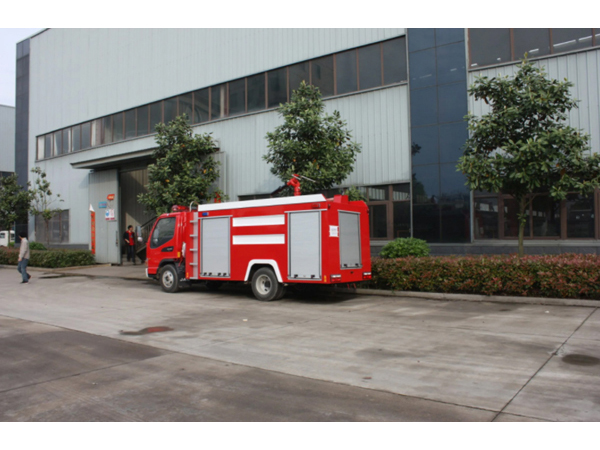

3ton Euro 4 JAC Water Tank Firefighting Truck

Name

3ton JAC  Water Tank  Firefighting Truck

Item

Specifications

Item

Specifications

Truck Parameter

Model

clw5064GXFSG20B

Chassis Model

JX1061TSGA24

Gross Weight (kg)

5875

Overall dimensions  (mm)

6225×1980×2810

Payload Weight (kg)

1800

Tank Volume(mm)

water 3ton

Curb Weight (kg)

3700

Wheelbase (mm)

3360

Engine Parameter

Model

JX493ZLQ4 diesel

Brand

JAC

Power/Displacement (kw/ml)

80/2771

Emission Level

Euro 4

Specification

Max speed (km/h)

90

Front Track (mm)

1385

Cab

2+3

Rear Track (mm)

1425

Leaf Spring

7/5+5,7/5+6

Front/Rear Overhang (mm)

1065/1730

Number of Tyres

6

Approach /  DepartureAngle(°)

25/13

Tyre Specification

7.00R16LT

Axle Load (kg)

1995/3880

Number of axles

2

Special Function

Tank Capacity (L)

water 3000L

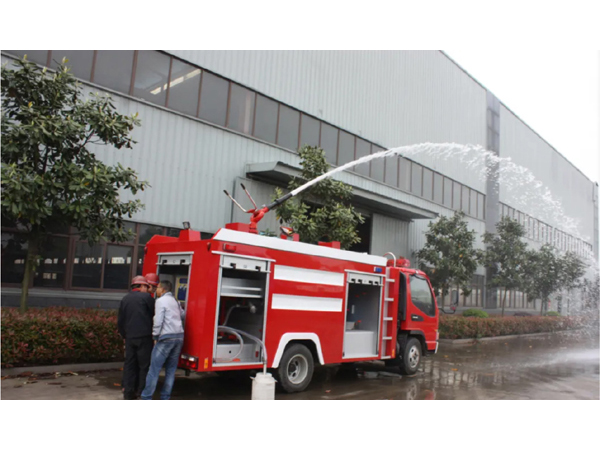

Fire Monitor

Model:PS20    rate of flow:20L/S/1MPa,water range:≥50m

Fire Pump(Normal Pressure)

1. Normal pressure model::CB10/20,rate of flow:20L/s, pressure:1.0MPa

2.water diversion time ≤35s (7m absorbing depth) water ring sandwitch type full power PTO

Performance Description

complete steel frame welding structure cab, the front of crew cab is connected with driving cab; inside tank model, qualitative carbon steel material (Q235A),thickness 4mm, preservative treatment, durable in use; aluminium alloy roller shutter door,easily operate with little noise,besides the origional equipments, there are PTO indicator light, 100w alertor,LED alarm lamp, identification lamp, clearance lamp and rear lamp.
