Dong Feng DFAC 6 Wheels Fire Truck 6 Tons Water Tank Fire Engine

This fire truck is made up of two parts,chassis and superstructure.The superstructure is consisted of tank,pump room,storage compartment,power take off and transmission system,pipeline system and electrical system.This fire fighting truck can be widely used in department such as fire brigade of public security,petrochemical industry,factory,forest and seaport.Firefighter can fight with fire quickly,and save life and property in time. Any questions please let us know,we will reply you ASAP.

Description FEEDBACK

Dong Feng DFAC 6 Wheels Fire Truck 6 Tons Water Tank Fire Engine



This fire truck is made up of two parts,chassis and superstructure.The superstructure is consisted of tank,pump room,storage compartment,power take off and transmission system,pipeline system and electrical system.This fire fighting truck can be widely used in department such as fire brigade of public security,petrochemical industry,factory,forest and seaport.Firefighter can fight with fire quickly,and save life and property in time. Any questions please let us know,we will reply you ASAP.

Name

Dong Feng 4X2 Fire Truck 6 Tons Water Tank Fire Engine

Item

Specifications

Item

Specifications

Truck Parameter

Model

CLW5151GXFPM70

Chassis Model

 EQ1160GKJ1

Gross Weight (kg)

15400

Overall dimensions  (mm)

7990×2490×3410

Payload Weight (kg)

6700

Tank Volume(mm)

water 6ton foam 2ton

Curb Weight (kg)

8250

Wheelbase (mm)

4500

Engine Parameter

Model

ISB190 40 diesel

Brand

Cummins

Power/Displacement (kw/ml)

140/5900

Emission Level

Euro 4

Specification

Max speed (km/h)

80

Front Track (mm)

1940,1900,1810

Cab

2+4

Rear Track (mm)

1860,1800

Leaf Spring

9/10+8

Front/Rear Overhang (mm)

1250/2180

Number of Tyres

6

Approach /  DepartureAngle(°)

32/26,32/24,32/22,28/28,28/24,28/20,28/25

Tyre Specification

10.00-20 16PR

Axle Load (kg)

5550/9850

Number of axles

2





Special Function

Tank Capacity (L)

water 6000L  foam 2000L

Fire Monitor

Model:PL32 dual purpose   rate of flow:32L/S/1MPa,water range:≥50m foam range:≥45m

Fire Pump(Normal Pressure)middle-lower pressure is optional

1. Normal pressure model::CB10/40,rate of flow:40L/s, pressure:1.0MPa

2.water diversion time ≤35s (7m absorbing depth) water ring sandwitch type full power PTO

Performance Description

complete steel frame welding structure cab, the front of crew cab is connected with driving cab; inside tank model, qualitative carbon steel material (Q235A),thickness 4mm, preservative treatment, durable in use; aluminium alloy roller shutter door,easily operate with little noise,besides the origional equipments, there are PTO indicator light, 100w alertor,LED alarm lamp, identification lamp, clearance lamp and rear lamp.

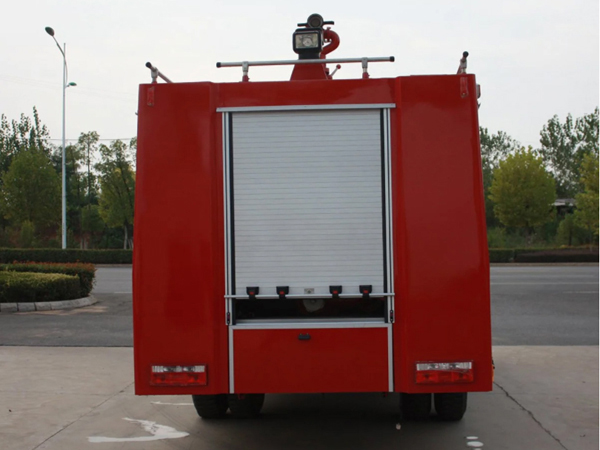

Dong Feng DFAC 6 Wheels Fire Truck 6 Tons Water Tank Fire Engine Truck picture:

Dong Feng DFAC 6 Wheels Fire Truck 6 Tons Water Tank Fire Engine Technical date:

Dong Feng DFAC 6 Wheels Fire Truck 6 Tons Water Tank Fire Engine Testing picture:


Working Video
