Sinotruck howo Heavy Duty 12000liters Water Tanker 4000liter Foam Tanker Fire Fighting Engine
Sinotruck howo Fire Fighting Engine(also called 17.4CBM Fire fighting trucks, sinotruck howo City fire rescue vehicle, 12 wheels Water-foam Fire truck, 8x4 Industrial fire fighting trucks, sinotruck howo fire trucksis apply for fire brigade of large and medium city, petrochemical enterprises, airports and harbors and so on, to put our large area fire of oil and other substance.
 We can supply water fire truck, foam fire truck, Foam and powder fire vehicle, Emergency fire truck, Fire pumper, Industrial fire vehicle, CAFS fire trucks and so on.

All our fire trucks with huge fire equipment and you can put fire-fighting immediately.
Description FEEDBACK
Sinotruck howo Heavy Duty 12000liters Water Tanker 4000liter Foam Tanker Fire Fighting Engine

Sinotruck howo Fire Fighting Truck (also called 17.4CBM Fire fighting trucks, sinotruck howo City fire rescue vehicle, 12 wheels Water-foam Fire truck, 8x4 Industrial fire fighting trucks, sinotruck howo fire trucksis apply for fire brigade of large and medium city, petrochemical enterprises, airports and harbors and so on, to put our large area fire of oil and other substance.
 We can supply water fire truck, foam fire truck, Foam and powder fire vehicle, Emergency fire truck, Fire pumper, Industrial fire vehicle, CAFS fire trucks and so on.

All our fire trucks with huge fire equipment and you can put fire-fighting immediately.

Sinotruck howo Heavy Duty 12000liters Water Tanker 4000liter Foam Tanker Fire Fighting Engine Key Features:
  ----Sinotruck howo chassis, perfect performance
----Sinotruck howo engine & gearbox, super powerful, no overhaul within 100,000 km.
---- Water tank and Foam tank capacity can be optional.
---- Easy operation and easy maintenance.
---- Various types of fire equipment are available.

 Sinotruck howo Heavy Duty 12000liters Water Tanker 4000liter Foam Tanker Fire Fighting Engine Technical date :

Item Specifications Item Specifications
Truck
Name 16 ton Howo fire truck Euro3
Model CLW1257N4647C  Gross Weight 14800kg
Overall dimensions 10025×2500×3600mm Curb Weight 12350kg
Wheelbase 4600+1350mm Approach/departure angle 16°
Front Track 2022mm Departure Angle 13°
Rear Track 1830/1830mm Front Overhang 1500mm
Number of axles 3 Rear Overhang 3140mm
Max speed 85km/h Number of Tyres 10
Traction system 6×4 Tyre 11.00-20
Transmission Sinotruk, manual Allowable Cab Passengers 2+4
Chassis
Model ZZ1257M4647C  Leaf Spring 10/12
Engine (Motor)
Brand Sinotruck Type Diesel
Model WD615.47E Displacement 9.7L
Horse power 196 Emission standard Euro 3
Equipment
Tanker(ton) Water:12000liters  Foam:4000liters Tank Material 16MnR
Flow 60L/S Low Pressure Pump CB10/60
Pressure 1.4MPa Fire distance (water) ≥60m
Remarks
Production cycle 10-15 working days
Warranty 12 months

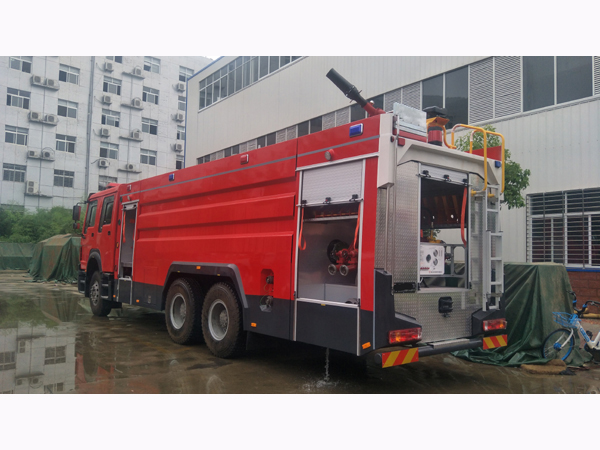

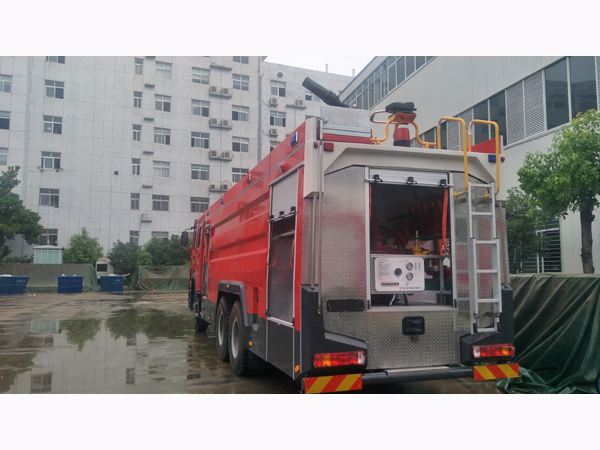

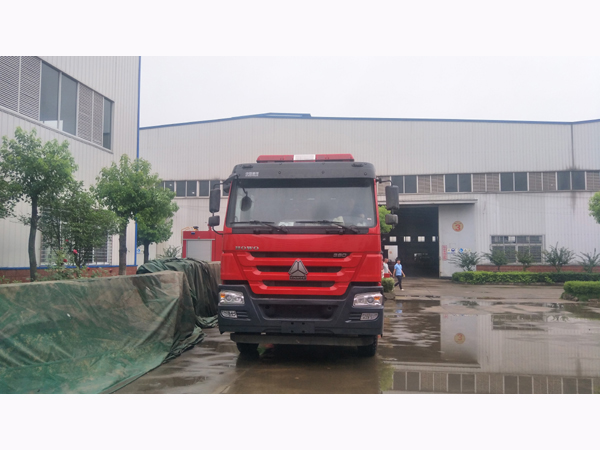

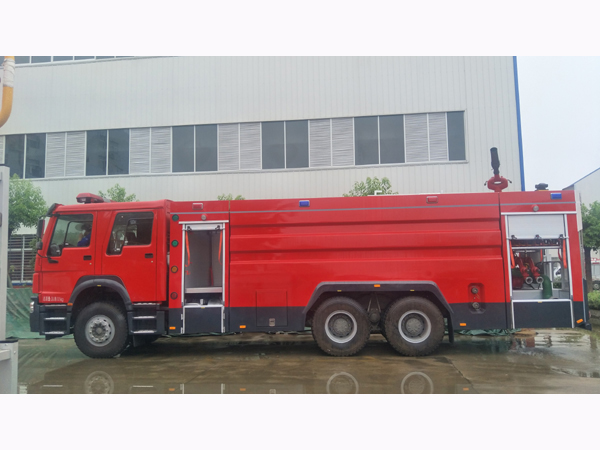

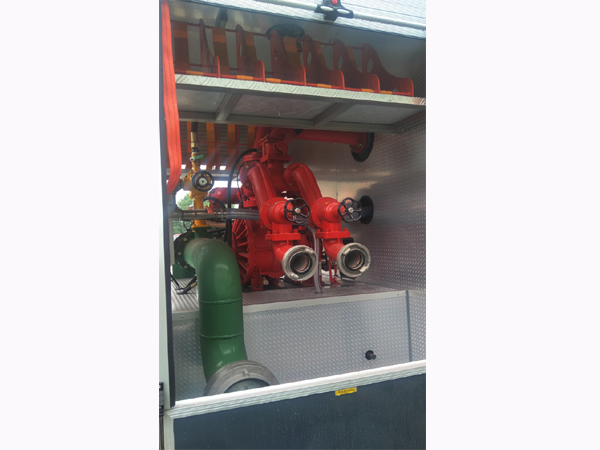

Sinotruck howo Heavy Duty 12000liters Water Tanker 4000liter Foam Tanker Fire Fighting Engine Picture:
