Fuel Tank TruckYou are here:HOME >> Products >> Fuel Tank Truck

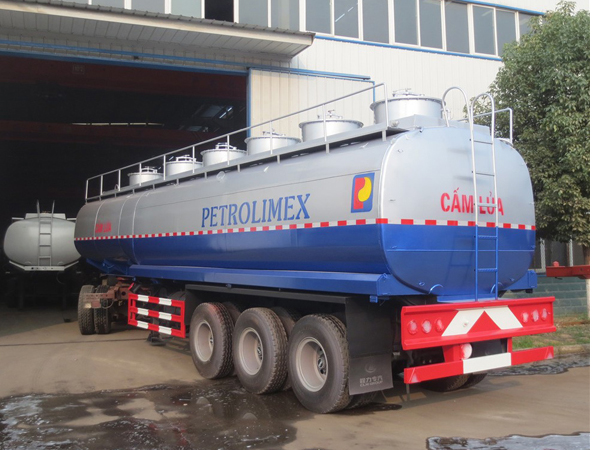

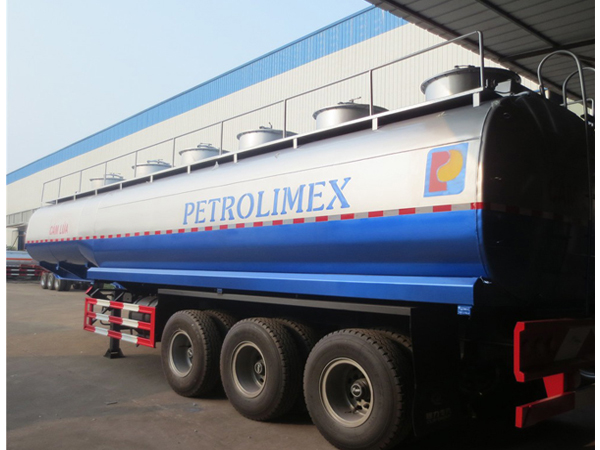

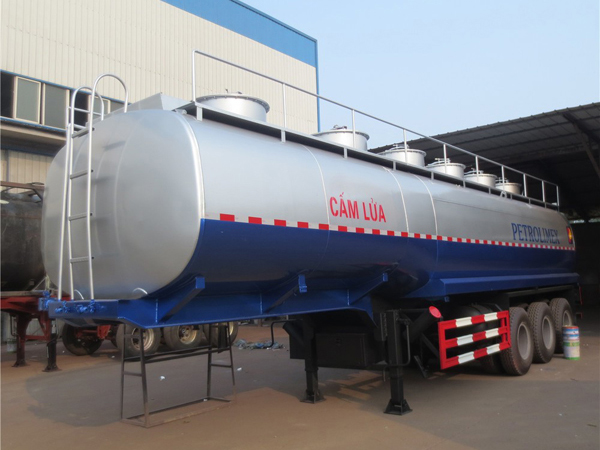

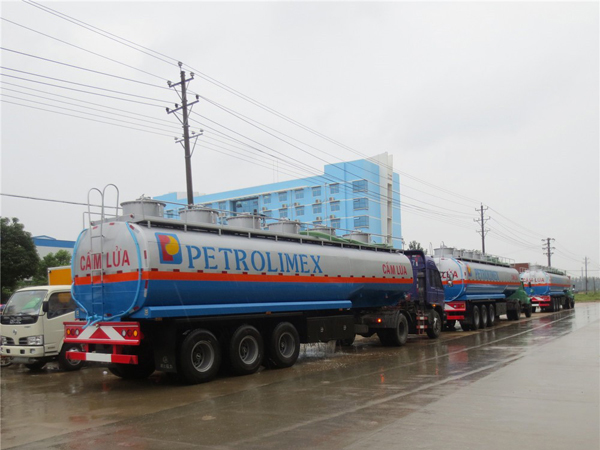

45000liters Carton Steel 3 Fuwa Axle 6 compartment Fuel Oile Tanker Semi Trailer With Jost loading legs and Kingpin
  • 45000liters Carton Steel 3 Fuwa Axle 6 compartment Fuel Oile Tanker Semi Trailer With Jost loading legs and Kingpin
  • 45000liters Carton Steel 3 Fuwa Axle 6 compartment Fuel Oile Tanker Semi Trailer With Jost loading legs and Kingpin
  • 45000liters Carton Steel 3 Fuwa Axle 6 compartment Fuel Oile Tanker Semi Trailer With Jost loading legs and Kingpin
  • 45000liters Carton Steel 3 Fuwa Axle 6 compartment Fuel Oile Tanker Semi Trailer With Jost loading legs and Kingpin
  • 45000liters Carton Steel 3 Fuwa Axle 6 compartment Fuel Oile Tanker Semi Trailer With Jost loading legs and Kingpin
  • 45000liters Carton Steel 3 Fuwa Axle 6 compartment Fuel Oile Tanker Semi Trailer With Jost loading legs and Kingpin
45000liters Carton Steel 3 Fuwa Axle 6 compartment Fuel Oile Tanker Semi Trailer With Jost loading legs and Kingpin
·         Chassis brand /

·         Product origin China, Hubei , Chengli

·         Delivery time around 7 working days

·         Supply capacity 3,000 units one year

Oil tanker semitrailer is composed of oil tanker body and running gear, etc, have the features of large volume and high economic benefit. Oil tanker semi trailer adopt high quality carbon steel and is welded by advanced automatic submerged arc welding and argon arc welding

Oil tanker semitrailer usually adopt China, European Standard or USA standard accessories, ensure oil tanker semitrailer quality; and after welding, make air tightness and water pressure test for each oil tanker, meanwhile, professional institutions supervision inspect and issue oil tanker semitrailer inspection report.
Description Get quotation

45000liters Carton Steel 3 Fuwa Axle 6 compartment Fuel Oile Tanker Semi Trailer With Jost loading legs and Kingpin

  Product origin China, Hubei , Chengli middot,Delivery time around 7 working days,Supply capacity 3,000 units one year Oil tanker semitrailer is composed of oil tanker body and running gear, etc, have the features of large volume and high economic benefit. Oil tanker semi trailer adopt high quality carbon steel and is welded by advanced automatic submerged arc welding and argon arc welding Oil tanker semitrailer usually adopt China, European Standard or USA standard accessories, ensure oil tanker semitrailer quality; and after welding, make air tightness and water pressure test for each oil tanker, meanwhile, professional institutions supervision inspect and issue oil tanker semitrailer inspection report.



GENERAL DESCRIPTION

Vehicle Brand

CLW

Overall Dimension(L x W x H)

12600x2500x3850mm

GVW./Kerb Weight

40000Kg/7800Kg.

TANK BODY

Tank Shape

Elliptical or rectangular

Tank Volume

45000ltrs +3% expansion space

Tank Material

5mm Carbon Steel Q235

End Cover and Baffles

6mm end covers. Each compartment with several inner baffles to reinforce the tank strength and prevent longitudinal surge during move.

Outlet Valve

4” ball valves fixed with cam-lock coupling in the unloading box

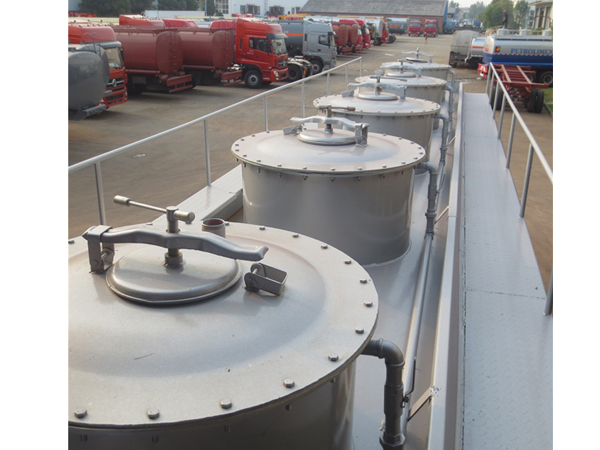

Manhole

European standard

Necessary Accessories

One European standard manhole, one aluminum alloy subsea valvesone or two discharge valve, two pieces fuel pipes, one tool box;  climbing ladder, top aluminum guardrail

CHASSIS

Heavy duty reinforced chassis with reinforced axle. The tank’s framework consists of two fabricated steel beams of high quality 16 Manganese steel. The two beams are fully welded all over their length on the tank. The beams are strongly connected with the cross members supporting the suspension and the kingpin upper coupler.

RUNNING GEAR

Axles

BPW/FUWA brand,etc. 3x13ton axles with double wheels

Landing Legs

JOST/FUWA brand 28tons

Suspension System

Steel spring suspension or air suspension

King Pin

JOST/FUWA brand,etc. 2 inch or 3.5 inch,bolted and welded type are optional

Tyre No.&Spec.

12 tires,11.00R20 ro 12R22.5

MUDGUARDS

Heavy duty mudguard rubber mud-flaps

BUMPERS

Side bumpers mounted between landing gear and first axle, rear bumper is Chinese standard

ELECTRIC SYSTEM

24V lighting system,electrical socket for lighting,rear lamp with parking,direction,fog,reverse, 4 side lights

PAINTING

with two anti-corrosive primer coats and two layer topcoat.
