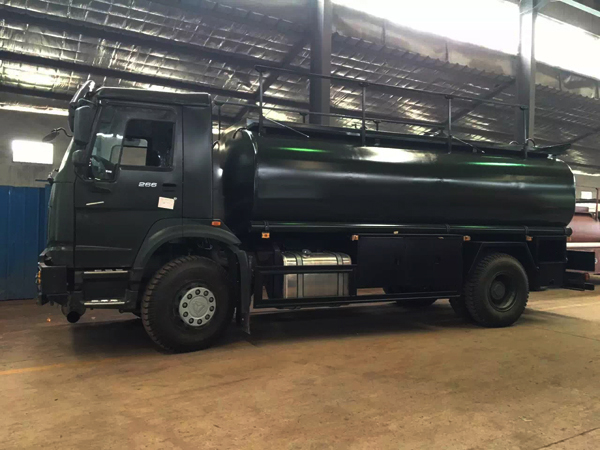

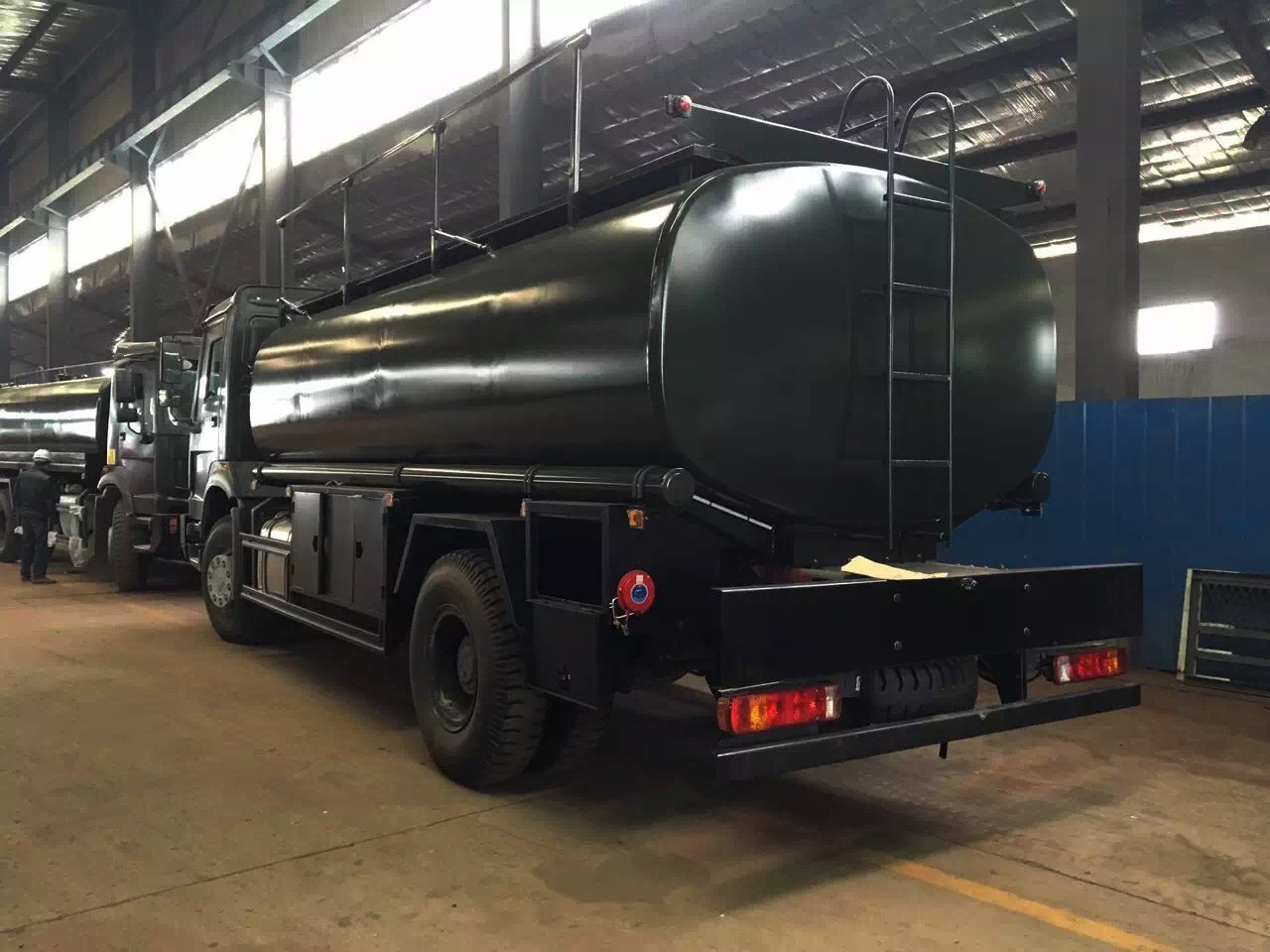

25000Liters Full Driver 270hp LHD Sinotruck HOWO Fuel Refilling Truck

Brand: HOWO

Drive type :6x6 LHD

Tanker materail:Q235R

Tanker volume:25000Liters

Fuel tank truck: according to the different types of transport medium, configuration and different places called, there are many different titles, such as tank car, tank truck, oil truck, oil supply car, oil puller, flow refueling car, tax control refueling car, computer tanker, diesel transporter, gasoline transporter, coal tar carrier, Lubricating oil transporters, edible oil transport vehicles, crude oil transporters, heavy oil transporters, oil tanker and so on.

All the tank trucks can be designed as chemical vehicles, all kinds of heating and insulation tanks; all the tank cars can be equipped with computer tankers; wide range of tonnage selection to meet the user‘s needs; the tank has multiple anti wave baffles. High pressure gas leakage test is used to make the tank body with high strength, stable center of gravity and safe and stable transportation of vehicles.

Description:

1. Tank material: we can provide carbon steel tanks, stainless steel tanks, manganese steel tanks, aluminum tanks, steel with plastic (or rubber) tanks and plastic tanks.

2. Good welding: tank body is adopted an advanced automatic vertical welding techniques and head arc butt welding technology, as well as the whole- steel forming a composite.

3. High safety: equip with active and passive emergency protection devices, to provide full closure remote manipulation of materials handing functions. Equip separators [Baffle] to prevent surging of liquid towards bulk head

4. Function: The tank body is suit for loading light fuel oil, heavy oil, sulfuric acid, hydrochloric acid, nitric acid, caustic soda hydrogen peroxide, alcohol, benzene, cooking oil and so on.

5. Oil pump: gear pump, self-absorption (centrifuge) pump, chemical pump, heavy, oil pump, stainless steel pump are optional.

6. Tank shape: shape of tank body can be designed to square round, round ,Heat insulation device such as heating pipes, insulation.

7. Refueling machine: the refueling machine we use are tax controlled oiling machine with accurate figure of volume, sum of money ,etc.

8. Optional: reading meter for outlet and inlet,self-discharge valve at rail or side of tank body, compartment quantity according to the demand.

Vechcile information list
Truck brand	HOWO
Truck model	ZZ2257N5857C1
Total mass	28000	Tanker volum	25000Liters
Rated mass	16990	Vechicle size	11968×2496×3180
Curb weight	12450	Cabin seat	3
A/D angle	31/12	F/R hang	1578/3190
Axles	3	Wheel base	5800+1400
Axles loading	7000/18000	Max speed	76
Groundclearance	530mm
Cabin	Flat cabin, with sleeper , electric glass, air condition,airbag 6x6 Left hand drive
Chassis information list
Chassis model	ZZ2257N5857C1
Tyre quantity	10	Tyre size	12.00-20
Leaf spring quantity	9/12	Front track	2022,2041
Fuel type	Diesel	Rear track	1830/1830
Standard	Euro III
Engine model	270HP Water cooled inline	Displacement/power	9726ml/199kw
Air brake ,Clutch booster,power steering,
Tanker
Tanker material	Carbon steel Q235
Tanker thickness	5mm
Pump	One unit
Warranty	1 years
Payment term	T/T ,30% advance,before shipment 70%
Delivery time	Produce time 10days
