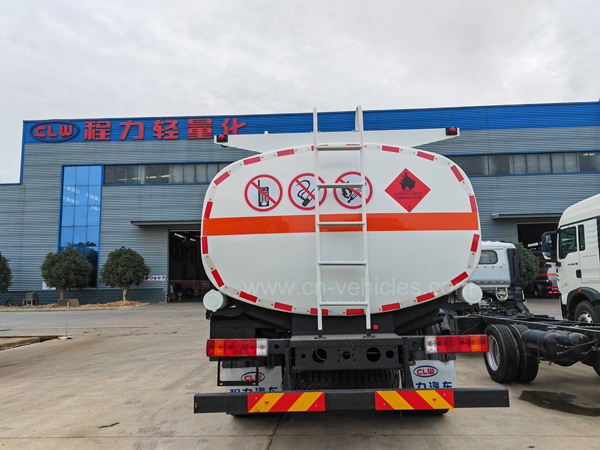

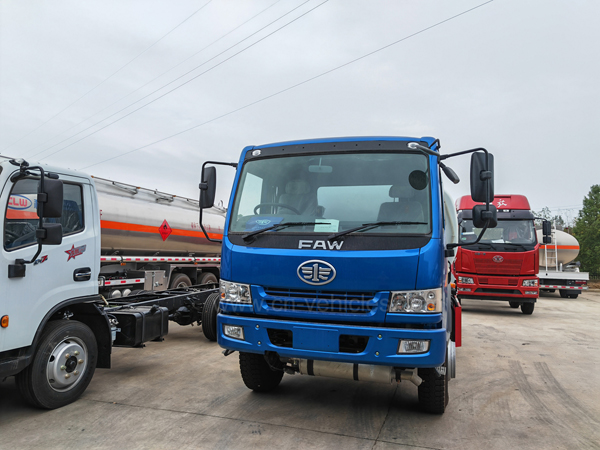

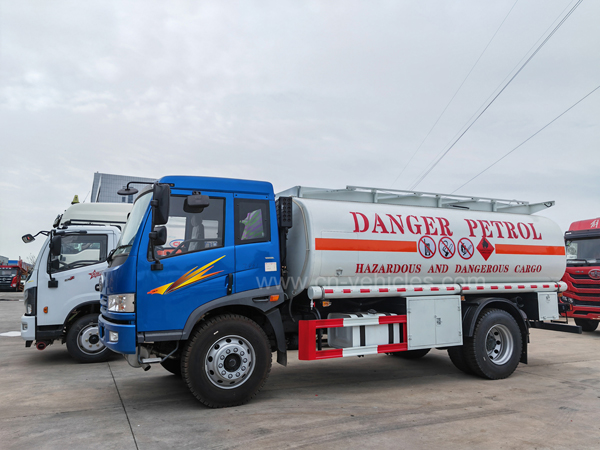

FAW 12cbm 4X2 Fuel Dispenser Tanker Petrol Oil Diesel Delivery and Refueling Tank Truck
This fuel tanker truck has been equipped with computer fuel dispenser. It could be used as the mobile filling station. Then the truck is with great flexibility. According to different needs, it is always used in city, suburb, mining plants, wharf, airport, bus station, country road, and many other places where there is no filling station. The fuel tanker truck has brought great convenience for people who have to get the station for the truck. And it actually can be called as the mobile filling station.
Description
Get quotation
FAW 12cbm 4X2 Fuel Dispenser Tanker Petrol Oil Diesel Delivery and Refueling Tank Truck
This fuel tanker truck has been equipped with computer fuel dispenser. It could be used as the mobile filling station. Then the truck is with great flexibility. According to different needs, it is always used in city, suburb, mining plants, wharf, airport, bus station, country road, and many other places where there is no filling station. The fuel tanker truck has brought great convenience for people who have to get the station for the truck. And it actually can be called as the mobile filling station.
Our compective advantage:
---- FAW chassis ensures perfect driving performance.
---- Japanese Top engine,super powerful; reliable performance.
---- Tank material has options of carbon steel, stainless steel, aluminum alloy…
---- Main fuel components available of international brands (ADR standard) - Civacon of OPW (America), EMCO Wheaton (America), DIXON (Europe)
---- Original American brand Tuthill Fill-rite electrical refueling pump and flow meter(mechanical or digital) available.
---- Bottom loading system including vapor recovery and overfill detection system can be equipped.
|
Truck Specification
|
|||
|
Truck model
|
CLW5120GYYQ
|
||
|
Cab
|
FAW
|
||
|
Driving Type
|
4*2 Left hand driving
|
||
|
Max Speed (km/h)
|
99
|
||
|
Overall dimension(mm)
|
5995*2190*2480
|
||
|
GVW(kg)
|
7300
|
||
|
Mass in working order(kg)
|
3540
|
||
|
Tank Capacity (L)
|
5000
|
||
|
Wheelbase(mm)
|
3308
|
||
|
F/R track base(mm)
|
1960/1855
|
||
|
F/R overhang(mm)
|
1110/2000
|
||
|
Approach/Departure Angel
|
17/13
|
||
|
Tire
|
7.00-16
|
||
|
Clutch
|
Single-plate dry diaphragm spring clutch
|
||
|
Steering
|
Hydraulic steering with power assistance
|
||
|
Gear box
|
MLD 5-speed
|
||
|
Bridge
|
Front axle
|
2.5T
|
|
|
Rear axle
|
4.8T
|
||
|
Enging
|
Model
|
4HK1
|
|
|
Fuel Type
|
Diesel fuel
|
||
|
Type
|
Water-cooled four-stroke,, direct injection, turbocharged
|
||
|
Exhaust(ml)
|
2777
|
||
|
Max output power/rotate speed (hp /rpm )
|
120
|
||
|
Max torque/rotate speed(N.m/rpm)
|
510
|
||
|
Braking system
|
Service Brake
|
Compressed air brake
|
|
|
Park Brake
|
Spring energy
|
||
|
Auxiliary brake
|
engine exhaust brake
|
||
|
Eletric system
|
24v
|
||
|
Upper-Body specification
|
|||
|
Volume of tank
|
5m3 6m3 8m3 10m3 12m3
|
||
|
Tank shape
|
Quadrate
|
||
|
Material of tanker
|
4mm carbon steel
|
||
|
Color of the tanker
|
According your demands
|
||
|
Transport medium
|
Diesel oil, gasoil or others
|
||
|

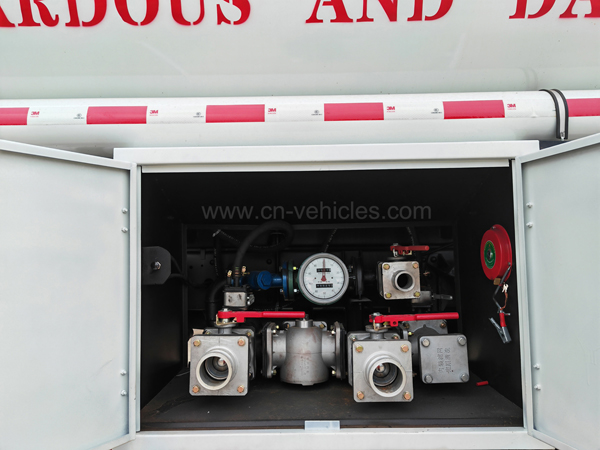

Fittings
|
PTO oil pump
|
||
|
An aluminum alloy European standard manhole
|
|||
|
Fuel hose box fitted on both side of tank
|
|||
|
An aluminum alloy sea valves
|
|||
|
Two Fire extinguisher
|
|||
|
One spare tyre
|
|||
|

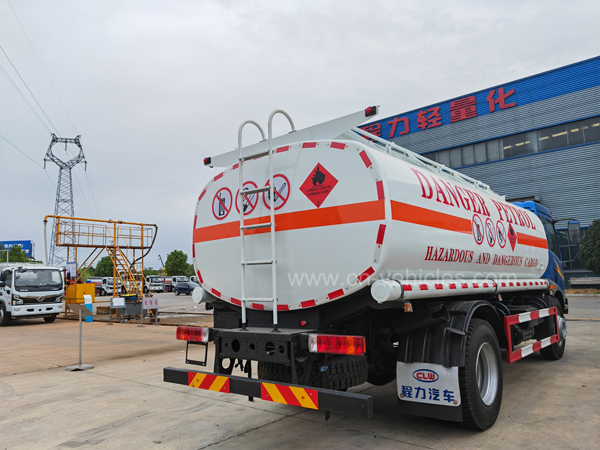

Ladder: For access to top of tank complete with cat walk on top of tank
|
|||
|
Heavy-duty rear bumper
|
|||
Related Products
-

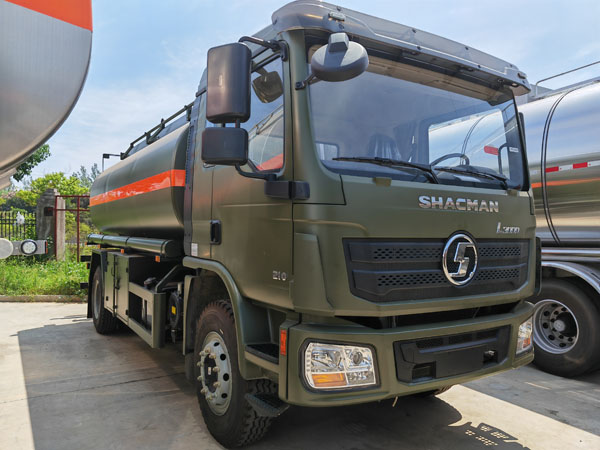

Shacman L3000 10000 Liters Refuel Fuel T... -

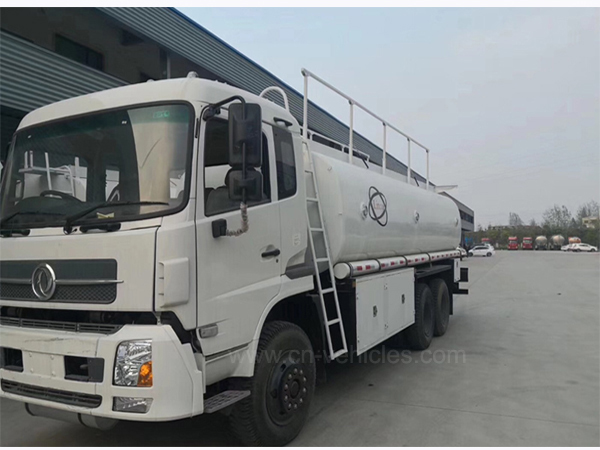

Dongfeng 6 Wheels KINGRUN 15000 Liter Re... -

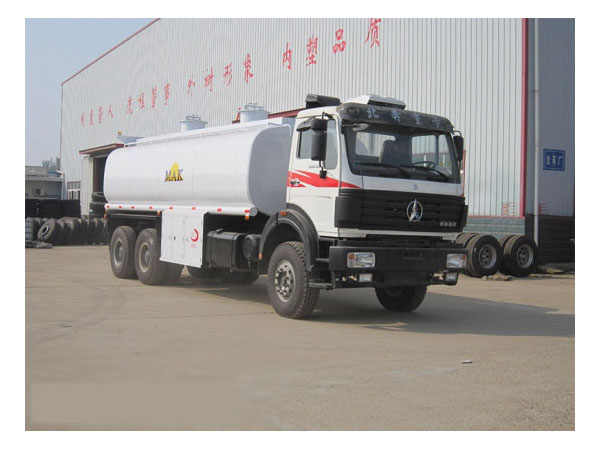

North BENS BEIBEN 25000 Liter Oil Fuel T... -
FOTON Auman 15000 Liter Diesel Oil Trans... -

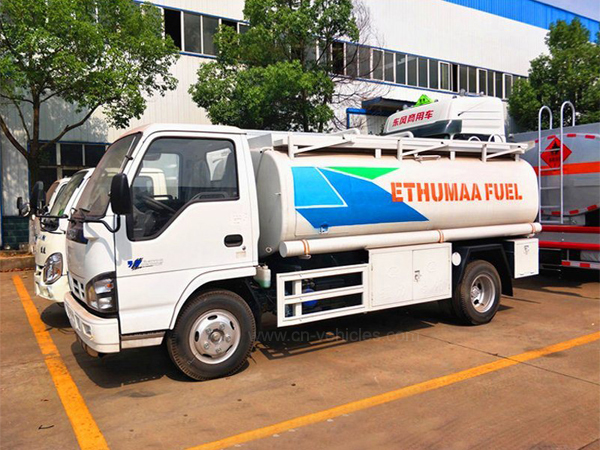

Brand New Isuzu 120HP 5cbm Fuel Dispense... -
10000L 15000liters Gallons Fuel Delivery... -

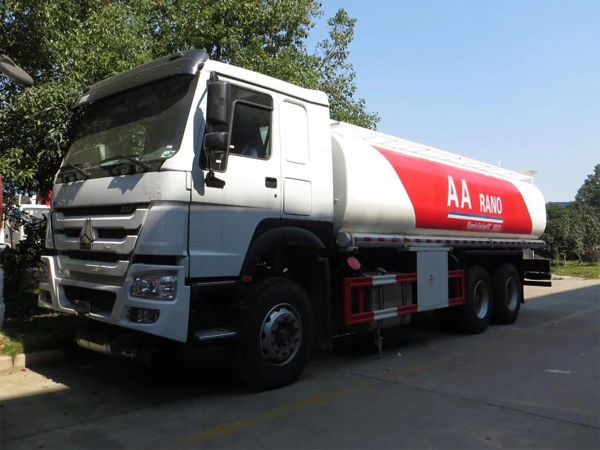

25cbm 25000 Liters Sinotruk HOWO Fuel Ta... -
Foton 8 Cubic Meter Fuel Tanker Refuelin... -

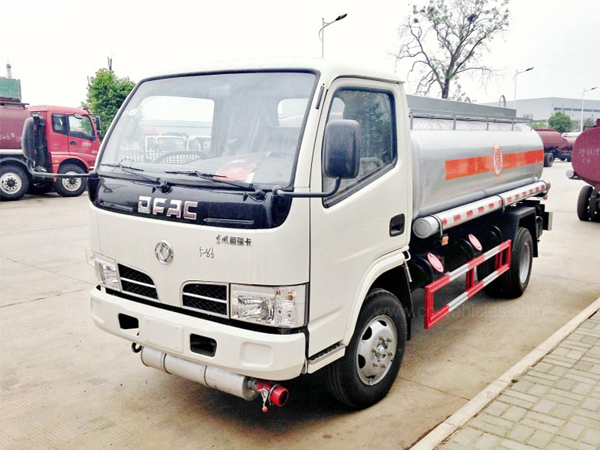

Dongfeng 5CBM Fuel Tank Truck
