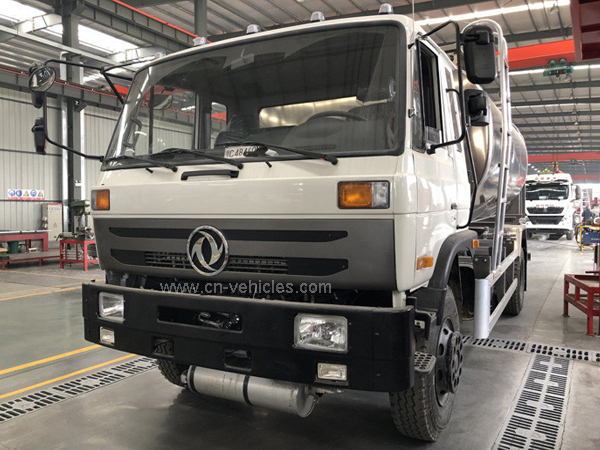

Dongfeng 6 Wheels KINGRUN 15000 Liter Refueler Truck For Sales
The fuel tank truck is equipped with oiling machine, fueling gun, sea valve,European standard tank mouth, shell cover, self-priming pump,gear pump,double pump,oil absorbing,transmission shaft,special gear pump,pipe system,out and in oil hole,attendant‘s cabinet,safeguard system and so on.
Description
Get quotation
Dongfeng dfac 15000 Liter Oil Fuel Tanker Transport Delivery Truck
According to your requires, we can do 3 compartments.,4 compartments,even 8 compartments.
The fuel tank truck is equipped with oiling machine, fueling gun, sea valve,European standard tank mouth, shell cover, self-priming pump,gear pump,double pump,oil absorbing,transmission shaft,special gear pump,pipe system,out and in oil hole,attendant‘s cabinet,safeguard system and so on.
Dongfeng dfac 25000 Liter Oil Fuel Tanker Transport Delivery Truck
Technical Date:
Dongfeng dfac 15000 Liter Oil Fuel Tanker Transport Delivery Truck
Technical Date:
| Truck Specification | |||
| Chassis model | CL5150GYYD3G | ||
| Cab | Dongfeng KINRUN cab, with power steering. | ||
| Driving Type | 4*2 Left hand driving | ||
| Max Speed (km/h) | 99 | ||
| Overall dimension(mm) | 8500*2480*3100 | ||
| GVW(kg) | 16000 | ||
| Mass in working order(kg) | 7805 | ||
| Tank Capacity (L) | 15000 | ||
| Wheelbase(mm) | 4700 | ||
| F/R track base(mm) | 1900/1800 | ||
| F/R overhang(mm) | 1205/2905 | ||
| Approach/Departure Angel | 25/14 | ||
| Tire | 10.00R20 (6+1) | ||
| Clutch | Single-plate dry diaphragm spring clutch | ||
| Steering | Hydraulic steering with power assistance | ||
| Gear box | DF6S9000D | ||
| Bridge | Front axle | 6T | |
| Rear axle | 10T | ||
| Enging | Model | B190-33 | |
| Fuel Type | Diesel fuel | ||
| Type | Water-cooled four-stroke,, direct injection, turbocharged | ||
| Exhaust(ml) | 5900 | ||
| Max output power/rotate speed (hp /rpm ) | 190/2500 | ||
| Max torque/rotate speed(N.m/rpm) | 640/1500 | ||
| Braking system | Service Brake | Compressed air brake | |
| Park Brake | Spring energy | ||
| Auxiliary brake | engine exhaust brake | ||
| Eletric system | 24v | ||
| Upper-Body specification | |||
| Volume of tank | 15m3 | ||
| Tank shape | Quadrate | ||
| Material of tanker | 5mm carbon steel | ||
| Color of the tanker | According your demands | ||
| Equipment | Oil pump | ||
| Transport medium | Diesel oil, gasoil or others | ||
| Fittings | PTO oil pump | ||
| An aluminum alloy European standard manhole | |||
| Fuel hose box fitted on both side of tank | |||
| An aluminum alloy sea valves | |||
| Two Fire extinguisher | |||
| One spare tyre | |||
| Ladder: For access to top of tank complete with cat walk on top of tank | |||
| Heavy-duty rear bumper | |||
