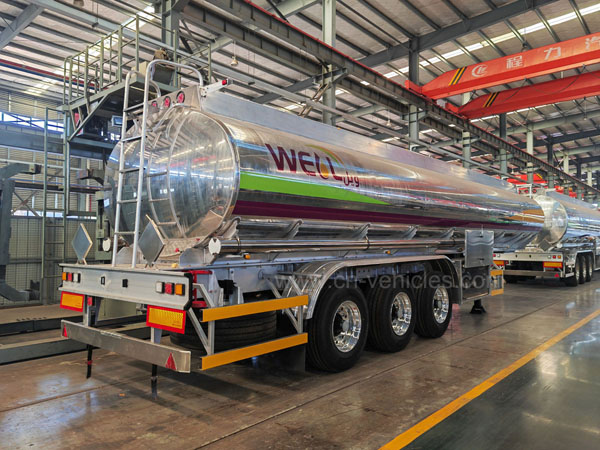

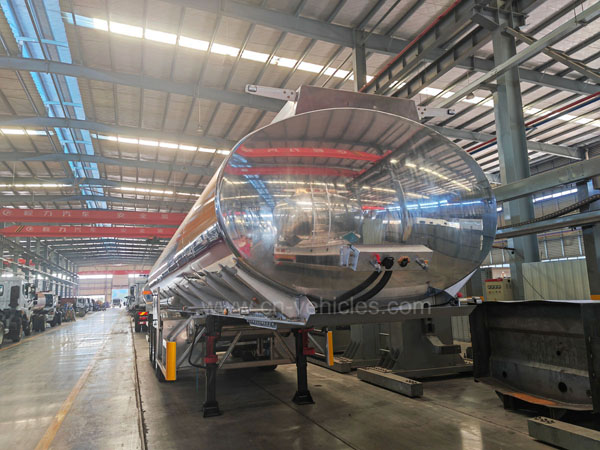

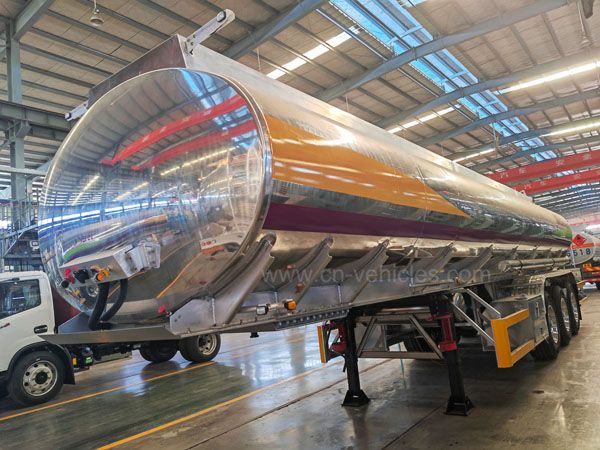

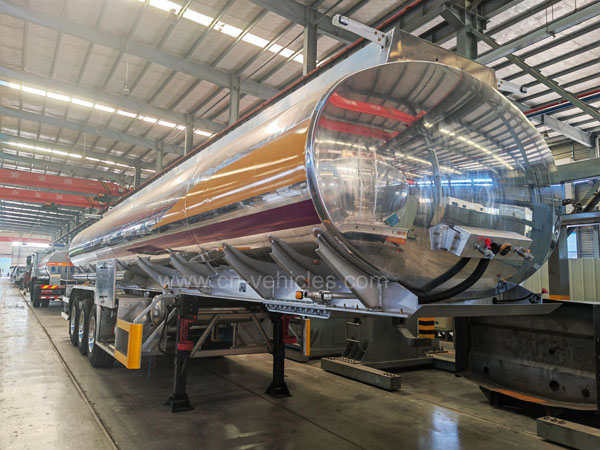

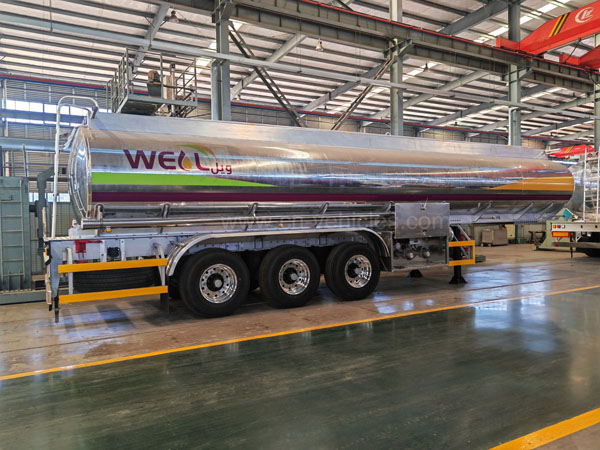

Saso Adr DOT Certificates 32cbm fuel tank aluminium fuel tanker China direct sales 32KL trailer aluminum tanker

1. Euro standard tank mouth: also known as manhole cover, installed on the top of the tank. Features built-in breathing and emergency exhaust. The folding guardrail can be raised or lowered for easy use.

2. YBottom loading system: including unloading valve, oil and gas recovery, subsea valve and other devices. Subsea valve automatically disconnects the line in an emergency to prevent leaks.

3. Safety device: Two fire extinguishers are equipped with the vehicle. The tail is equipped with an anti-static device to prevent accidents caused by static electricity during loading and unloading or transportation.

Description Get quotation

Saso Adr DOT Certificates 32cbm fuel tank aluminium fuel tanker China direct sales 32KL trailer aluminum tanker

2. YBottom loading system: including unloading valve, oil and gas recovery, subsea valve and other devices. Subsea valve automatically disconnects the line in an emergency to prevent leaks.

4. Fuel Dispenser: optional side mounted tanker or built-in tanker.

5. Speed limiter: special speed limiter, with intelligent chip control to limit the speed, high precision, stable and reliable performance. Does not affect the start of the big throttle, does not affect the torque. Just limit the top speed, lower the throttle but don‘t turn off the engine.

6. ABS: Make full use of the brakes. Shortening the braking time and distance can effectively prevent the vehicle from slipping and drifting during emergency braking. It can avoid the violent friction between the tire and the ground and reduce the wear of the tire.

7.Tank Body: high quality carbon steel or aluminum alloy (can be customized according to your needs). The tank body of the small tanker is 5mm thick. Above 15 square meters, the thickness is 6mm. Tank body can be set up with compartments according to your needs.

Certificate	Have
Name	Aluminum Fuel Tanker
Capacity	32 cbm or 20cbm
Tank Material	Al5454H32
Vin	LA929VSG3NOCLW635
Manhole and quantity	CIVACON brand European standard aluminum alloy explosion-proof manhole 2pcs
Breathing valve	CIVACON aluminum alloy material, 2 sets
Model	CLW9352GYYL
Bottom loading and unloading	CIVACON brand bottom loading port
Vapour recovery	CIVACON brand with vapour recovery system
Anti-overflow	CIVACON brand anti-overflow system
Safety foot valve	CIVACON brand aluminum alloy 4 inch submarine valve 2
Dump valve	Center right
Suspension	Leaf Spring
Tank top guardrail	Segmented lift guardrail, tank top anti-skid net
Hose storage box	Stainless steel hose box, 1 each left and right
Discharge hose	L=6000, 3 inch steel wire oil discharge pipe
Ladder outside the tank	Ladder inside the tank, ladder outside the tank
Toolbox	Aluminum alloy
Spare tire holder	1set
Fender	Factory equipped with aluminum alloy integral type (module stamping type)
Side guardrail	Factory equipped with aluminum alloy profiles
Rear bumper	Factory equipped with aluminum alloy profiles
Fire protection device	8kg fire extinguisher, 2 pieces in total
Anti-static device	1 static-conducting drag strip, 1 static-conducting terminal block
Lamps	24V system, 7-pin socket, LED lamps
Circuit system	Explosion-proof junction box.The rear bumper is equipped with turn signals, brake lights, reversing lights, running lights and fog lights.
Wire	All wires are sheathed with bellows.
Relay valve	WABCO
ABS	2-axle ‘WABCO‘ ABS
Tank inner surface	Cleaning
Paint natural	Polish
Color	Customized as you customer
