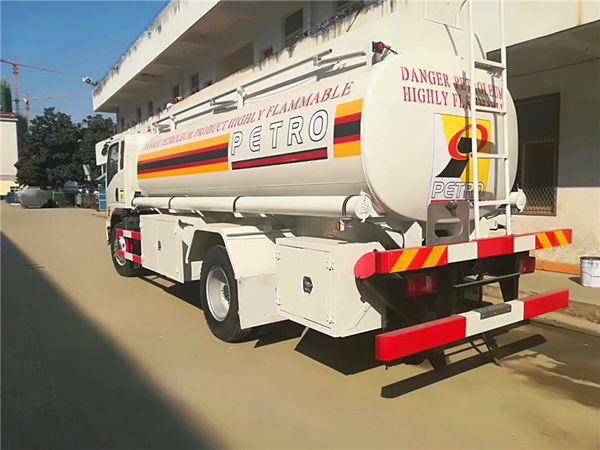

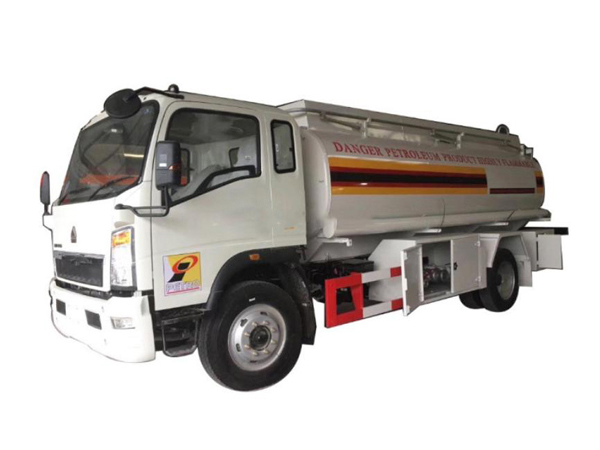

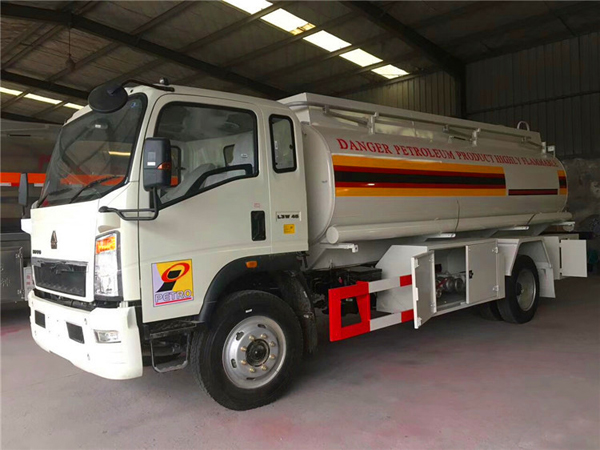

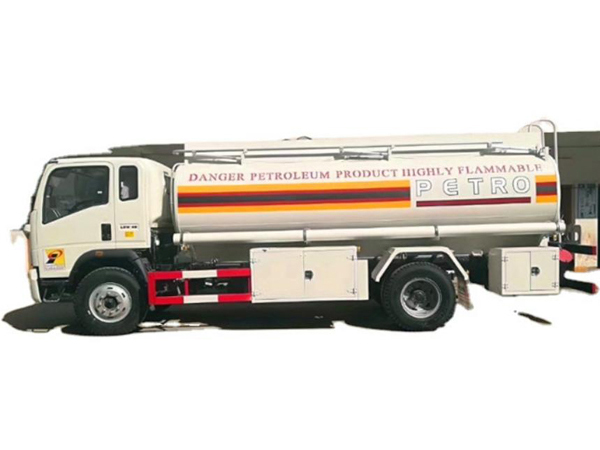

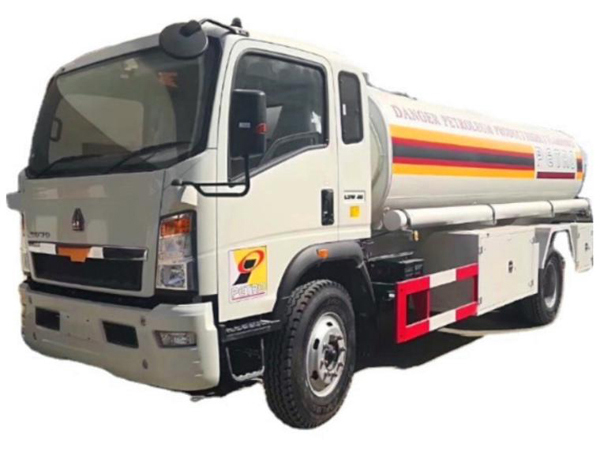

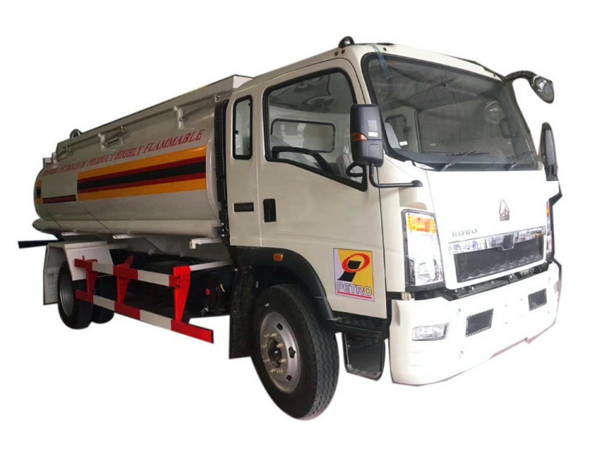

SINOTRUK HOWO 10000L Oil Tank Truck Fuel Dispenser Trucks for Sale

Oil tanker truck is also called Fuel Tanker Truck, petrol delivery truck, diesel hauling trucks, crude oil transport trucks, oil tank trailer, fuel tanker semi trailers, mobile oil tank trucks, etc., is used to transport or refuel oil, petrol, diesel, lubricant, crude oil and some chemical liquid, etc.

Description FEEDBACK

SINOTRUK HOWO 10000L Oil Tank Truck Fuel Dispenser Trucks for Sale



Oil tanker truck is also called Fuel Tanker Truck, petrol delivery truck, diesel hauling trucks, crude oil transport trucks, oil tank trailer, fuel tanker semi trailers, mobile oil tank trucks, etc., is used to transport or refuel oil, petrol, diesel, lubricant, crude oil and some chemical liquid, etc.



Optional tank capacity: 3,000 - 35,000 liters for oil tank truck; 30,000 - 60,000 liters for oil tank semi trailer



Optional truck brand: DFAC, JAC, JMC, HOWO, FAW, SHACMAN, YUEJIN, FOTON, North Benz, etc.



Optional wheel drive: 4x2, 4x4, 6x4, 6x4, 8x4, left hand drive or right hand drive.

1. Oil tanker trucks mainly include truck chassis, oil tanker, piping system, manhole, vapor recovery system, manifold system, API valve, emergency valve, etc.



2. Tank materials: Optional for carbon steel, stainless steel and aluminum alloy material. With multiple baffle plates in the tank, it has the advantages of high intensity, stability, transporting safety etc.



3.Tank shape: Optional for round square, oval, and round;



4. According to users‘ needs, the tank can be designed as single compartment or several compartments to contain different kinds of oil or chemicals.



5.Oil pump: Users can choose centrifugal pumps, gear pump, copper gear pump, or stainless steel pump according to actual needs. It has advantage of big flow, high suction pressure and speed.



Main Specification

Product Name

HOWO fuel tank truck 10000liters

Truck model

CLW5110GJYZ3

Driving Type

 4×2, Left/right hand drive

Weights

Max.Payload (kg)

10000

Curb weight(kg)

5500

Dimensions

Wheelbase (mm)

4500

Overall Dimension (mm)

Approx.7900×2500×2650

Box dimension

10000liters

Engine

 Engine Model

YC4E160 -33(160HP)

Engine type

4 stroke water-cooled, Inter-cooling,Turbocharged

Displacement (L)

4.257L

Rated power Rev ((Kw/rpm)

118kw/2600rpm

Max Torque (N*m)/Rev (rpm)

600N.m/1200-1600rpm

Emission standard

EURO 2

 Drive Line

Transmission

DC6J65TC ,6 forwards, 1 reverse gear, manual operation

Steering

With power steering

Brake system

Air brake

Cab

Cab

one and half row, Howo cabin, A/C optional

Axles



Front axle

3.2 tons

Rear axle

8 tons

Tire specification

Tire specification

8.25R20 standard tire,6 tires+1 spare tire

Specification of Fuel truck

Tank capacity

10000liters,one compartment

Tanker material

Q235, carbon steel

Manhole

1 pcs manhole fixed on top of tank

Outlet and inlet

1 pcs outlet and 1 pcs inlet

Oil rope

2 pcs oil rope

Fire extinguisher

2 pcs 4kg fire extinguisher

Anti-static devices

Including ground towing, static line plate

Pump

Equipped Oil pump (driven from gearbox by PTO)

Model:80YHCB-60

Flow:60m3/h

Pressure :0.6Mpa

Rotate Speed:970r/min
