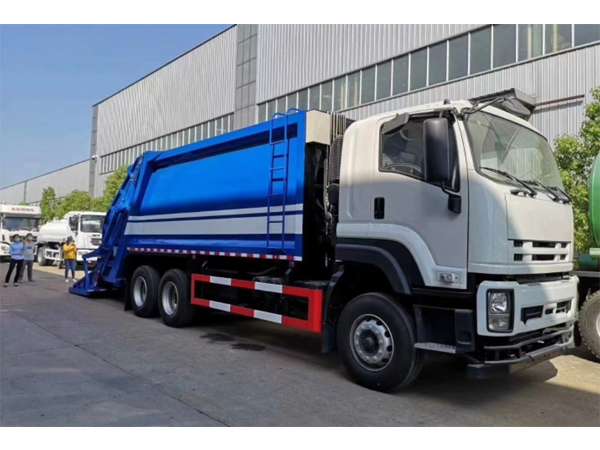

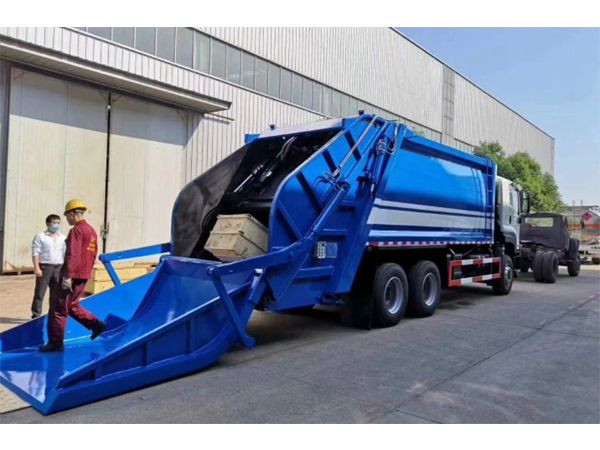

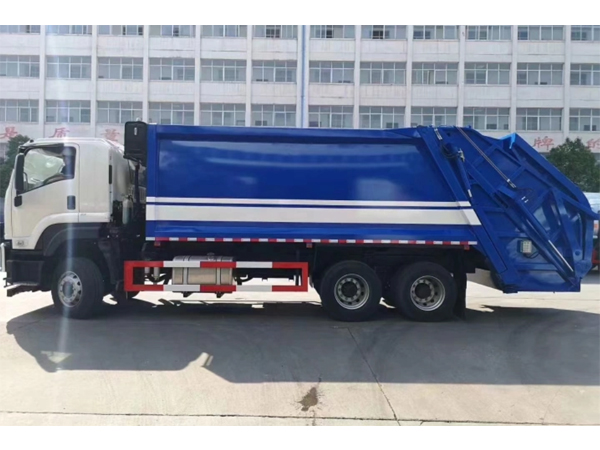

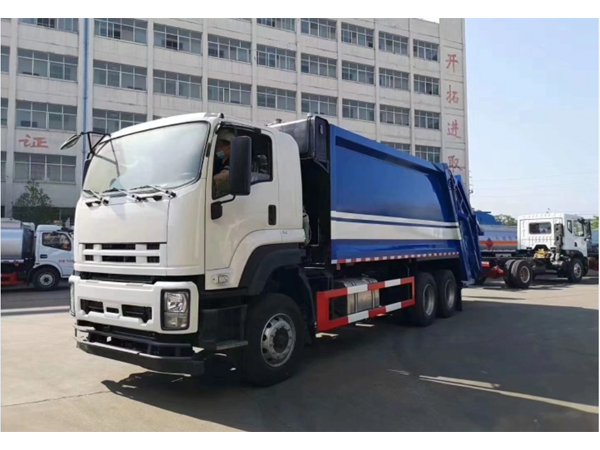

ISUZU Giga 20cbm Compactor Garbage Truck
The Isuzu Giga (Japanese: いすゞ・ギガ) is a line of heavy-duty commercial vehicles produced by Isuzu since 1994
Compactor garbage truck made by Chengli Special Automobile Co.,Ltd who is a autos manufacturer in central China, established in 2004
Description
Get quotation
ISUZU Giga 20cbm Compactor Garbage Truck
The Isuzu Giga (Japanese: いすゞ・ギガ) is a line of heavy-duty commercial vehicles produced by Isuzu since 1994
Compactor garbage truck made by Chengli Special Automobile Co.,Ltd who is a autos manufacturer in central China, established in 2004
Garbage compactor (also called waste compactor truck, garbage compactor truck, trash compactor, refuse collection truck, compactor garbage truck,rubbish truck, bin wagon, dustcart, bin lorry, waste collection vehicle) is designed to collect and transport municipal solid waste.
Garbage compactor is composed of hermitical garbage box, hydraulic system and operating system, which could apply pressure to the waste to break down bulky items, to load and transport more garbage by one time. Dirty liquid flows into waste sink, perfectly preventing repollution. When arriving at destination, the garbage can be dumped completely. It is ideal solution for solid waste collection.
|
Specification of ISUZU Giga 20cbm Compactor Garbage Truck
|
||
|
Driving Model
|
ISUZU 6X4 Garbage Collector Truck
|
|
|
Vehicle Main Dimensions
|
(L x W x H)mm
|
10100*2496*3560
|
|
Wheel base (mm)
|
4235+1350
|
|
|
Wheel track (front/rear) (mm)
|
1500/2900
|
|
|
Approach/Departure angle(°)
|
16/10
|
|
|
Weight in KGS
|
Pay Loading
|
8900
|
|
Curb Weight
|
16600
|
|
|
Max. driving speed(km/h)
|
90
|
|
|
Engine
|
Brand
|
ISUZU
|
|
Model
|
6UZ1-TCG50
|
|
|
Type
|
4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling
|
|
|
Horse Power
|
380(HP)
|
|
|
Emission standard
|
Euro V
|
|
|
Displacement
|
9726ml
|
|
|
Max. Output Power
|
247kw
|
|
|
Gearbox
|
10 forwards& 2 reverse
|
|
|
Clutch
|
Reinforced diaphragm clutch, diameter 430mm
|
|
|
Tire
|
12.00-20 11 wheels including 1 spare.
|
|
|
Brakes
|
Service brake: dual circuit compressed air brake Parking brake:(emergency brake): spring energy, compressed air operating on rear wheels
|
|
|
Steering Gear
|
power steering, hydraulic steering with power assistance
|
|
|
Garbage Truck Body
|
||
|
Volume(M3)
|
20CBM
|
|
|
Material
|
Q235 carbon steel
|
|
|
Equipment
|
Equipped with hermetic dustbin, hydraulic system and operating system.
Automatic compress and uninstall, sewage can be collected by the dump tank. Cycling time<14--18s |
|
|
Thickness
|
Side 4mm Bottom 5mm
|
|
|
Uploading cycling time
|
<60s
|
|
|
Loading cycling time
|
≤30s
|
|
|
Lifting capacity of turnover mechanism
|
≥800KG
|
|
