Hyundai 3 Ton To 20 Ton Food Refrigerator Refrigerated Freezer Cooling Van Truck
Refrigerator truck is also called refrigerator truck, refrigerator wagon, refrigerated box truck,freezer wagon,temperature controlled truck,freezer truck. It is used to transport frozen or fresh goods, fresh Milk ,fresh vegetables and fruits, vaccine drugs etc. It is equipped with a refrigeration unit and polyurethane insulated van.
Description FEEDBACK

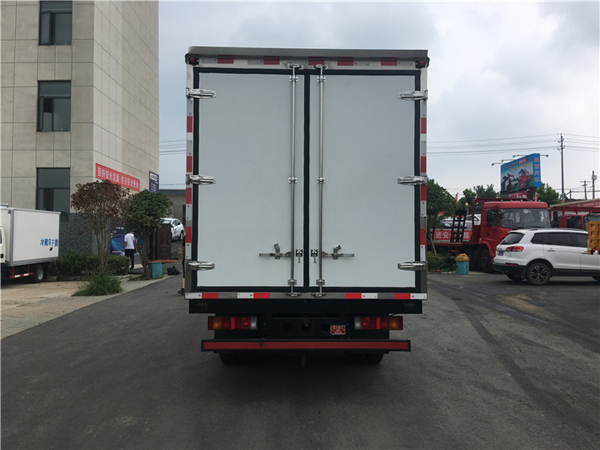

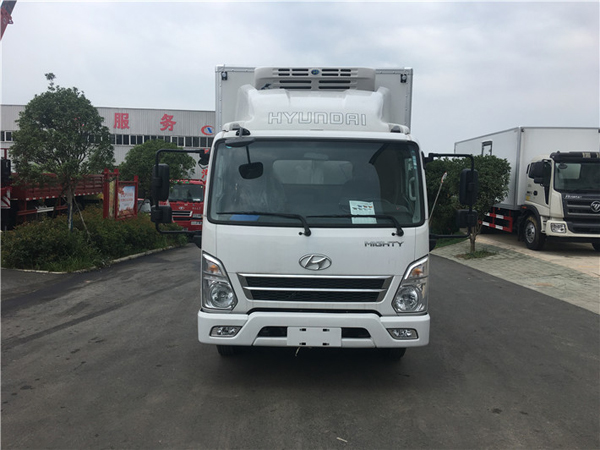

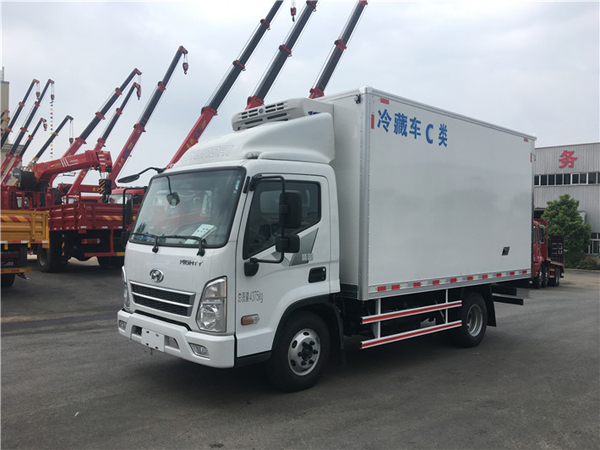

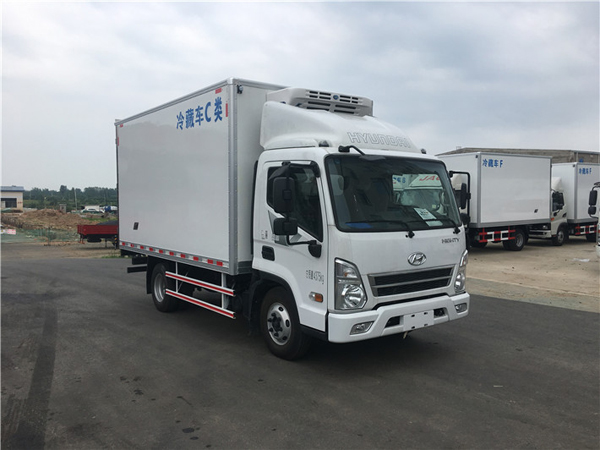

Hyundai 3 Ton To 20 Ton Food Refrigerator Refrigerated Freezer Cooling Van Truck

Refrigerator truck is also called refrigerator truck, refrigerator wagon, refrigerated box truck,freezer wagon,temperature controlled truck,freezer truck. It is used to transport frozen or fresh goods, fresh Milk ,fresh vegetables and fruits, vaccine drugs etc. It is equipped with a refrigeration unit and polyurethane insulated van.

Specification of wrecker

Item

Specification

Item

Specification

General

Truck Name

 wrecker

Overall Dimension (mm)

 7475×2300×2580

Truck Brand



Gross / Curb Weight (kg)

 7495/5360

Truck Model

 CLW5070TQZPXD

Rated Loading Weight(kg)



Cab



Cab Capacity

 3

Approach / Departure Angle (°)

 23/11

Front / Rear Overhang (mm)

 1125/2500

Front / Rear Axle Load (kg)

 2840/4655

Wheelbase (mm)

 3300

Number of Axles

 2

Max. Speed (km/h)

 110

Quantity of Tyre

Tyre Model

 7.50R16

Front  Wheel Tread (mm)

 1700,1720,1745

Rear Wheel Tread (mm)

 1630

Leaf Spring

 6/6+4,8/8+4,4/8+4

Traction System

 steering wheel

Chassis

Chassis Brand

 Hyundai

Chassis Model

  CHM1070GDC38V

Type of Fuel

 diesel

Emission Standard

 euro 3

Engine (Motor)

Model

Displacement (ml)

Max. Power (KW/hp)

Brand

 ISF3.8s5154

 3760

  115/156

 Cummins









Truck Body

Tank size

 4100*1840*1820

Cooling Unit

 -15
