Japan Isuzu 4-5tons Refrigeration Refrigerator Freezer Cargo Van Truck

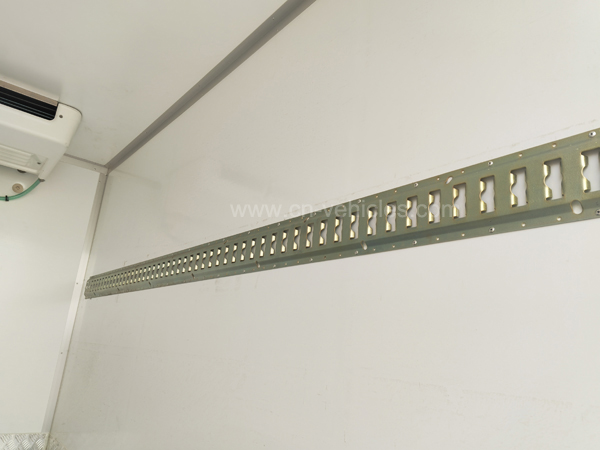

Refrigerator truck is mainly consisting of chassis, heat insulation box body, refrigeration unit, temperature recorders in the carriage. For special purpose, optional parts including meat hook, aluminum alloy rail, ventilation channel etc. According to the different chassis model, we have mini type, middle-sized, large-scale etc. refrigerator trucks for your choice with different brands.
Description
Get quotation
Japan Isuzu 4-5tons Refrigeration Refrigerator Freezer Cargo Van Truck
Refrigerator truck is mainly consisting of chassis, heat insulation box body, refrigeration unit, temperature recorders in the carriage. For special purpose, optional parts including meat hook, aluminum alloy rail, ventilation channel etc. According to the different chassis model, we have mini type, middle-sized, large-scale etc. refrigerator trucks for your choice with different brands.
|
Chassis Description
|
|
|
Cab
|
Single row cab with power steering, electronic flame-out, A/C
|
|
Color
|
Optional
|
|
Allowable person in cab
|
2/3
|
|
Wheel base (mm)
|
3360
|
|
Number of axles
|
2
|
|
Front axle
|
2000
|
|
Rear axle
|
4000
|
|
Traction system
|
4×2
|
|
Tire specification
|
7.00R16
|
|
Tire quantity
|
6+1
|
|
Engine Description
|
|
|
Fuel Type
|
Diesel
|
|
Engine model
|
4KH1CN5HS
|
|
Emission standard
|
Euro 5
|
|
Exhaust
|
2999ml
|
|
Horse power
|
130hp
|
|
Up-parts Description
|
|
|
Van box dimension(mm)
|
4200×1900×1800
|
|
Material of van box
|
Glass fiber reinforced plastics
|
|
Insulation thickness(mm)
|
80
|
|
Refrigeration units
|
THERMO KING RV-380
|
|
Type
|
Independent unit
|
|
Temperature setting range
|
-25ºC-+30ºC
|
|
Refrigerant Type
|
R404A
|
|
Refrigerant Filling quantity (kg)
|
1.8
|
|
Compressor Model
|
TK16
|
|
Refrigerating Capacity (w) mbient temperature 30ºC (A.T.P.)
|
0ºC 4050/ -25ºC 2300
|
